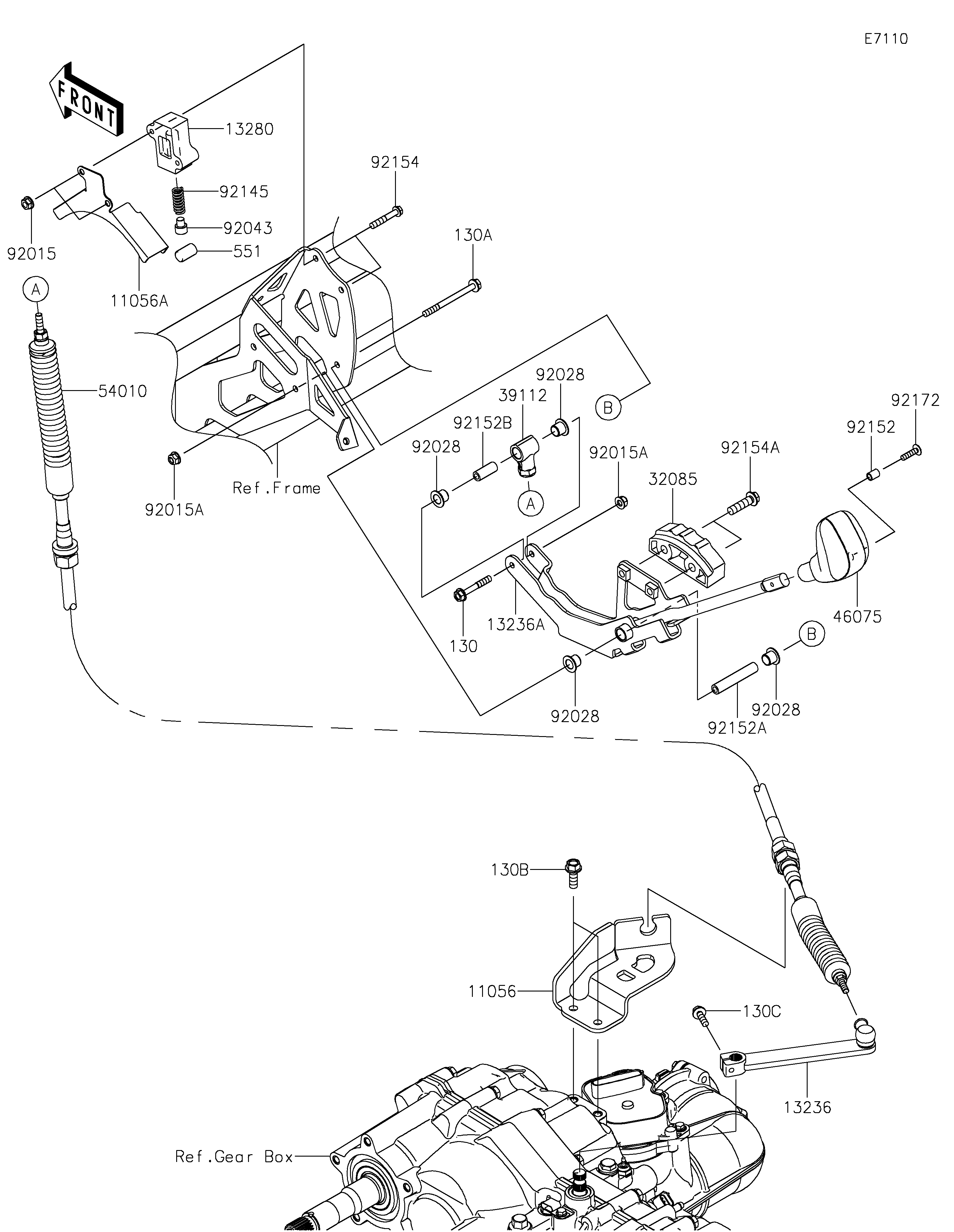

2019 MULE PRO-DXT™ EPS DIESEL - Control

DOWNLOAD PDF
SELECT A NEW PART
11056
11056A
130
130A
130B
130C
13236
13236A
13280
32085
39112
46075
54010
551
92015
92015A
92015A
92028
92028
92028
92028
92043
92145
92152
92152A
92152B
92154
92154A
92172
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,T/M SIDE 11056 11056-2946 1
BRACKET,DUST COVER 11056A 11056-7274 1
BOLT-FLANGED,6X40 130 130BA0640 1
BOLT-FLANGED,6X70 130A 130BA0670 1
BOLT-FLANGED,8X22 130B 130BA0822 2
BOLT-FLANGED,6X20 130C 130CA0620 1
LEVER-COMP,T/M SIDE 13236 13236-0747 1
LEVER-COMP,SHIFT 13236A 13236-0748 1
HOLDER 13280 13280-0776 1
STOPPER 32085 32085-0748 1
RODEND-TIE 39112 39112-0020 1
GRIP 46075 46075-0569 1
CABLE,SHIFT 54010 54010-0601 1
PIN-DOWEL,12X20 551 551R1220 1
NUT,FLANGED,6MM 92015 92015-1367 2
NUT,LOCK,FLANGED,6MM 92015A 92015-1675 2
BUSHING 92028 92028-1507 4
PIN 92043 92043-0790 1
SPRING 92145 92145-1578 1
COLLAR,5.6X8X10.5 92152 92152-1545 1
COLLAR,6X10X56.5 92152A 92152-1823 1
COLLAR,6X10X25 92152B 92152-1854 1
BOLT,FLANGED,6X35 92154 92154-1544 2
BOLT,FLANGED,8X30 92154A 92154-1907 2
SCREW,5X20 92172 92172-2081 1
