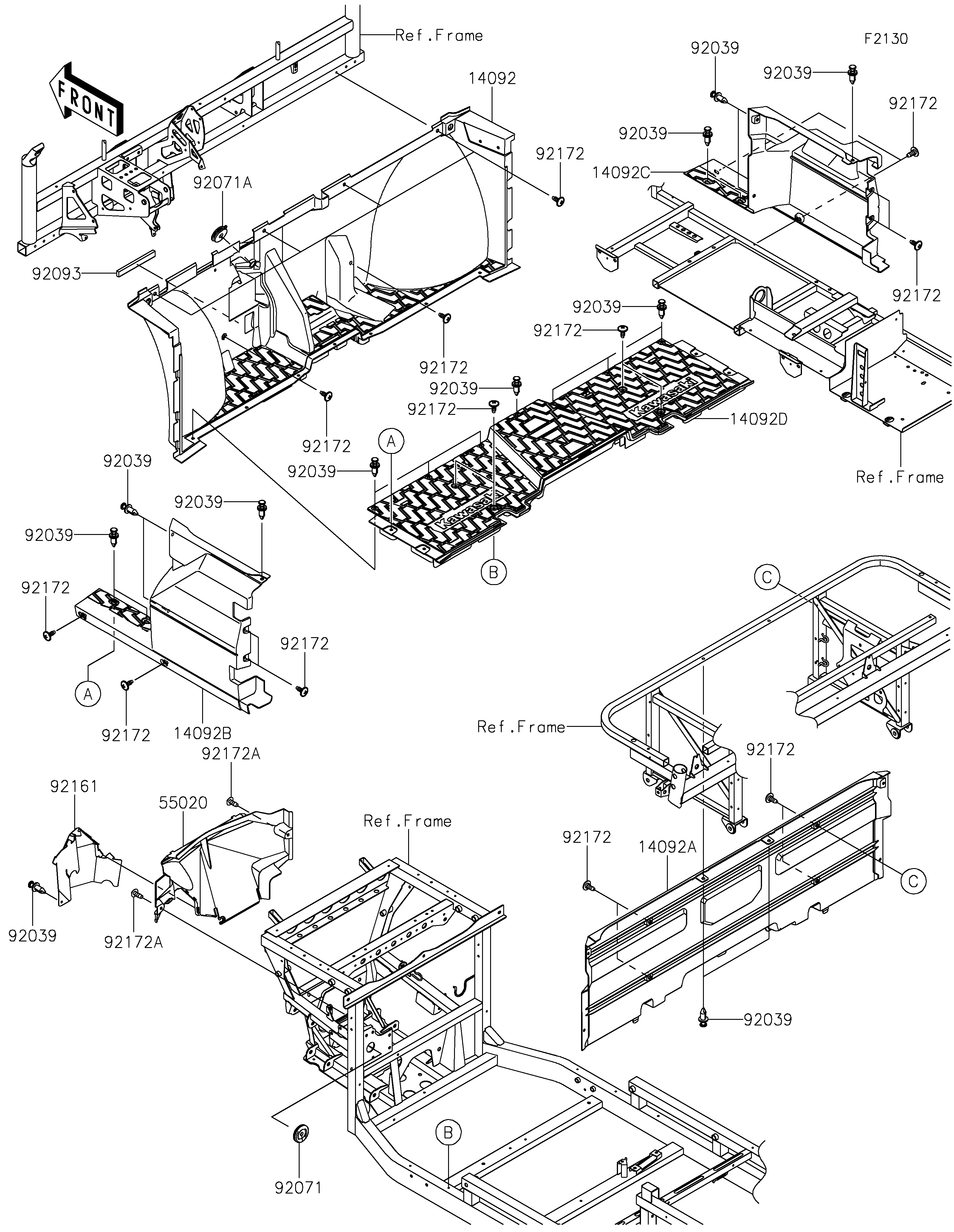

2019 MULE PRO-DXT™ EPS DIESEL - Frame Fittings(Front)
14092
14092A
14092B
14092C
14092D
55020
92039
92039
92039
92039
92039
92039
92039
92039
92039
92039
92039
92071
92071A
92093
92161
92172
92172
92172
92172
92172
92172
92172
92172
92172
92172
92172
92172
92172A
92172A
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| COVER,FR FLOOR | 14092 | 14092-1184 | 1 | ||
| COVER,FR SEAT | 14092A | 14092-1185 | 1 | ||
| COVER,SIDE,LH,FR | 14092B | 14092-1188 | 1 | ||
| COVER,SIDE,RH,FR | 14092C | 14092-1189 | 1 | ||
| COVER,FLOOR,BOTTOM | 14092D | 14092-1196 | 1 | ||
| GUARD | 55020 | 55020-0961 | 1 | ||
| RIVET | 92039 | 92039-0776 | 20 | ||
| GROMMET,9X45X9 | 92071 | 92071-0728 | 1 | ||
| GROMMET,8X22X8 | 92071A | 92071-0753 | 1 | ||
| SEAL,10X20X165 | 92093 | 92093-0617 | 1 | ||
| DAMPER | 92161 | 92161-1649 | 1 | ||
| SCREW,6X16 | 92172 | 92172-0711 | 22 | ||
| SCREW,TAPPING,6X16 | 92172A | 92172-0739 | 2 |
| COVER,FR FLOOR | |
| REF # | 14092 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER,FR SEAT | |
| REF # | 14092A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER,SIDE,LH,FR | |
| REF # | 14092B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER,SIDE,RH,FR | |
| REF # | 14092C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER,FLOOR,BOTTOM | |
| REF # | 14092D |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GUARD | |
| REF # | 55020 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RIVET | |
| REF # | 92039 |
|---|---|
| PART NUMBER | |
| QUANTITY | 20 |
| DESTINATION | |
| REMARKS | |
| GROMMET,9X45X9 | |
| REF # | 92071 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GROMMET,8X22X8 | |
| REF # | 92071A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SEAL,10X20X165 | |
| REF # | 92093 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| DAMPER | |
| REF # | 92161 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SCREW,6X16 | |
| REF # | 92172 |
|---|---|
| PART NUMBER | |
| QUANTITY | 22 |
| DESTINATION | |
| REMARKS | |
| SCREW,TAPPING,6X16 | |
| REF # | 92172A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
