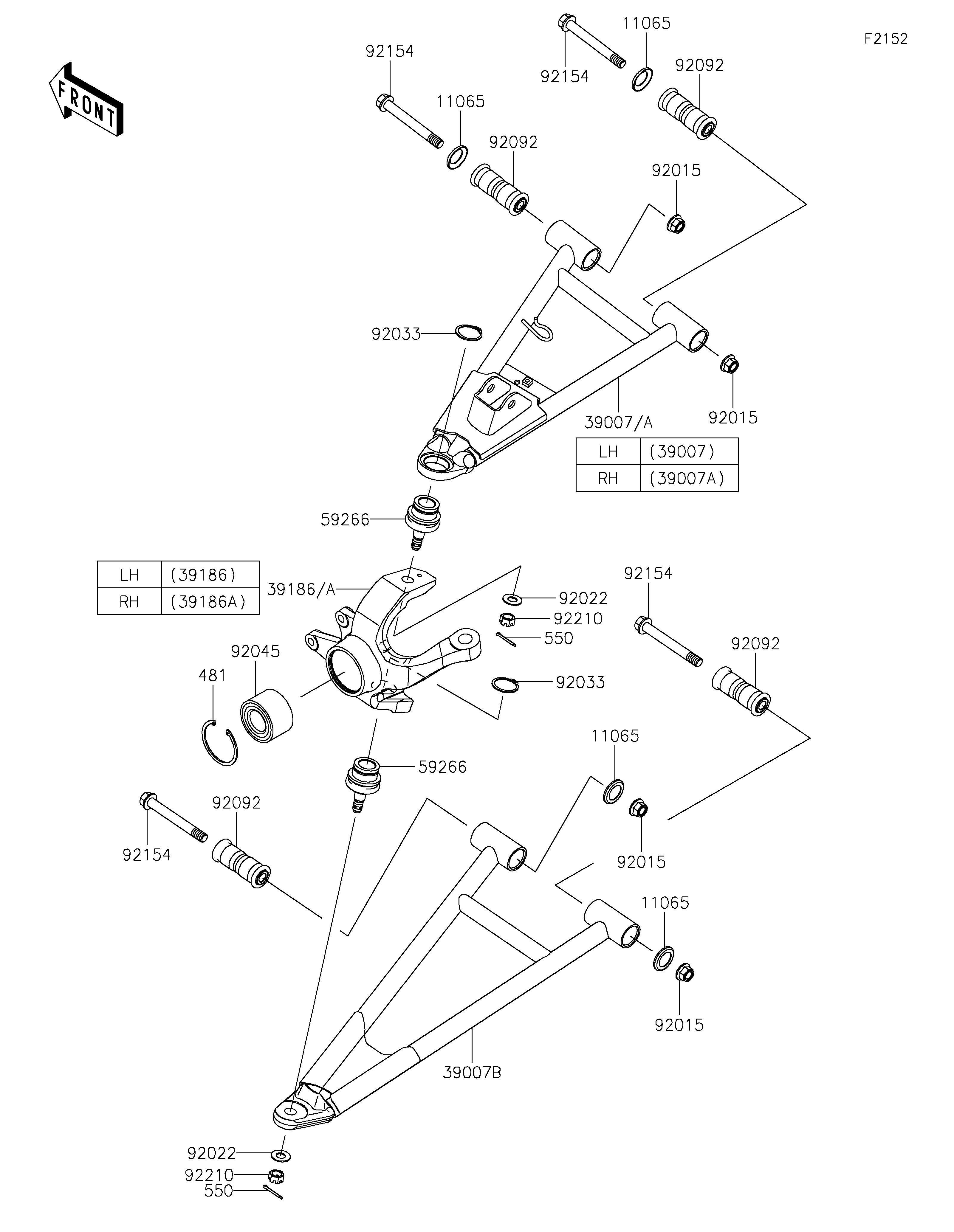

2019 MULE PRO-DXT™ EPS DIESEL - Front Suspension

DOWNLOAD PDF
SELECT A NEW PART
11065
11065
11065
11065
39007
39007A
39007B
39186
39186A
481
550
550
59266
59266
92015
92015
92015
92015
92022
92022
92033
92033
92045
92092
92092
92092
92092
92154
92154
92154
92154
92210
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAP,ARM 11065 11065-0838 8
ARM-SUSP,FR,UPP,LH 39007 39007-0377 1
ARM-SUSP,FR,UPP,RH 39007A 39007-0378 1
ARM-SUSP,FR,LWR,LH&RH 39007B 39007-0383 2
KNUCKLE,FR,LH 39186 39186-0319 1
KNUCKLE,FR,RH 39186A 39186-0320 1
CIRCLIP-TYPE-C 481 481J6000 2
PIN-COTTER,3.0X25 550 550AA3025 4
JOINT-BALL 59266 59266-0711 4
NUT,LOCK,FLANGED,12MM 92015 92015-1433 8
WASHER 92022 92022-1831 4
RING-SNAP,C-TYPE,32MM 92033 92033-1262 4
BEARING-BALL,30X60X37 92045 92045-0762 2
BUSHING-RUBBER,12X20X78 92092 92092-0028 8
BOLT,FLANGED,12X100 92154 92154-1318 8
NUT,CASTLE,12MM 92210 92210-0395 4
