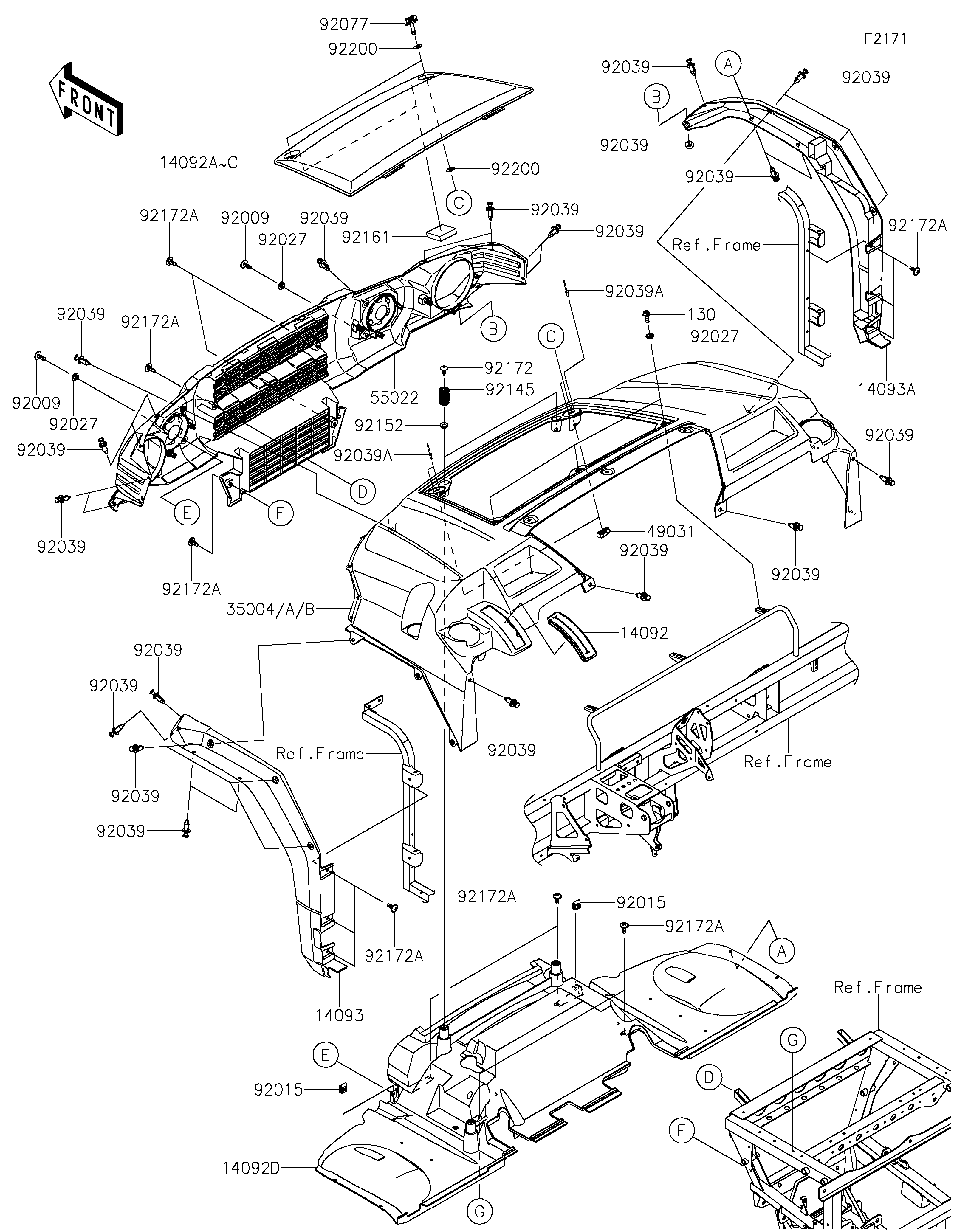

2019 MULE PRO-DXT™ EPS DIESEL - Front Fender(s)

DOWNLOAD PDF
SELECT A NEW PART
130
14092
14092B
14092C
14092D
14093
14093A
35004A
35004B
49031
55022
92009
92009
92015
92015
92027
92027
92027
92039
92039
92039
92039
92039
92039
92039
92039
92039
92039
92039
92039
92039
92039
92039
92039
92039
92039
92039A
92039A
92077
92145
92152
92161
92172
92172A
92172A
92172A
92172A
92172A
92172A
92172A
92200
92200
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X16 130 130CA0616 3
COVER,CENTER CONSOLE,TOP 14092 14092-0791 1
COVER,OPEN,B.WHITE 14092B 14092-1177-266 1
COVER,OPEN,T.GREEN 14092C 14092-1177-42S 1 _________________________________________US
COVER,TOP,FR INNER 14092D 14092-1194 1
COVER,SIDE,LH 14093 14093-0596 1
COVER,SIDE,RH 14093A 14093-0597 1
FENDER-FRONT,B.WHITE 35004A 35004-0335-266 1
FENDER-FRONT,T.GREEN 35004B 35004-0335-42S 1 _________________________________________US
LATCH 49031 49031-0008 2
COVER-HEAD LAMP 55022 55022-0304 1
SCREW,6X16 92009 92009-1621 2
NUT,CLAMP,6MM 92015 92015-1678 2
COLLAR,L=4.6 92027 92027-1168 5
RIVET 92039 92039-0776 28
RIVET,3.2X9.5 92039A 92039-0785 4
KNOB 92077 92077-0030 2
SPRING,17X65 92145 92145-1727 2
COLLAR 92152 92152-0140 2
DAMPER,40X40X10 92161 92161-1861 2
SCREW,6X16 92172 92172-0284 2
SCREW,6X16 92172A 92172-0711 14
WASHER 92200 92200-0503 4
