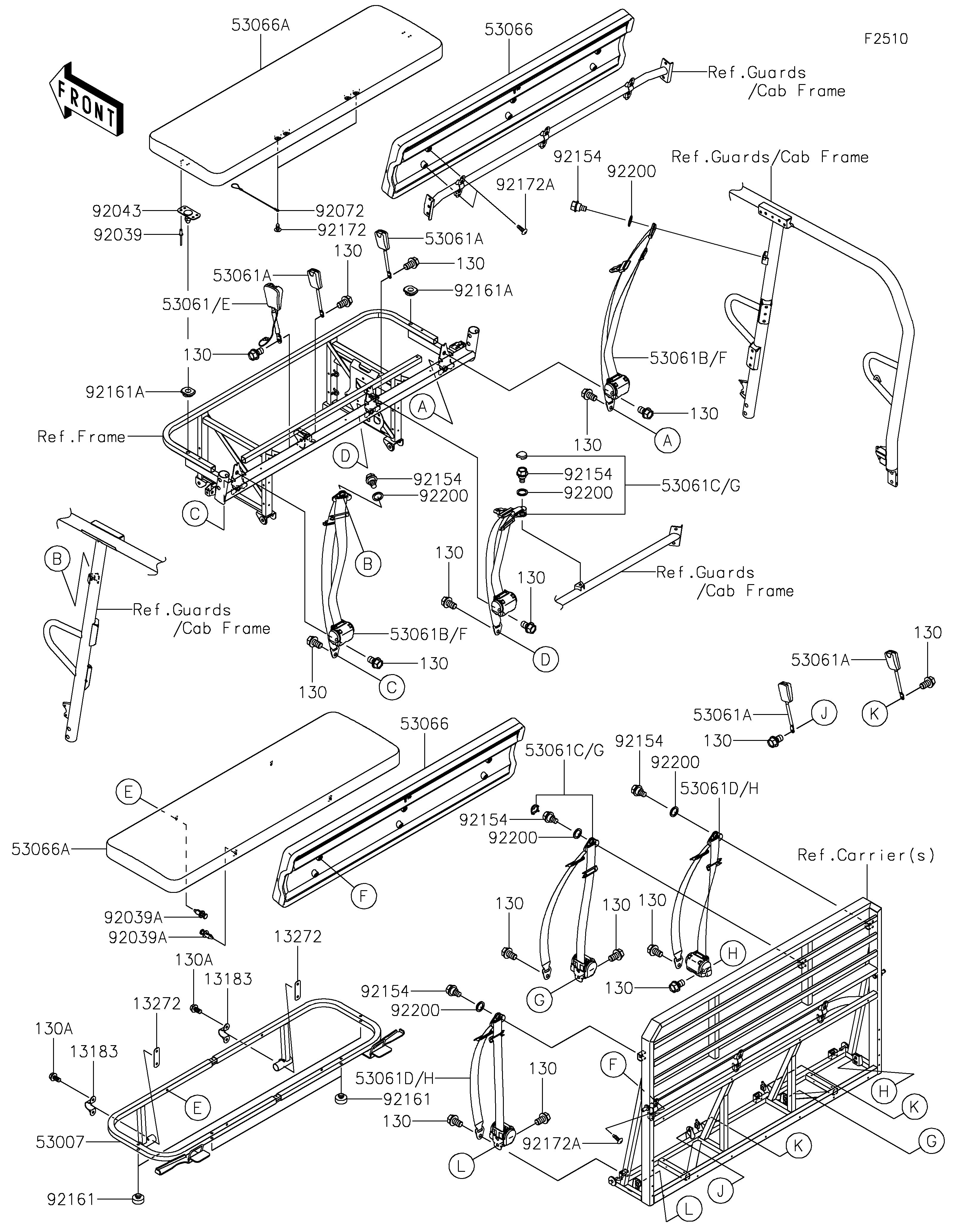

2019 MULE PRO-DXT™ EPS DIESEL - Seat

DOWNLOAD PDF
SELECT A NEW PART
130
130
130
130
130
130
130
130
130
130
130
130
130
130
130
130
130
130A
130A
13183
13183
13272
13272
53007
53061A
53061A
53061A
53061A
53061E
53061F
53061F
53061G
53061G
53061H
53061H
53066
53066
53066A
53066A
92039
92039A
92039A
92043
92072
92154
92154
92154
92154
92154
92154
92161
92161
92161A
92161A
92172
92172A
92172A
92200
92200
92200
92200
92200
92200
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,12X20 130 130BA1220 18
BOLT-FLANGED,8X16 130A 130CA0816 4
PLATE,SEAT 13183 13183-1400 2
PLATE 13272 13272-1699 2
FRAME-SEAT 53007 53007-0364 1
BELT-SEAT,BUCKLE 53061A 53061-0039 5
BELT-SEAT,BUCKLE,SW. 53061E 53061-0338 1
BELT-SEAT,FR,LH&RH 53061F 53061-0340 2
BELT-SEAT,MIDDLE 53061G 53061-0341 2
BELT-SEAT,RR,LH&RH 53061H 53061-0348 2
SEAT-ASSY,BACK,BLACK 53066 53066-0426-MA 2
SEAT-ASSY,BOTTOM,BLACK 53066A 53066-0495-MA 2
RIVET 92039 92039-0747 8
RIVET 92039A 92039-0776 4
PIN 92043 92043-0859 2
BAND 92072 92072-0769 2
BOLT,FLANGED,10X19.5 92154 92154-1959 6
DAMPER,SEAT 92161 92161-1065 4
DAMPER,10.5X30X8.2 92161A 92161-1784 2
SCREW,6X16 92172 92172-0284 2
SCREW,TAPPING,6X20 92172A 92172-0488 12
WASHER,16X22X2 92200 92200-1798 6
