53044
54005
54005A
54005B
54012
550
92043
92071
92071
92072
92072A
92192
92192A

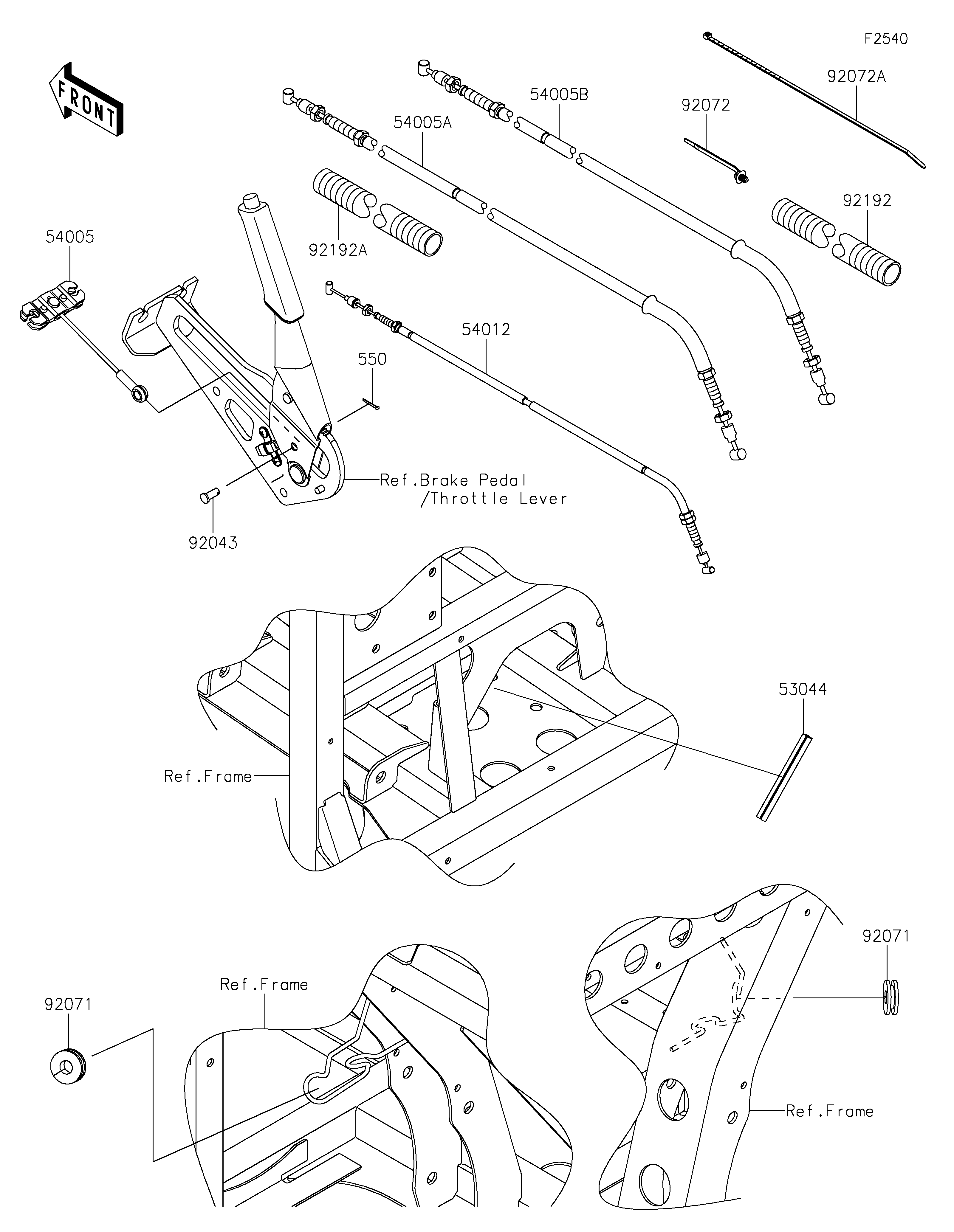

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
TRIM,L=111 53044 53044-7502 1
CABLE-BRAKE,PARKING,FR 54005 54005-0035 1
CABLE-BRAKE,PARKING,LH 54005A 54005-0039 1
CABLE-BRAKE,PARKING,RH 54005B 54005-0040 1
CABLE-THROTTLE 54012 54012-0633 1
PIN-COTTER,2.5X18 550 550AA2518 1
PIN 92043 92043-1039 1
GROMMET 92071 92071-0029 2
BAND,OS170-FT7(BLACK) 92072 92072-1414 9
BAND,L=292.1 92072A 92072-3509 7
TUBE,CONVOLUTED,25.1X30X260 92192 92192-1363 1
TUBE,CONVOLUTED,25.1X30X210 92192A 92192-1391 1
