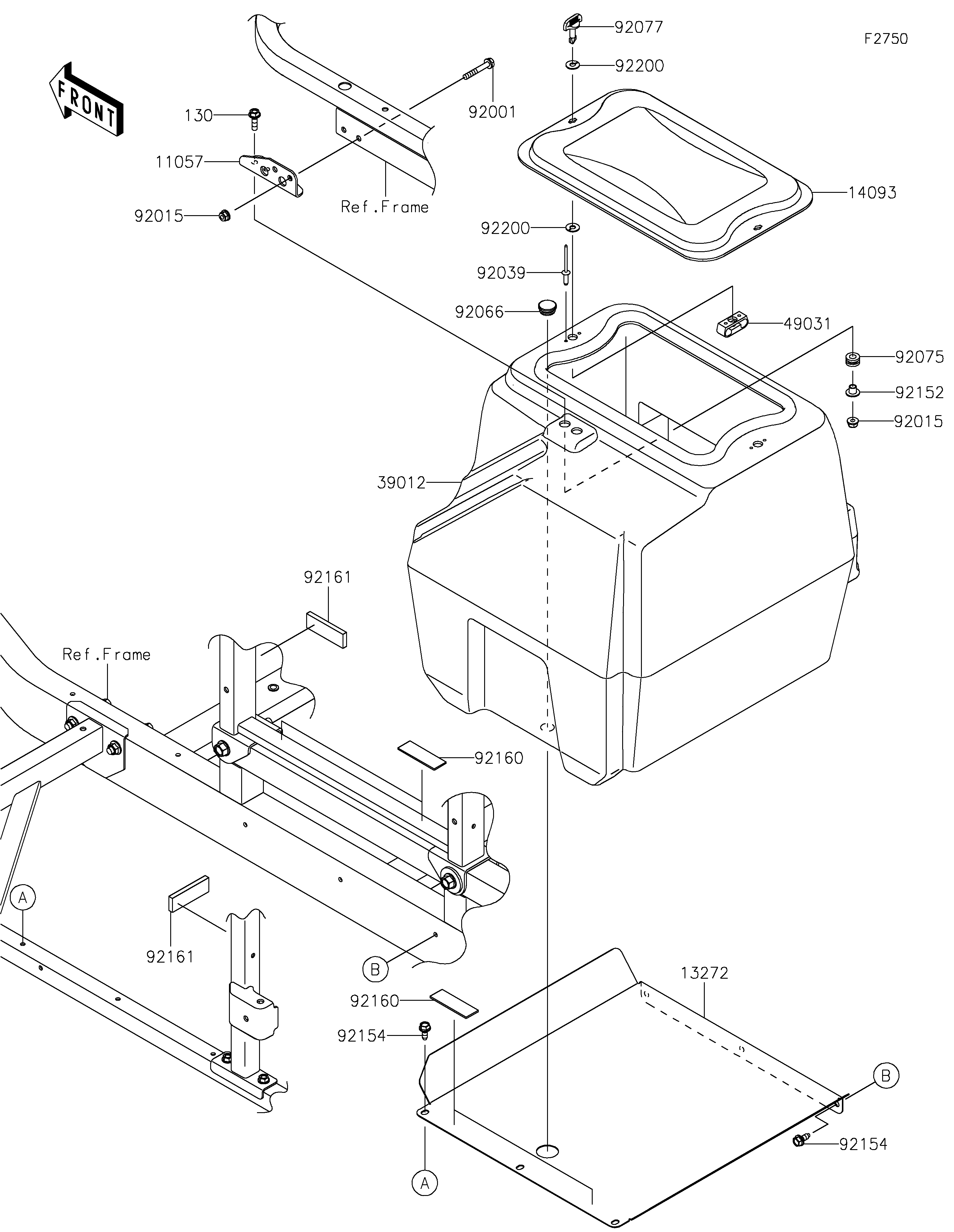

2019 MULE PRO-DXT™ EPS DIESEL - Other(BJF-BLF)

DOWNLOAD PDF
SELECT A NEW PART
11057
130
13272
14093
39012
49031
92001
92015
92015
92039
92066
92075
92077
92152
92154
92154
92160
92160
92161
92161
92200
92200
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,TUB MOUNT 11057 11057-1503 1
BOLT-FLANGED,6X20 130 130BA0620 2
PLATE,FLOOR BOTTOM 13272 13272-2205 1
COVER,STORAGE BOX 14093 14093-0523 1
CASE-STORAGE 39012 39012-0046 1
LATCH 49031 49031-0008 2
BOLT,FLANGED,6X38 92001 92001-1105 2
NUT,LOCK,FLANGED,6MM 92015 92015-1603 4
RIVET,3.2X9.5 92039 92039-0785 4
PLUG 92066 92066-1306 1
DAMPER 92075 92075-1912 2
KNOB 92077 92077-0030 2
COLLAR,6.3X8.3X9.2 92152 92152-0237 2
BOLT,6X15.6 92154 92154-1250 6
DAMPER 92160 92160-1075 4
DAMPER,20X60X6 92161 92161-1874 2
WASHER 92200 92200-0503 4
