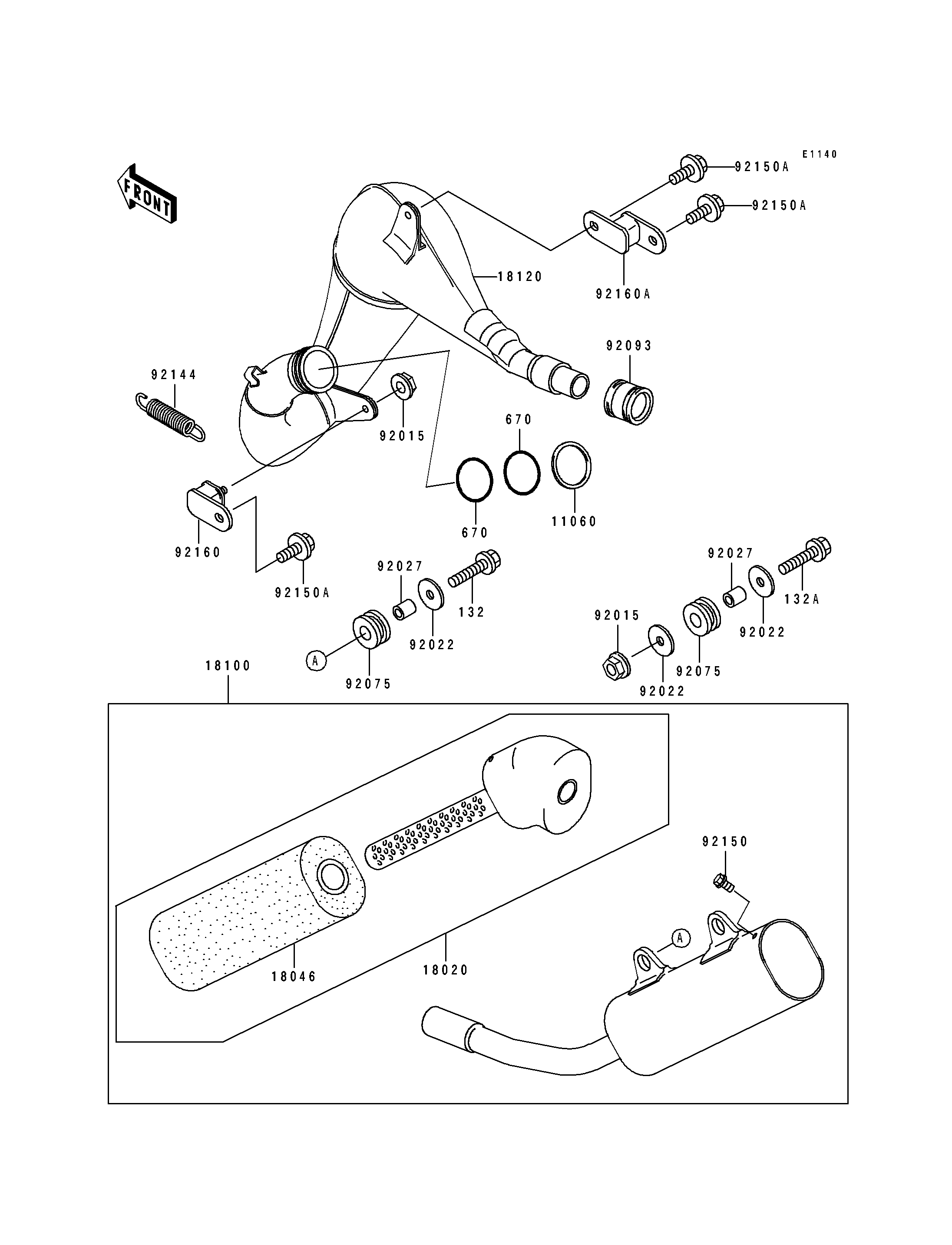

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED-SMALL 132 132G0625 1
BOLT-FLANGED-SMALL 132A 132G0635 1
O RING,39MM 670 670E3039 2
GASKET,EXHAUST PIPE 11060 11060-1370 1
BAFFLE 18020 18020-1236 1
WOOL,BAFFLE PIPE 18046 18046-1379 1
BODY-ASSY-MUFFLER 18100 18100-1071 1
CHAMBER-EXHAUST 18120 18120-1078 1
NUT,FLANGED,6MM 92015 92015-1078 2
WASHER,6.5X22X1.6 92022 92022-237 3
COLLAR,6.8X10X11.5 92027 92027-1210 2
DAMPER,MUFFLER FITTING 92075 92075-1857 2
SEAL,MUFFLER CONNECTING 92093 92093-1363 1
SPRING,EXHAUST CONNECTING 92144 92144-1470 2
BOLT,5X8 92150 92150-1406 4
BOLT,6X12 92150A 92150-1435 3
DAMPER,MUFFLER,FR 92160 92160-1176 1
DAMPER,MUFFLER,RR 92160A 92160-1201 1
