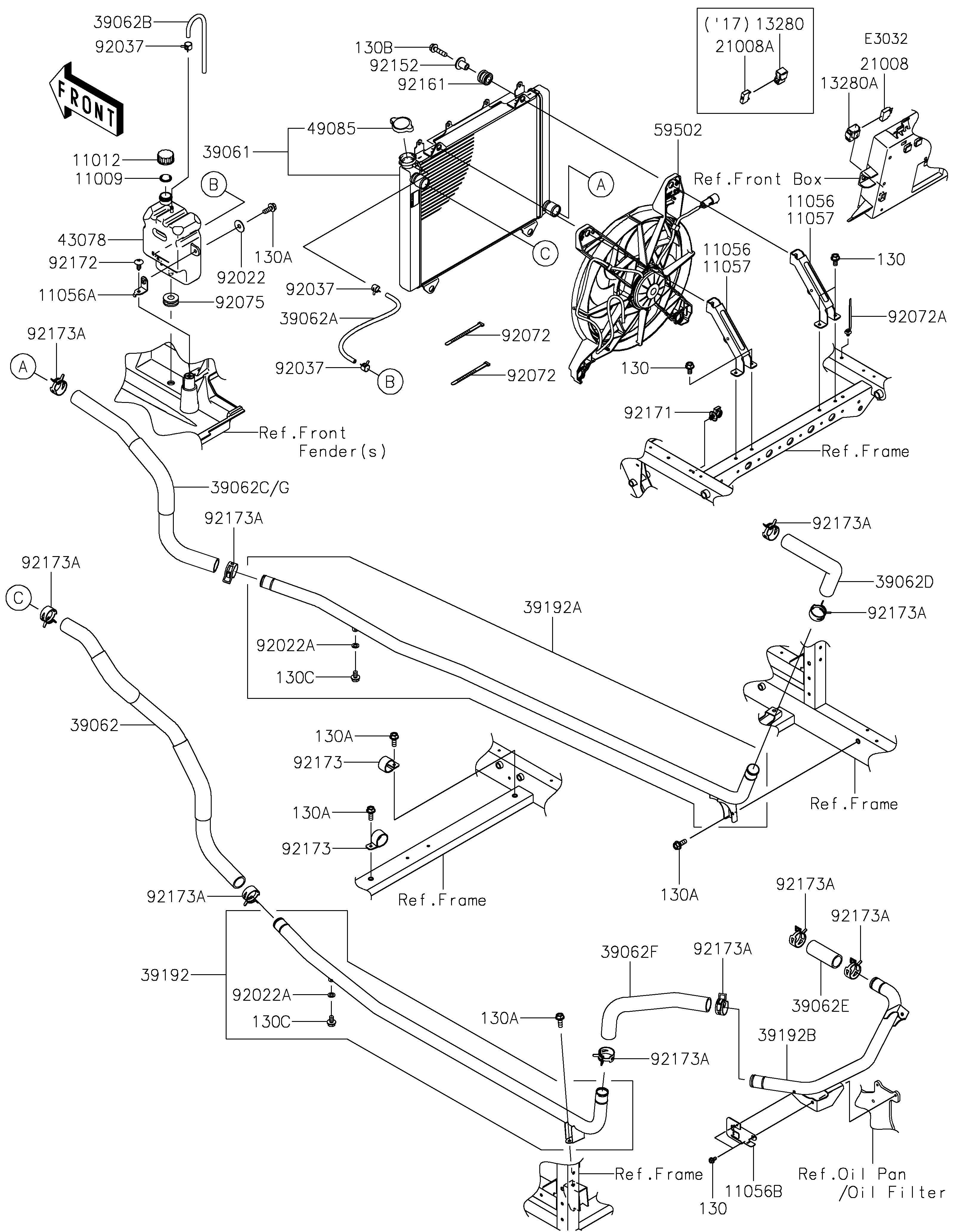

2018 MULE PRO-DX™ EPS DIESEL - Radiator
11009
11009
11012
11012
11056A
11056A
11056B
11056B
11057
11057
11057
11057
130
130
130
130
130
130
130A
130A
130A
130A
130A
130A
130A
130A
130A
130A
130B
130B
13280A
13280A
21008
21008
39061
39061
39062
39062
39062A
39062A
39062B
39062B
39062D
39062D
39062E
39062E
39062F
39062F
39062G
39062G
39192
39192
39192A
39192A
39192B
39192B
43078
43078
49085
49085
59502
59502
92022
92022
92022A
92022A
92022A
92022A
92037
92037
92037
92037
92037
92037
92072
92072
92072
92072
92072A
92072A
92075
92075
92152
92152
92161
92161
92171
92171
92172
92172
92173
92173
92173
92173
92173A
92173A
92173A
92173A
92173A
92173A
92173A
92173A
92173A
92173A
92173A
92173A
92173A
92173A
92173A
92173A
92173A
92173A
92173A
92173A
130C
130C
130C
130C
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| GASKET,RESERVOIR TANK CAP | 11009 | 11009-1145 | 1 | ||
| CAP | 11012 | 11012-1084 | 1 | ||
| BRACKET,RESERVOIR | 11056A | 11056-3856 | 1 | ||
| BRACKET,HARNESS | 11056B | 11056-7479 | 1 | ||
| BRACKET,RADIATOR | 11057 | 11057-0774 | 2 | ||
| BOLT-FLANGED,6X12 | 130 | 130BA0612 | 6 | ||
| BOLT-FLANGED,6X16 | 130A | 130BA0616 | 5 | ||
| BOLT-FLANGED,6X25 | 130B | 130BA0625 | 4 | ||
| HOLDER,BREAKER | 13280A | 13280-0898 | 1 | ||
| BREAKER,RAD. FAN,20A | 21008 | 21008-0011 | 1 | ||
| RADIATOR-ASSY | 39061 | 39061-0706 | 1 | ||
| HOSE-COOLING,RADIATOR IN | 39062 | 39062-0650 | 1 | ||
| HOSE-COOLING,RAD.-RESERVOIR | 39062A | 39062-0657 | 1 | ||
| HOSE-COOLING,OVER FLOW | 39062B | 39062-0696 | 1 | ||
| HOSE-COOLING,ENGINE IN | 39062D | 39062-0713 | 1 | ||
| HOSE-COOLING,ENGINE OUT | 39062E | 39062-0714 | 1 | ||
| HOSE-COOLING,ENGINE OUT | 39062F | 39062-0715 | 1 | ||
| HOSE-COOLING,RADIATOR OUT | 39062G | 39062-0777 | 1 | ||
| PIPE-WATER,LH | 39192 | 39192-0575 | 1 | ||
| PIPE-WATER,RH | 39192A | 39192-0591 | 1 | ||
| PIPE-WATER,CNT | 39192B | 39192-0593 | 1 | ||
| RESERVOIR | 43078 | 43078-0571 | 1 | ||
| CAP-ASSY-PRESSURE | 49085 | 49085-0005 | 1 | ||
| FAN-ASSY | 59502 | 59502-0609 | 1 | ||
| WASHER,PLAIN,6.5X20X1 | 92022 | 92022-165 | 1 | ||
| WASHER,6.2X11X1 | 92022A | 92022-304 | 2 | ||
| CLAMP,TUBE | 92037 | 92037-1461 | 3 | ||
| BAND,L=123 | 92072 | 92072-030 | 2 | ||
| BAND,OS170-FT7(BLACK) | 92072A | 92072-1414 | 1 | ||
| DAMPER | 92075 | 92075-1185 | 1 | ||
| COLLAR | 92152 | 92152-1512 | 4 | ||
| DAMPER | 92161 | 92161-1349 | 4 | ||
| CLAMP | 92171 | 92171-0453 | 1 | ||
| SCREW,6X16 | 92172 | 92172-0284 | 1 | ||
| CLAMP | 92173 | 92173-1204 | 2 | ||
| CLAMP,28.6MM | 92173A | 92173-1205 | 10 | ||
| BOLT-FLANGED,6X10 | 130C | 130BB0610 | 2 |
