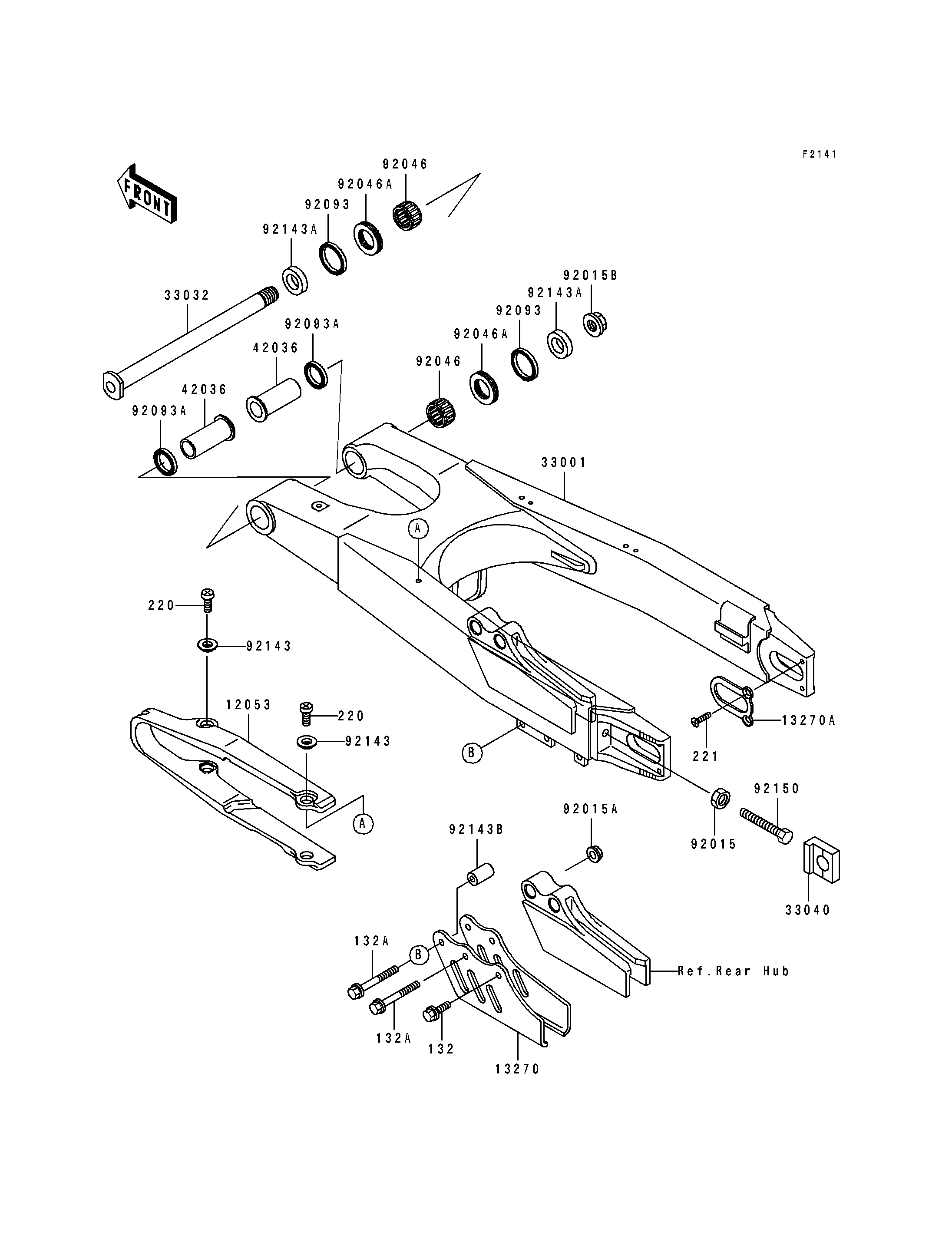

Parts Diagrams |
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
BOLT-FLANGED-SMALL | 132 | 132G0612 | 1 | ||
BOLT-FLANGED-SMALL | 132A | 132G0650 | 2 | ||
SCREW-PAN-CROS,5X8 | 220 | 220B0508 | 4 | ||
SCREW-CSK-CROS | 221 | 221B0510 | 4 | ||
GUIDE-CHAIN,DRIVE,FR | 12053 | 12053-1375 | 1 | ||
PLATE,DRIVE CHAIN GUIDE,RR | 13270 | 13270-1633 | 1 | ||
PLATE | 13270A | 13270-1636 | 2 | ||
ARM-COMP-SWING,SILVER NO.35 | 33001 | 33001-1525-TX | 1 | ||
SHAFT-SWING ARM | 33032 | 33032-1172 | 1 | ||
ADJUSTER-CHAIN | 33040 | 33040-1156 | 2 | ||
SLEEVE,SWING ARM,L=54 | 42036 | 42036-1326 | 2 | ||
NUT,FLANGED,8MM | 92015 | 92015-1014 | 2 | ||
NUT,FLANGED,6MM | 92015A | 92015-1078 | 2 | ||
NUT,FLANGED,16MM | 92015B | 92015-1316 | 1 | ||
BEARING-NEEDLE,TA2230Z | 92046 | 92046-1174 | 2 | ||
BEARING-NEEDLE,NTBR22356E01 | 92046A | 92046-1240 | 2 | ||
SEAL,SO 29 35 4 | 92093 | 92093-1384 | 2 | ||
SEAL,SO 22 29 4 | 92093A | 92093-1385 | 2 | ||
COLLAR | 92143 | 92143-1676 | 4 | ||
COLLAR,17.1X29X7 | 92143A | 92143-1777 | 2 | ||
COLLAR,6.5X14X24 | 92143B | 92143-1867 | 2 | ||
BOLT,8X55 | 92150 | 92150-1385 | 2 |
BOLT-FLANGED-SMALL | |
REF # | 132 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT-FLANGED-SMALL | |
REF # | 132A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
SCREW-PAN-CROS,5X8 | |
REF # | 220 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
SCREW-CSK-CROS | |
REF # | 221 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
GUIDE-CHAIN,DRIVE,FR | |
REF # | 12053 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PLATE,DRIVE CHAIN GUIDE,RR | |
REF # | 13270 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PLATE | |
REF # | 13270A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
ARM-COMP-SWING,SILVER NO.35 | |
REF # | 33001 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SHAFT-SWING ARM | |
REF # | 33032 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
ADJUSTER-CHAIN | |
REF # | 33040 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
SLEEVE,SWING ARM,L=54 | |
REF # | 42036 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
NUT,FLANGED,8MM | |
REF # | 92015 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
NUT,FLANGED,6MM | |
REF # | 92015A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
NUT,FLANGED,16MM | |
REF # | 92015B |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BEARING-NEEDLE,TA2230Z | |
REF # | 92046 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BEARING-NEEDLE,NTBR22356E01 | |
REF # | 92046A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
SEAL,SO 29 35 4 | |
REF # | 92093 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
SEAL,SO 22 29 4 | |
REF # | 92093A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
COLLAR | |
REF # | 92143 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
COLLAR,17.1X29X7 | |
REF # | 92143A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
COLLAR,6.5X14X24 | |
REF # | 92143B |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BOLT,8X55 | |
REF # | 92150 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
