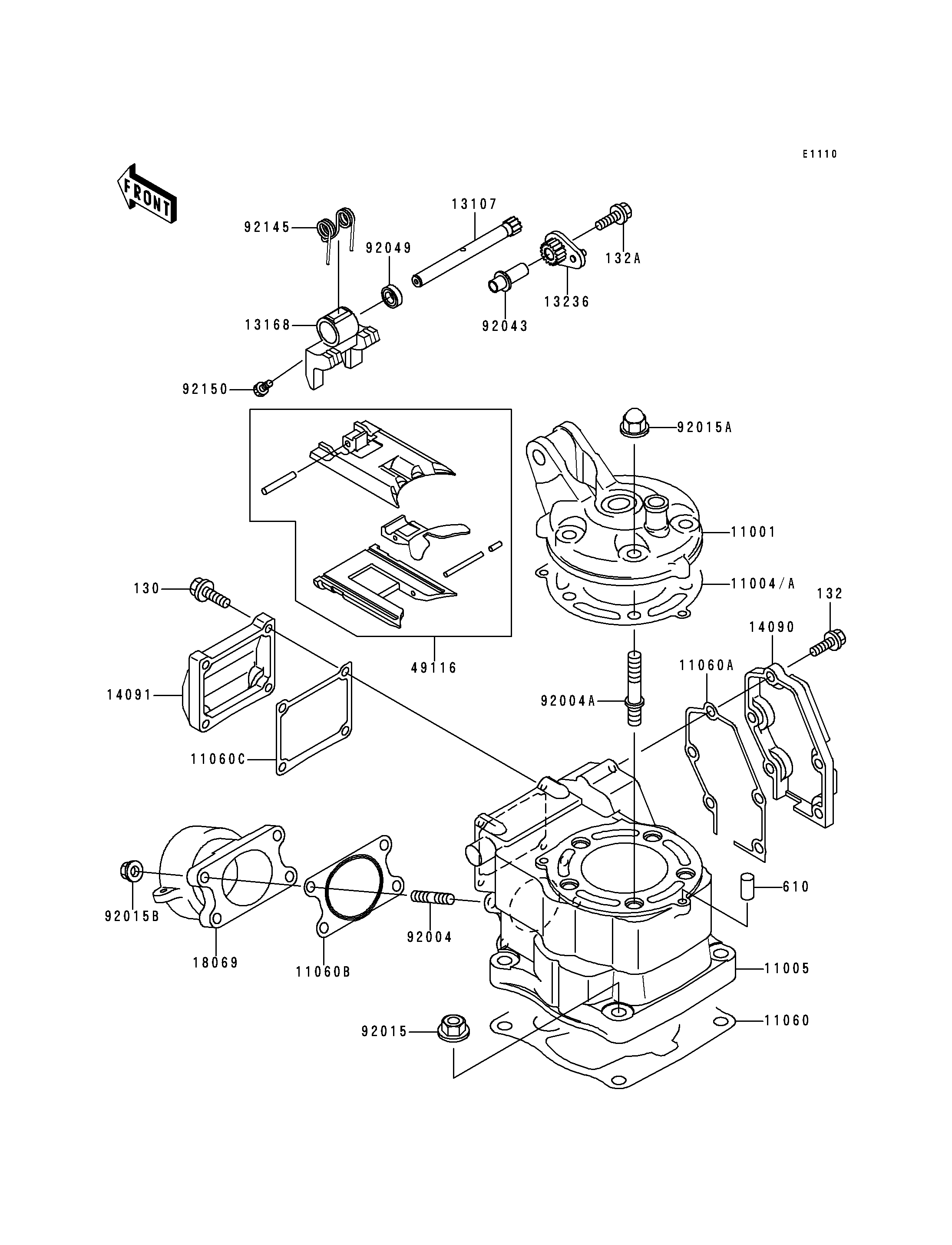

1999 KX125 - Cylinder Head/Cylinder

DOWNLOAD PDF
SELECT A NEW PART
130
132
132A
610
11001
11004
11004A
11005
11060
11060A
11060B
11060C
13107
13168
13236
14090
14091
18069
49116
92004
92004A
92015
92015A
92015B
92043
92049
92145
92150
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED 130 130G0525 4
BOLT-FLANGED-SMALL 132 132G0616 5
BOLT-FLANGED-SMALL 132A 132G0635 1
ROLLER,4X8 610 610A0408 2
HEAD-CYLINDER 11001 11001-1502 1
GASKET-HEAD,T=0.46 11004 11004-1252 1 (OPTION)
GASKET-HEAD,T=0.26 11004A 11004-1300 1
CYLINDER-ENGINE 11005 11005-1881 1
GASKET,CYLINDER BASE 11060 11060-1769 1
GASKET,RH COVER 11060A 11060-1789 1
GASKET 11060B 11060-1790 1
GASKET,CENTER COVER 11060C 11060-1876 1
SHAFT,VALVE 13107 13107-1399 1
LEVER,VALVE 13168 13168-1662 1
LEVER-COMP 13236 13236-1330 1
COVER,RH 14090 14090-1829 1
COVER,CENTER 14091 14091-1064 1
HOLDER-EXHAUST PIPE 18069 18069-1140 1
VALVE-ASSY 49116 49116-1171 1
STUD,6X18 92004 92004-1154 4
STUD,8X28 92004A 92004-1236 5
NUT,8MM 92015 92015-1143 4
NUT,CAP,8MM 92015A 92015-1151 5
NUT,FLANGED,6MM 92015B 92015-1367 4
PIN 92043 92043-1585 1
SEAL-OIL,SD088144 92049 92049-1238 1
SPRING 92145 92145-1234 1
BOLT,SOCKET,4X8 92150 92150-1888 1
