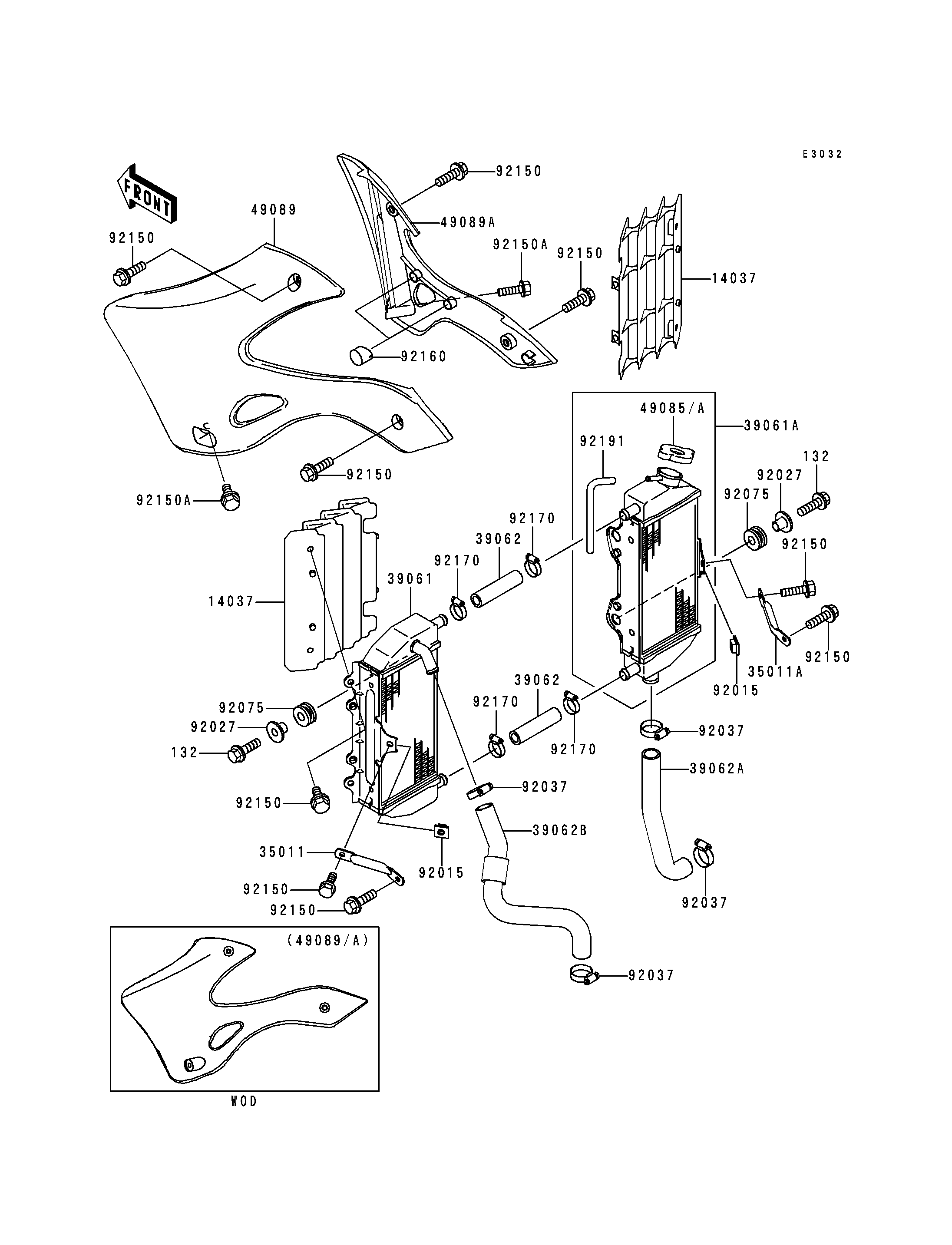

1999 KX125 - Radiator

DOWNLOAD PDF
SELECT A NEW PART
132
132
14037
14037
35011
35011A
39061
39061A
39062
39062
39062A
39062B
49085
49085A
49089
49089A
92015
92015
92027
92027
92037
92037
92037
92037
92075
92075
92150
92150
92150
92150
92150
92150
92150
92150
92150
92150A
92150A
92160
92170
92170
92170
92170
92191
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED-SMALL 132 132G0620 4
SCREEN,WHITE 14037 14037-1257-RZ 2
STAY,LH 35011 35011-1950 1
STAY,RH 35011A 35011-1951 1
RADIATOR-ASSY,LH 39061 39061-1262 1
RADIATOR-ASSY,RH 39061A 39061-1263 1
HOSE-COOLING,RADIATOR,LH-RH 39062 39062-1551 2
HOSE-COOLING,RADIATOR,RH-PUMP 39062A 39062-1553 1
HOSE-COOLING,HEAD-RADIATOR 39062B 39062-1787 1
CAP-ASSY-PRESSURE,P1.1 49085 49085-1070 1
CAP-ASSY-PRESSURE,P1.6 49085A 49085-1073 1
SHROUD-ENGINE,LH,L.GREEN 49089 49089-1140-6W 1
SHROUD-ENGINE,RH,L.GREEN 49089A 49089-1141-6W 1
NUT 92015 92015-1487 2
COLLAR,L=11.1 92027 92027-194 4
CLAMP,COOLING HOSE 92037 92037-1589 4
DAMPER 92075 92075-209 4
BOLT,6X12 92150 92150-1435 10
BOLT,6X20 92150A 92150-1801 2
DAMPER 92160 92160-1949 4
CLAMP 92170 92170-1283 4
TUBE,6X9X700 92191 92191-1211 1
