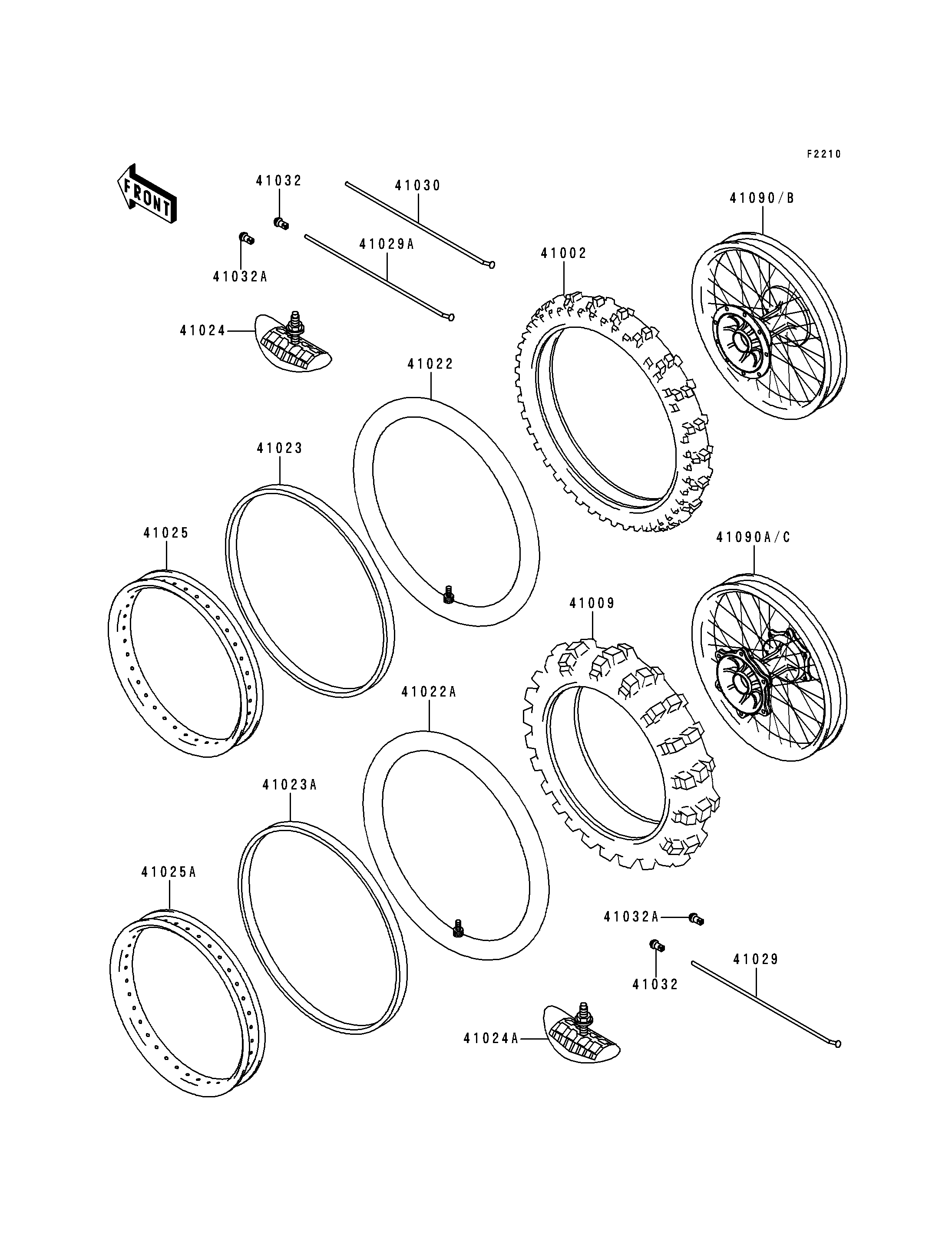

1999 KX125 - Wheels/Tires

DOWNLOAD PDF
SELECT A NEW PART
41002
41009
41022
41022A
41023
41023A
41024
41024A
41025
41025A
41029
41029A
41030
41032
41032
41032A
41032A
41090
41090A
41090B
41090C
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
TIRE,FR,80/100-21 51M,K490J(D) 41002 41002-1803 1
TIRE,RR,100/90-19 57M,D739(D) 41009 41009-1241 1
TUBE-TIRE,80/100-21(D) 41022 41022-1118 1
TUBE-TIRE,100/90-19(D) 41022A 41022-1129 1
BAND-RIM,80/100-21(D) 41023 41023-1069 1
BAND-RIM,90.100/90-19(D) 41023A 41023-1074 1
STOPPER-RIM,1.60-M(DUNLOP) 41024 41024-010 1
STOPPER-RIM,1.85-M(DUNLOP) 41024A 41024-011 1
RIM,FR,1.60X21 41025 41025-1371 1
RIM,RR,1.85X19 41025A 41025-1372 1
SPOKE-INNER,RR,202MMX160D 41029 41029-1204 36
SPOKE-INNER,FR,230MMX165D 41029A 41029-1295 27
SPOKE-OUTER,FR,231.5MMX170D 41030 41030-1165 9
NIPPLE-SPOKE,ALUMINIUM 41032 41032-1082 72
NIPPLE-SPOKE,STEEL 41032A 41032-1085 72 (OPTION)
WHEEL-SUB ASSY,FR,ALUM. NIPPLE 41090 41090-1113 1 (OPTION)
WHEEL-SUB ASSY,RR,ALUM. NIPPLE 41090A 41090-1114 1 (OPTION)
WHEEL-SUB ASSY,FR,STEEL NIPPLE 41090B 41090-1118 1 (OPTION)
WHEEL-SUB ASSY,RR,STEEL NIPPLE 41090C 41090-1119 1 (OPTION)
