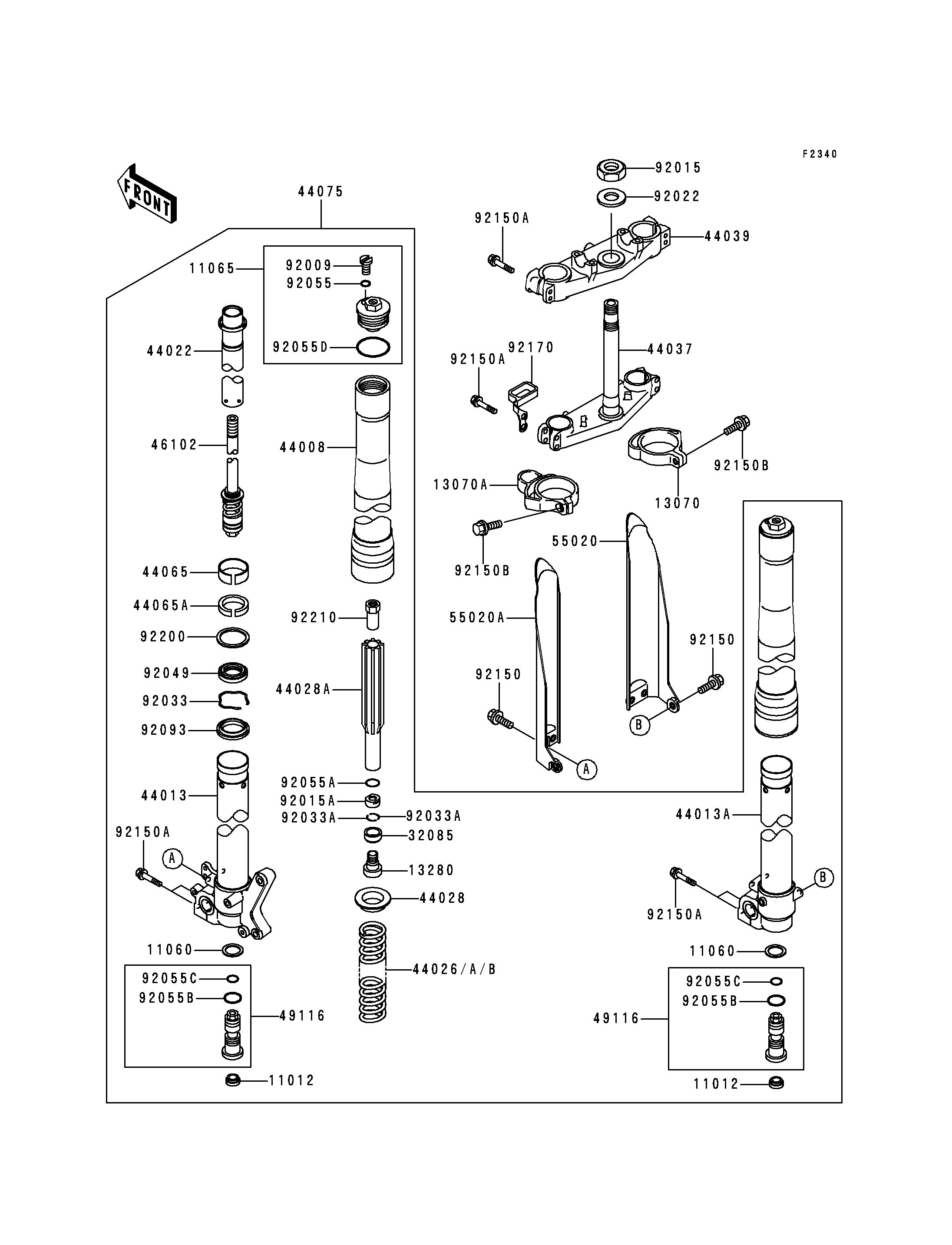

1999 KX125 - Front Fork

DOWNLOAD PDF
SELECT A NEW PART
11012
11012
11012
11012
11060
11060
11060
11060
11065
11065
13070
13070
13070A
13070A
13280
13280
32085
32085
44008
44008
44013
44013
44013A
44013A
44022
44022
44026
44026
44026A
44026A
44026B
44026B
44028
44028
44028A
44028A
44037
44037
44039
44039
44065
44065
44065A
44065A
44075
44075
46102
46102
49116
49116
49116
49116
55020
55020
55020A
55020A
92009
92009
92015
92015
92015A
92015A
92022
92022
92033
92033
92033A
92033A
92033A
92033A
92049
92049
92055
92055
92055A
92055A
92055B
92055B
92055B
92055B
92055C
92055C
92055C
92055C
92055D
92055D
92093
92093
92150
92150
92150
92150
92150A
92150A
92150A
92150A
92150A
92150A
92150A
92150A
92150B
92150B
92150B
92150B
92170
92170
92200
92200
92210
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAP 11012 11012-1692 2
GASKET 11060 11060-1707 2
CAP 11065 11065-1122 2
GUIDE,PROTECTOR,RH,WHITE 13070 13070-1290-RZ 1
GUIDE,PROTECTOR,LH,WHITE 13070A 13070-1329-RZ 1
HOLDER 13280 13280-1127 2
STOPPER 32085 32085-1323 2
PIPE-FORK OUTER,A.N.GOLD 44008 44008-1045-14 2
PIPE-FORK INNER,LH 44013 44013-1460 1
PIPE-FORK INNER,RH 44013A 44013-1461 1
CYLINDER-FORK 44022 44022-1330 2
SPRING-FRONT FORK,K=0.39-0.41 44026 44026-1660 2
SPRING-FRONT FORK,K=0.38-0.40 44026A 44026-1666 2 (OPTION)
SPRING-FRONT FORK,K=0.40-0.42 44026B 44026-1668 2 (OPTION)
GUIDE-FORK SPRING 44028 44028-1097 2
GUIDE-FORK SPRING 44028A 44028-1102 2
HOLDER-FORK UNDER 44037 44037-1371 1
HOLDER-FORK UPPER 44039 44039-1292 1
BUSHING-FRONT FORK 44065 44065-1129 2
BUSHING-FRONT FORK 44065A 44065-1130 2
DAMPER-SET-FORK,A.N.GOLD 44075 44075-1078-14 1
ROD,FORK,INNER 46102 46102-1423 2
VALVE-ASSY,FORK 49116 49116-1172 2
GUARD,FORK,RH,WHITE 55020 55020-1493-RZ 1
GUARD,FORK,LH,WHITE 55020A 55020-1554-RZ 1
SCREW 92009 92009-1884 2
NUT,24MM 92015 92015-1057 1
NUT 92015A 92015-1805 2
WASHER,25X36X2.3 92022 92022-250 1
RING-SNAP 92033 92033-1264 2
RING-SNAP 92033A 92033-1271 4
SEAL-OIL 92049 92049-1504 2
RING-O 92055 92055-1441 2
RING-O 92055A 92055-1442 2
RING-O,FORK VALVE 92055B 92055-1547 2
RING-O,FORK VALVE 92055C 92055-1548 2
RING-O 92055D 92055-1549 2
SEAL,FORK OUTER TUBE 92093 92093-1392 2
BOLT,6X12 92150 92150-1435 6
BOLT,FLANGED,8X40 92150A 92150-1516 12
BOLT,5X16 92150B 92150-1802 2
CLAMP,HOSE 92170 92170-1604 1
WASHER 92200 92200-1006 2
NUT 92210 92210-1177 2
