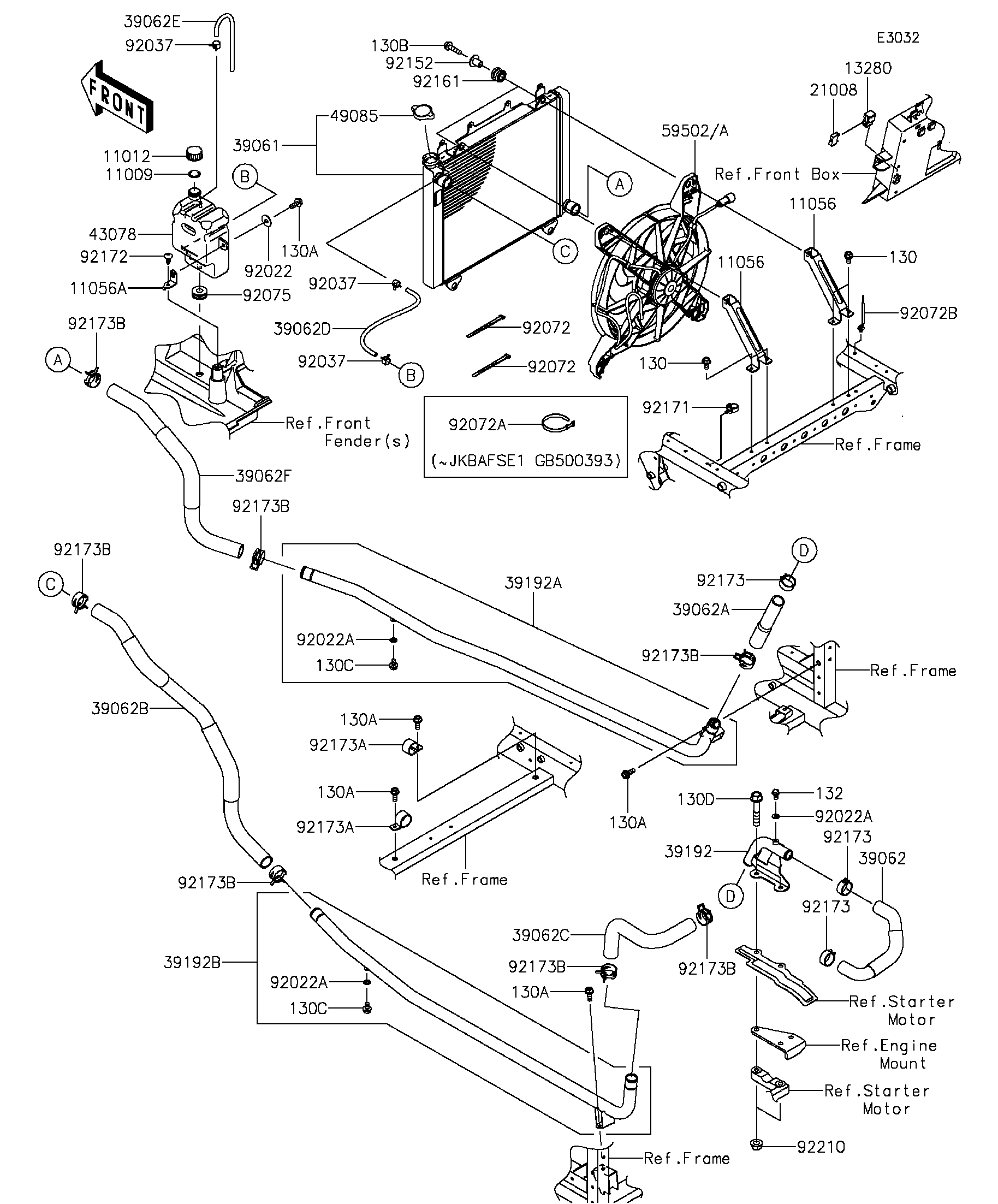

Parts Diagrams
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
Parts Diagrams |
11009
11009
11012
11012
11056
11056
11056
11056
11056A
11056A
13280
13280
21008
21008
39061
39061
39062
39062
39062A
39062A
39062B
39062B
39062C
39062C
39062D
39062D
39062E
39062E
39062F
39062F
39192
39192
39192A
39192A
39192B
39192B
43078
43078
49085
49085
59502
59502
59502A
59502A
92022
92022
92022A
92022A
92022A
92022A
92022A
92022A
92037
92037
92037
92037
92037
92037
92072
92072
92072
92072
92072A
92072A
92072B
92072B
92075
92075
92152
92152
92161
92161
92171
92171
92172
92172
92173
92173
92173
92173
92173
92173
92173A
92173A
92173A
92173A
130
130
130
130
130A
130A
130A
130A
130A
130A
130A
130A
130A
130A
130B
130B
130C
130C
130C
130C
130D
130D
132
132
92173B
92173B
92173B
92173B
92173B
92173B
92173B
92173B
92173B
92173B
92173B
92173B
92173B
92173B
92210
92210
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| GASKET,RESERVOIR TANK CAP | 11009 | 11009-1145 | 1 | ||
| CAP | 11012 | 11012-1084 | 1 | ||
| BRACKET,RADIATOR | 11056 | 11056-2833 | 2 | ||
| BRACKET,RESERVOIR | 11056A | 11056-3856 | 1 | ||
| HOLDER,BREAKER | 13280 | 13280-0082 | 1 | ||
| BREAKER,RAD. FAN,20A | 21008 | 21008-0554 | 1 | ||
| RADIATOR-ASSY | 39061 | 39061-0706 | 1 | ||
| HOSE-COOLING | 39062 | 39062-0647 | 1 | ||
| HOSE-COOLING,ENGINE IN | 39062A | 39062-0648 | 1 | ||
| HOSE-COOLING,RADIATOR IN | 39062B | 39062-0650 | 1 | ||
| HOSE-COOLING,ENGINE OUT | 39062C | 39062-0651 | 1 | ||
| HOSE-COOLING,RAD.-RESERVOIR | 39062D | 39062-0657 | 1 | ||
| HOSE-COOLING,OVER FLOW | 39062E | 39062-0696 | 1 | ||
| HOSE-COOLING,RADIATOR OUT | 39062F | 39062-0697 | 1 | ||
| PIPE-WATER | 39192 | 39192-0573 | 1 | ||
| PIPE-WATER,RH | 39192A | 39192-0574 | 1 | ||
| PIPE-WATER,LH | 39192B | 39192-0575 | 1 | ||
| RESERVOIR | 43078 | 43078-0571 | 1 | ||
| CAP-ASSY-PRESSURE | 49085 | 49085-0005 | 1 | ||
| FAN-ASSY | 59502 | 59502-0566 | 1 | ( - JKBAFSE1 GB500393) | |
| FAN-ASSY | 59502A | 59502-0609 | 1 | (JKBAFSE1 GB500394 - ) | |
| WASHER,PLAIN,6MM | 92022 | 92022-165 | 1 | ||
| WASHER,6.2X11X1 | 92022A | 92022-304 | 3 | ||
| CLAMP,TUBE | 92037 | 92037-1461 | 3 | ||
| BAND,L=123 | 92072 | 92072-030 | 2 | (JKBAFSE1 GB500394 - ) | |
| BAND,L=186 | 92072A | 92072-056 | 1 | ( - JKBAFSE1 GB500393) | |
| BAND | 92072B | 92072-1414 | 1 | ||
| DAMPER | 92075 | 92075-1185 | 1 | ||
| COLLAR | 92152 | 92152-1512 | 4 | ||
| DAMPER | 92161 | 92161-1349 | 4 | ||
| CLAMP | 92171 | 92171-0453 | 1 | ||
| SCREW,6X16 | 92172 | 92172-0284 | 1 | ||
| CLAMP | 92173 | 92173-0072 | 3 | ||
| CLAMP | 92173A | 92173-1204 | 2 | ||
| BOLT-FLANGED,6X12 | 130 | 130BA0612 | 4 | ||
| BOLT-FLANGED,6X16 | 130A | 130BA0616 | 5 | ||
| BOLT-FLANGED,6X25 | 130B | 130BA0625 | 4 | ||
| BOLT-FLANGED,6X10 | 130C | 130BB0610 | 2 | ||
| BOLT-FLANGED,10X50 | 130D | 130CA1050 | 2 | ||
| BOLT-FLANGED-SMALL,6X10 | 132 | 132BA0610 | 1 | ||
| CLAMP,28.6MM | 92173B | 92173-1205 | 7 | ||
| NUT,LOCK,FLANGED,10MM | 92210 | 92210-0276 | 2 |
| GASKET,RESERVOIR TANK CAP | |
| REF # | 11009 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CAP | |
| REF # | 11012 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BRACKET,RADIATOR | |
| REF # | 11056 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BRACKET,RESERVOIR | |
| REF # | 11056A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| HOLDER,BREAKER | |
| REF # | 13280 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BREAKER,RAD. FAN,20A | |
| REF # | 21008 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RADIATOR-ASSY | |
| REF # | 39061 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| HOSE-COOLING | |
| REF # | 39062 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| HOSE-COOLING,ENGINE IN | |
| REF # | 39062A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| HOSE-COOLING,RADIATOR IN | |
| REF # | 39062B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| HOSE-COOLING,ENGINE OUT | |
| REF # | 39062C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| HOSE-COOLING,RAD.-RESERVOIR | |
| REF # | 39062D |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| HOSE-COOLING,OVER FLOW | |
| REF # | 39062E |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| HOSE-COOLING,RADIATOR OUT | |
| REF # | 39062F |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PIPE-WATER | |
| REF # | 39192 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PIPE-WATER,RH | |
| REF # | 39192A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PIPE-WATER,LH | |
| REF # | 39192B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RESERVOIR | |
| REF # | 43078 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CAP-ASSY-PRESSURE | |
| REF # | 49085 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| FAN-ASSY | |
| REF # | 59502 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | ( - JKBAFSE1 GB500393) |
| FAN-ASSY | |
| REF # | 59502A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | (JKBAFSE1 GB500394 - ) |
| WASHER,PLAIN,6MM | |
| REF # | 92022 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER,6.2X11X1 | |
| REF # | 92022A |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| CLAMP,TUBE | |
| REF # | 92037 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| BAND,L=123 | |
| REF # | 92072 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | (JKBAFSE1 GB500394 - ) |
| BAND,L=186 | |
| REF # | 92072A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | ( - JKBAFSE1 GB500393) |
| BAND | |
| REF # | 92072B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| DAMPER | |
| REF # | 92075 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COLLAR | |
| REF # | 92152 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| DAMPER | |
| REF # | 92161 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| CLAMP | |
| REF # | 92171 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SCREW,6X16 | |
| REF # | 92172 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CLAMP | |
| REF # | 92173 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| CLAMP | |
| REF # | 92173A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT-FLANGED,6X12 | |
| REF # | 130 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| BOLT-FLANGED,6X16 | |
| REF # | 130A |
|---|---|
| PART NUMBER | |
| QUANTITY | 5 |
| DESTINATION | |
| REMARKS | |
| BOLT-FLANGED,6X25 | |
| REF # | 130B |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| BOLT-FLANGED,6X10 | |
| REF # | 130C |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT-FLANGED,10X50 | |
| REF # | 130D |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT-FLANGED-SMALL,6X10 | |
| REF # | 132 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CLAMP,28.6MM | |
| REF # | 92173B |
|---|---|
| PART NUMBER | |
| QUANTITY | 7 |
| DESTINATION | |
| REMARKS | |
| NUT,LOCK,FLANGED,10MM | |
| REF # | 92210 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
