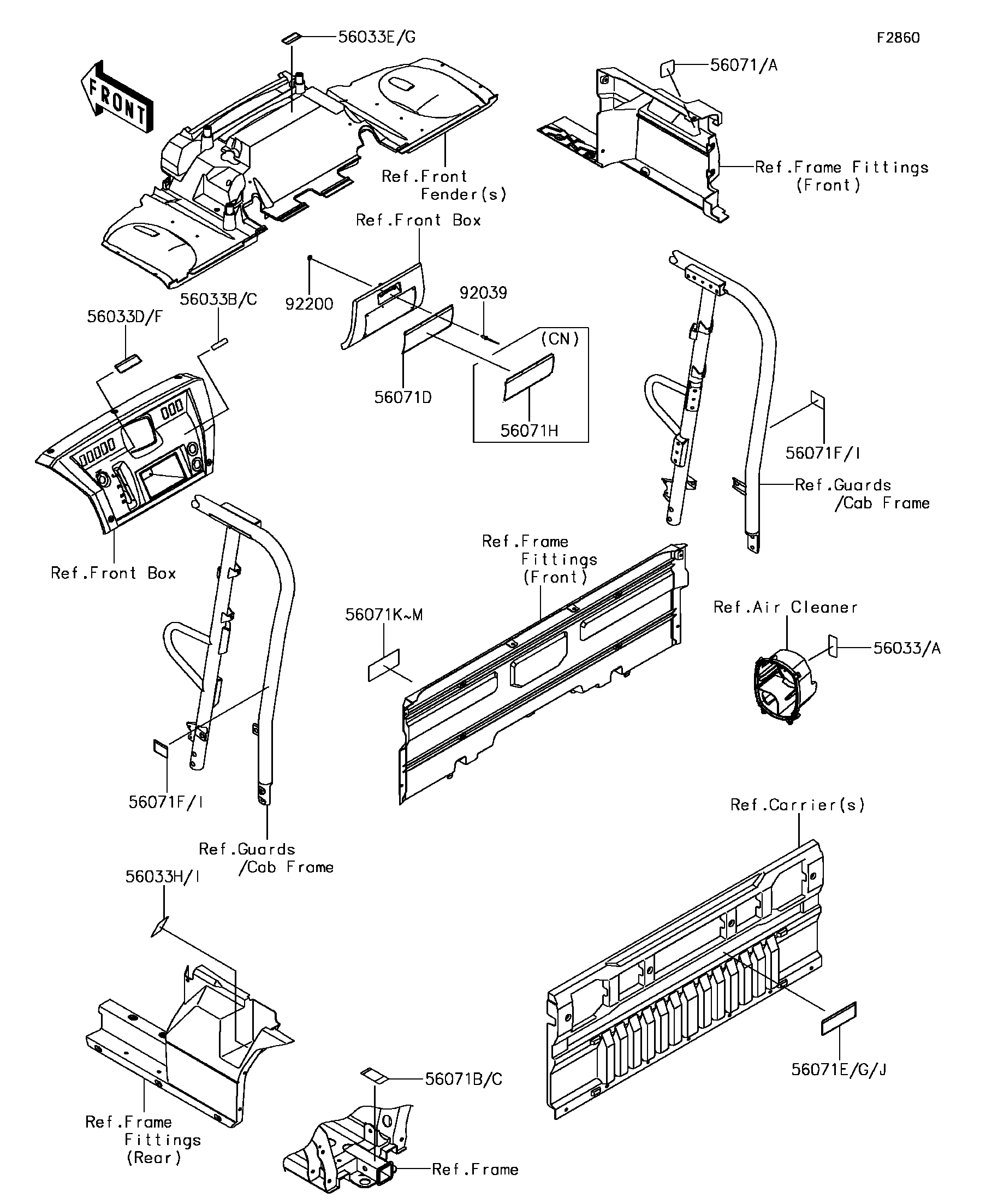

2016 MULE PRO-FX™ EPS CAMO - Labels

DOWNLOAD PDF
SELECT A NEW PART
56033
56033
56033A
56033A
56033B
56033B
56033C
56033C
56033D
56033D
56033E
56033E
56033F
56033F
56033G
56033G
56033H
56033H
56033I
56033I
56071
56071
56071A
56071A
56071B
56071B
56071C
56071C
56071D
56071D
56071E
56071E
56071F
56071F
56071F
56071F
56071G
56071G
56071H
56071H
56071I
56071I
56071I
56071I
56071J
56071J
56071K
56071K
56071L
56071L
56071M
56071M
92039
92039
92200
92200
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
LABEL-MANUAL,AIR CLEANER 56033 56033-0724 1
LABEL-MANUAL,AIR CLEANER 56033A 56033-0731 1 CN
LABEL-MANUAL,DC OUTLET 56033B 56033-0814 1
LABEL-MANUAL,DC OUTLET 56033C 56033-0816 1 CN
LABEL-MANUAL,SHIFT NOTICE 56033D 56033-0822 1
LABEL-MANUAL,FRONT HOOD 56033E 56033-0825 1
LABEL-MANUAL,SHIFT NOTICE 56033F 56033-0826 1 CN
LABEL-MANUAL,FRONT HOOD 56033G 56033-0827 1 CN
LABEL-MANUAL,DRIVE BELT 56033H 56033-0831 1
LABEL-MANUAL,DRIVE BELT 56033I 56033-0832 1 CN
LABEL-WARNING,GASOLINE 56071 56071-0292 1
LABEL-WARNING,GASOLINE 56071A 56071-0293 1 CN
LABEL-WARNING,TRAILER HITCH 56071B 56071-0436 1
LABEL-WARNING,TRAILER HITCH 56071C 56071-0439 1 CN
LABEL-WARNING,GENERAL 56071D 56071-0508 1
LABEL-WARNING,CARGO CAPA. 56071E 56071-0509 1 CN,US
LABEL-WARNING,CARGO BED 56071F 56071-0510 2
LABEL-WARNING,CARGO CAPA. 56071G 56071-0511 1 CN
LABEL-WARNING,GENERAL 56071H 56071-0512 1 CN
LABEL-WARNING,CARGO BED 56071I 56071-0513 2 CN
LABEL-WARNING,CARGO CAPA. 56071J 56071-0514 1 CA
LABEL-WARNING,TIRE&LOAD 56071K 56071-0679 1 CN,US
LABEL-WARNING,TIRE&LOAD 56071L 56071-0681 1 CN
LABEL-WARNING,TIRE&LOAD 56071M 56071-0683 1 CA
RIVET,3.2X8 92039 92039-3763 6
WASHER,3.5X8X1 92200 92200-1251 6
