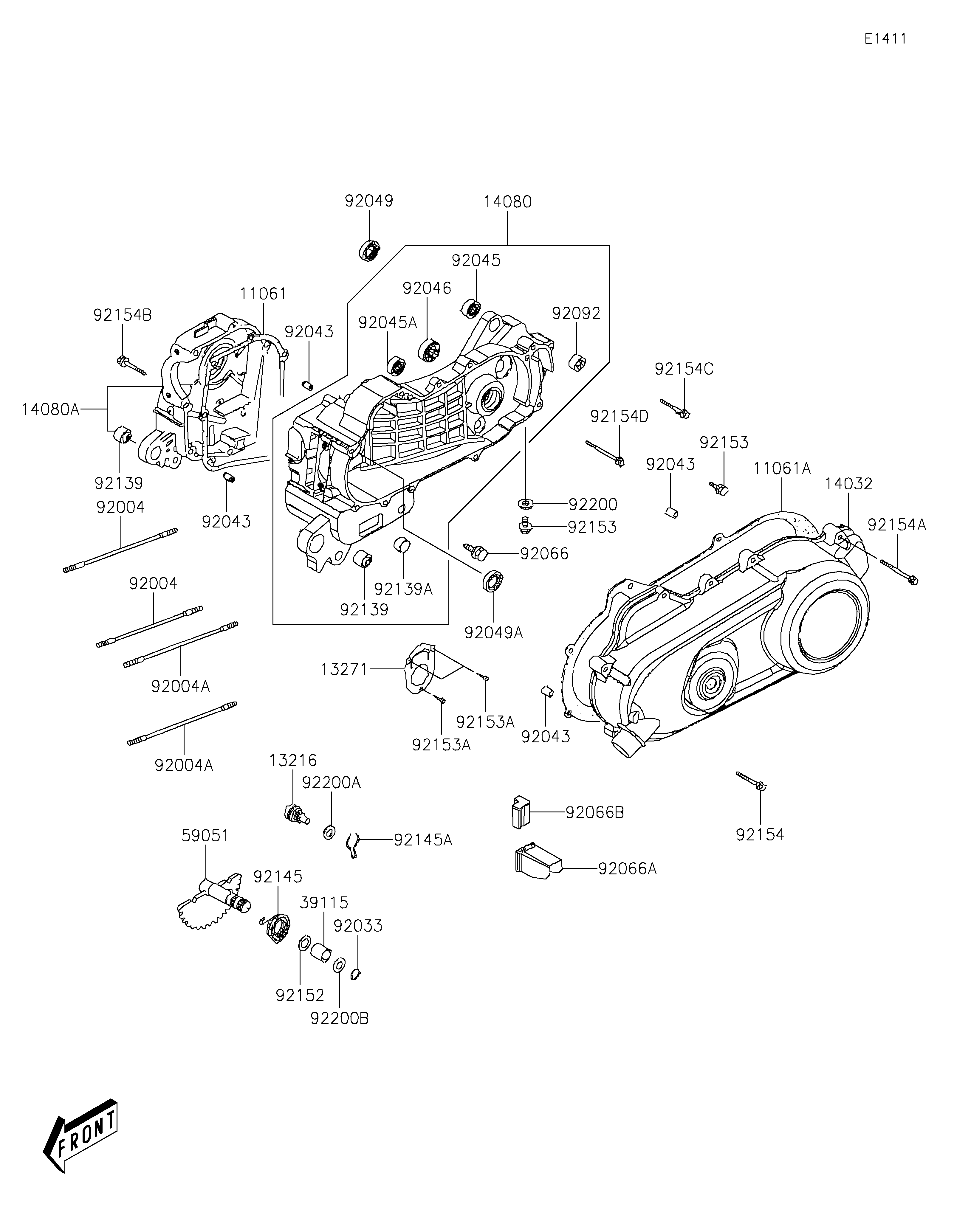

Parts Diagrams |
11061
11061A
13216
13271
14032
14080
14080A
39115
59051
92004
92004
92004A
92004A
92033
92043
92043
92043
92043
92045
92045A
92046
92049
92049A
92066
92066A
92066B
92092
92139
92139
92139A
92145
92145A
92152
92153
92153
92153A
92153A
92154
92154A
92154B
92154C
92154D
92200
92200A
92200B
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
GASKET,CRANK CASE | 11061 | 11061-Y003 | 1 | ||
GASKET,CLUTCH COVER | 11061A | 11061-Y007 | 1 | ||
GEAR-COMP,KICK DRIVEN | 13216 | 13216-Y002 | 1 | ||
PLATE | 13271 | 13271-Y002 | 1 | ||
COVER-CLUTCH,BLACK | 14032 | 14032-Y002-931 | 1 | ||
CRANKCASE,LH | 14080 | 14080-Y003 | 1 | ||
CRANKCASE,RH | 14080A | 14080-Y007 | 1 | ||
SHAFT-IDLER,KICK | 39115 | 39115-Y001 | 1 | ||
GEAR-SPUR,KICK STARTER | 59051 | 59051-Y001 | 1 | ||
STUD,8X182.5 | 92004 | 92004-Y002 | 2 | ||
STUD,8X190.5 | 92004A | 92004-Y004 | 2 | ||
RING-SNAP | 92033 | 92033-Y012 | 1 | ||
PIN,8X14 | 92043 | 92043-Y012 | 4 | ||
BEARING-BALL,6203 | 92045 | 92045-Y006 | 1 | ||
BEARING-BALL,6204 | 92045A | 92045-Y007 | 1 | ||
BEARING-NEEDLE | 92046 | 92046-Y003 | 1 | ||
SEAL-OIL,20X32X6 | 92049 | 92049-Y004 | 1 | ||
SEAL-OIL,19.8X30X5 | 92049A | 92049-Y041 | 1 | ||
PLUG,DRAIN | 92066 | 92066-Y003 | 1 | ||
PLUG | 92066A | 92066-Y005 | 1 | ||
PLUG | 92066B | 92066-Y007 | 1 | ||
BUSHING-RUBBER | 92092 | 92092-Y002 | 1 | ||
BUSHING | 92139 | 92139-Y001 | 2 | ||
BUSHING | 92139A | 92139-Y002 | 1 | ||
SPRING | 92145 | 92145-Y001 | 1 | ||
SPRING,KICK DRIVEN GEAR | 92145A | 92145-Y011 | 1 | ||
COLLAR | 92152 | 92152-Y006 | 1 | ||
BOLT,FLANGE,8X12 | 92153 | 92153-Y031 | 2 | ||
BOLT,5X10 | 92153A | 92153-Y058 | 3 | ||
BOLT,FLANGE,6X28 | 92154 | 92154-Y068 | 1 | ||
BOLT,FLANGE,6X35 | 92154A | 92154-Y069 | 7 | ||
BOLT,FLANGE,6X45 | 92154B | 92154-Y135 | 1 | ||
BOLT,FLANGE,8X45 | 92154C | 92154-Y136 | 6 | ||
BOLT,FLANGE,8X60 | 92154D | 92154-Y141 | 1 | ||
WASHER,8MM | 92200 | 92200-Y001 | 1 | ||
WASHER,10MM | 92200A | 92200-Y002 | 1 | ||
WASHER | 92200B | 92200-Y008 | 1 |
