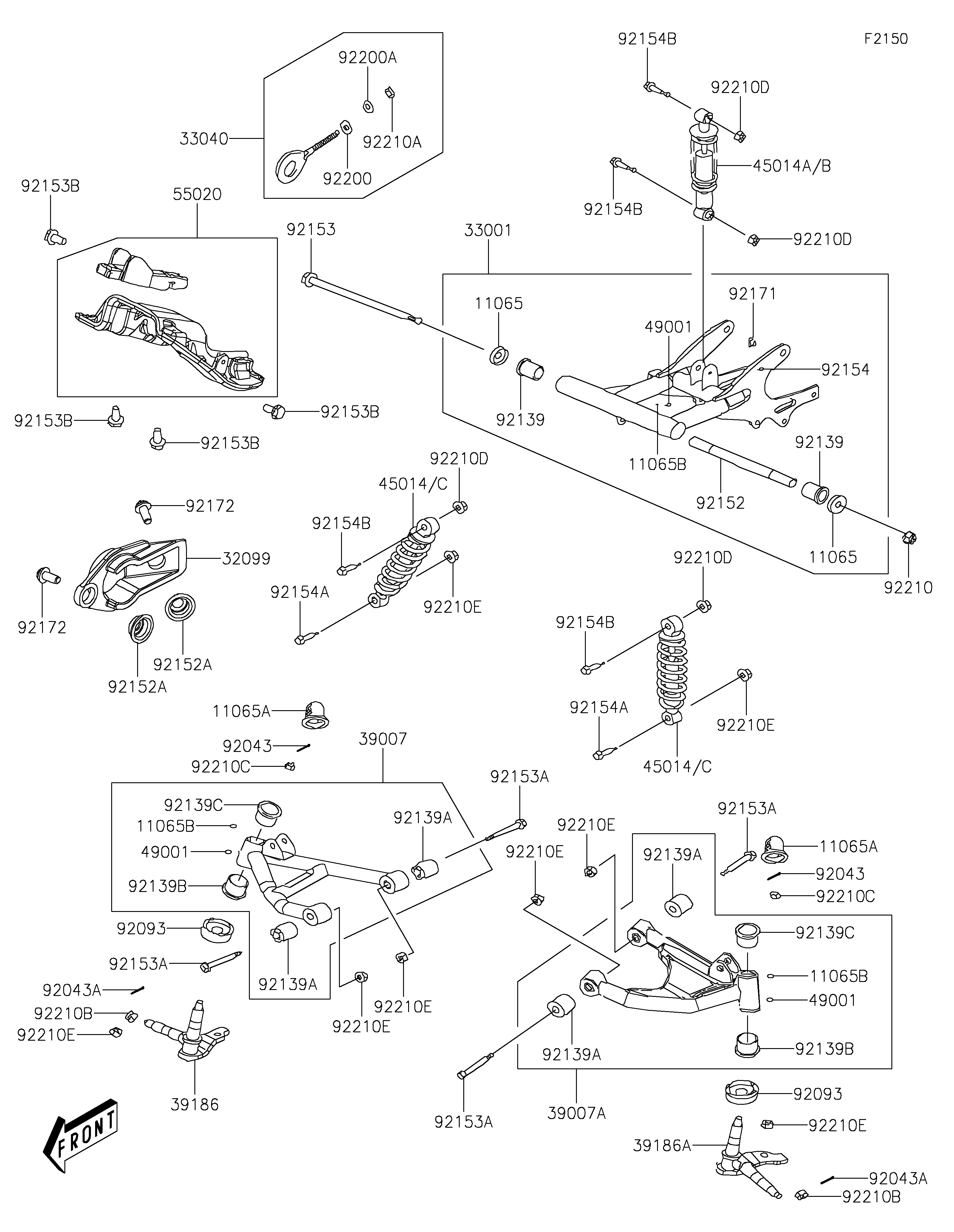

Parts Diagrams
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
Parts Diagrams |
11065
11065
11065
11065
11065A
11065A
11065A
11065A
11065B
11065B
11065B
11065B
11065B
11065B
32099
32099
33001
33001
33040
33040
39007
39007
39007A
39007A
39186
39186
39186A
39186A
45014
45014
45014
45014
45014B
45014B
49001
49001
49001
49001
49001
49001
55020
55020
92043
92043
92043
92043
92043A
92043A
92043A
92043A
92093
92093
92093
92093
92139
92139
92139
92139
92139A
92139A
92139A
92139A
92139A
92139A
92139A
92139A
92139B
92139B
92139B
92139B
92139C
92139C
92139C
92139C
92152
92152
92152A
92152A
92152A
92152A
92153
92153
92153A
92153A
92153A
92153A
92153A
92153A
92153A
92153A
92153B
92153B
92153B
92153B
92153B
92153B
92153B
92153B
92154
92154
92154A
92154A
92154A
92154A
92154B
92154B
92154B
92154B
92154B
92154B
92154B
92154B
92171
92171
92172
92172
92172
92172
92200
92200
92200A
92200A
92210
92210
92210A
92210A
92210B
92210B
92210B
92210B
92210C
92210C
92210C
92210C
92210D
92210D
92210D
92210D
92210D
92210D
92210D
92210D
92210E
92210E
92210E
92210E
92210E
92210E
92210E
92210E
92210E
92210E
92210E
92210E
92210E
92210E
92210E
92210E
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| CAP | 11065 | 11065-Y003 | 2 | ||
| CAP | 11065A | 11065-Y004 | 2 | ||
| CAP,GREASE NIPPLE | 11065B | 11065-Y005 | 3 | ||
| CASE,KICK STARTER | 32099 | 32099-Y001 | 1 | ||
| ARM-COMP-SWING | 33001 | 33001-Y001 | 1 | ||
| ADJUSTER-CHAIN | 33040 | 33040-Y001 | 1 | ||
| ARM-SUSP,RH | 39007 | 39007-Y001 | 1 | ||
| ARM-SUSP,LH | 39007A | 39007-Y002 | 1 | ||
| KNUCKLE,RH | 39186 | 39186-Y001 | 1 | ||
| KNUCKLE,LH | 39186A | 39186-Y002 | 1 | ||
| SHOCKABSORBER,FR,GREEN | 45014 | 45014-Y001-960 | 2 | _________________________________________US | |
| SHOCKABSORBER,RR,GREEN | 45014B | 45014-Y002-960 | 1 | _________________________________________US | |
| NIPPLE-GREASE | 49001 | 49001-Y001 | 3 | ||
| GUARD | 55020 | 55020-Y004 | 1 | ||
| PIN,2X20 | 92043 | 92043-Y008 | 2 | ||
| PIN,3X25 | 92043A | 92043-Y009 | 2 | ||
| SEAL | 92093 | 92093-Y007 | 2 | ||
| BUSHING,RR | 92139 | 92139-Y003 | 2 | ||
| BUSHING,SUSPENSION ARM | 92139A | 92139-Y004 | 4 | ||
| BUSHING,SUSPENSION ARM | 92139B | 92139-Y005 | 2 | ||
| BUSHING,SUSPENSION ARM | 92139C | 92139-Y006 | 2 | ||
| COLLAR | 92152 | 92152-Y010 | 1 | ||
| COLLAR | 92152A | 92152-Y011 | 2 | ||
| BOLT | 92153 | 92153-Y011 | 1 | ||
| BOLT,FLANGE,10X50 | 92153A | 92153-Y042 | 4 | ||
| BOLT,6X16 | 92153B | 92153-Y064 | 4 | ||
| BOLT,FLANGE,6X10 | 92154 | 92154-Y038 | 1 | ||
| BOLT,HEX,10X40 | 92154A | 92154-Y148 | 2 | ||
| BOLT,FLANGE,10X40 | 92154B | 92154-Y149 | 4 | ||
| CLAMP,BRAKE HOSE | 92171 | 92171-Y005 | 1 | ||
| SCREW,TAPPING,6X12 | 92172 | 92172-Y070 | 2 | ||
| WASHER,8MM | 92200 | 92200-Y016 | 1 | ||
| WASHER,8MM | 92200A | 92200-Y019 | 1 | ||
| NUT,14MM | 92210 | 92210-Y012 | 1 | ||
| NUT,8MM | 92210A | 92210-Y018 | 1 | ||
| NUT,12MM | 92210B | 92210-Y023 | 2 | ||
| NUT,10MM | 92210C | 92210-Y024 | 2 | ||
| NUT,10MM | 92210D | 92210-Y029 | 4 | ||
| NUT,10MM | 92210E | 92210-Y034 | 8 |
