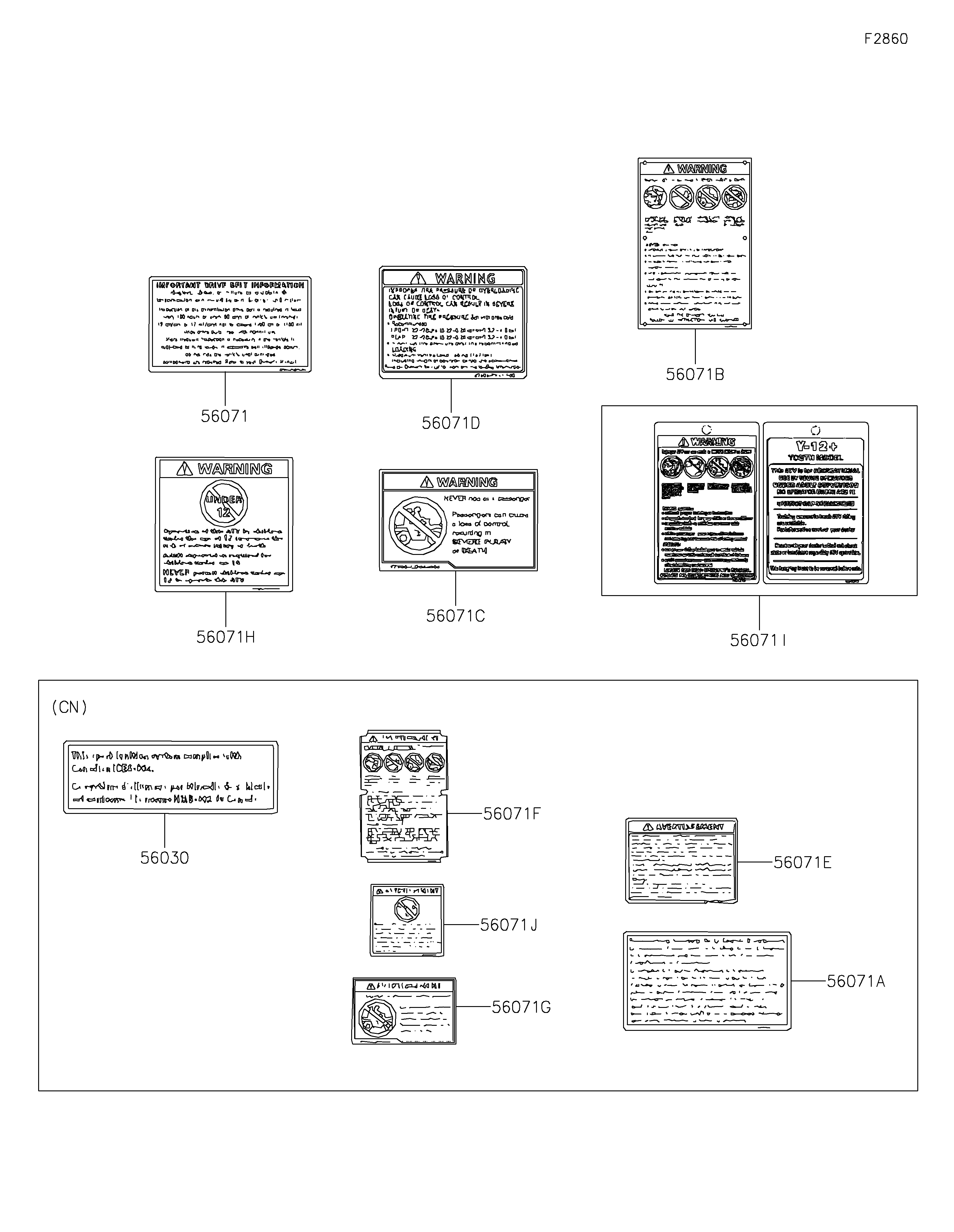

56030
56071
56071A
56071B
56071C
56071D
56071E
56071F
56071G
56071H
56071I
56071J
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
LABEL,ICES-002 56030 56030-Y004 1 CN
LABEL-WARNING,DRIVE BELT 56071 56071-Y001 1
LABEL-WARNING 56071A 56071-Y010 1 CN
LABEL-WARNING,OFF ROAD 56071B 56071-Y019 1
LABEL-WARNING,NO PASSENGER 56071C 56071-Y022 1
LABEL-WARNING,TIRE OFF ROAD 56071D 56071-Y023 1
LABEL-WARNING,TIRE OFF ROAD 56071E 56071-Y026 1 CN
LABEL-WARNING,OFF ROAD 56071F 56071-Y027 1 CN
LABEL-WARNING,NO PASSENGER 56071G 56071-Y029 1 CN
LABEL-WARNING,AGE12 56071H 56071-Y031 1
LABEL-WARNING,TAG OFF ROAD 56071I 56071-Y032 1
LABEL-WARNING,AGE12 56071J 56071-Y033 1 CN
