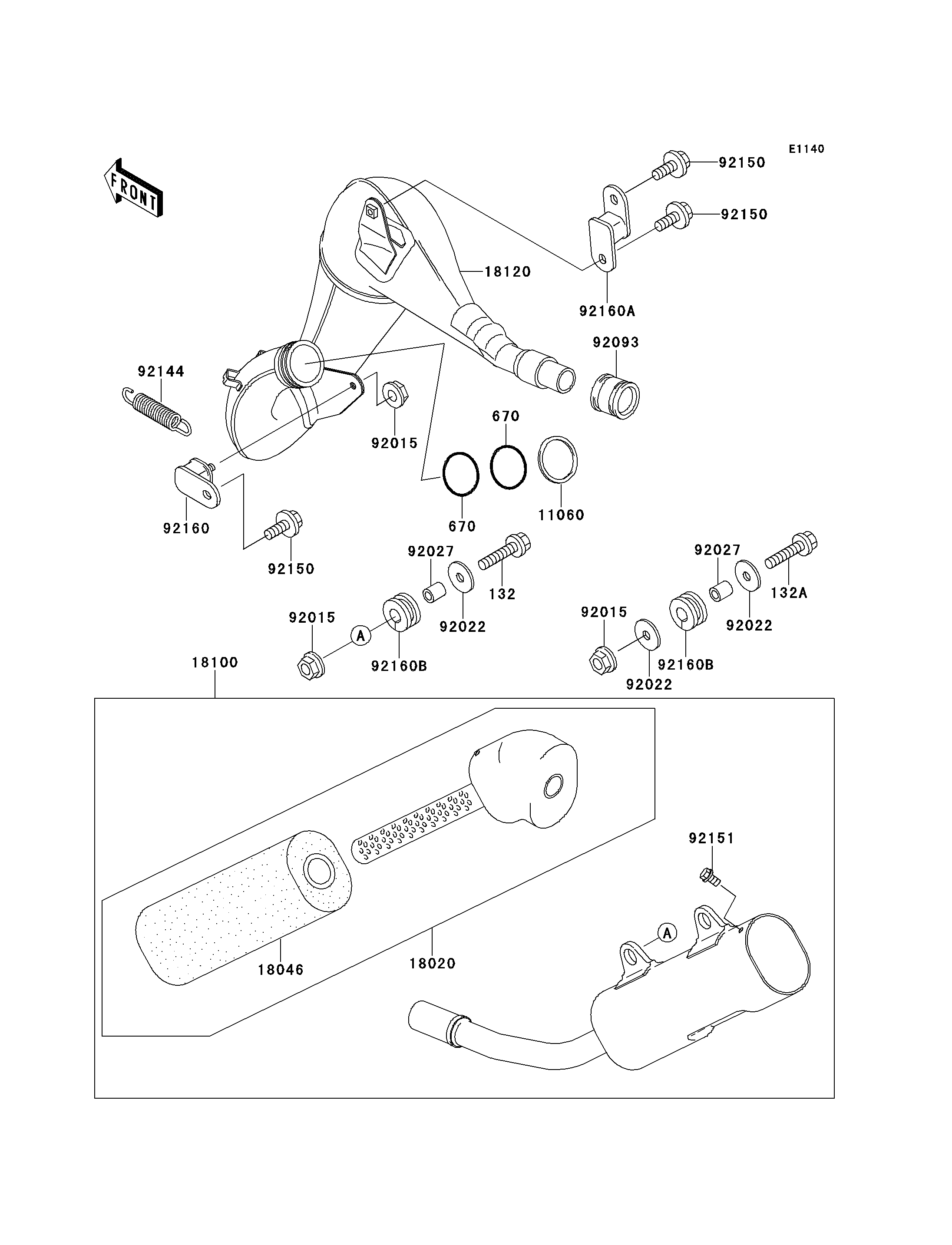

Parts Diagrams |
132
132A
670
670
11060
18020
18046
18100
18120
92015
92015
92015
92022
92022
92022
92027
92027
92093
92144
92150
92150
92150
92151
92160
92160A
92160B
92160B
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
BOLT-FLANGED-SMALL | 132 | 132G0635 | 1 | ||
BOLT-FLANGED-SMALL | 132A | 132G0640 | 1 | ||
O RING | 670 | 670E3042 | 2 | ||
GASKET,EXHAUST PIPE | 11060 | 11060-1370 | 1 | ||
BAFFLE | 18020 | 18020-1271 | 1 | ||
WOOL | 18046 | 18046-1555 | 1 | ||
BODY-ASSY-MUFFLER | 18100 | 18100-1086 | 1 | ||
CHAMBER-EXHAUST | 18120 | 18120-1088 | 1 | ||
NUT,FLANGED,6MM | 92015 | 92015-1078 | 3 | ||
WASHER,6.5X22X1.6 | 92022 | 92022-237 | 3 | ||
COLLAR,6.8X10X10.5 | 92027 | 92027-120 | 2 | ||
SEAL,MUFFLER CONNECTING | 92093 | 92093-1363 | 1 | ||
SPRING,EXHAUST CONNECTING | 92144 | 92144-1470 | 2 | ||
BOLT,6X12 | 92150 | 92150-1435 | 3 | ||
BOLT,6X10 | 92151 | 92151-1822 | 4 | ||
DAMPER,MUFFLER,FR | 92160 | 92160-1176 | 1 | ||
DAMPER,MUFFLER,RR | 92160A | 92160-1201 | 1 | ||
DAMPER,MUFFLER FITTING | 92160B | 92160-1913 | 2 |
