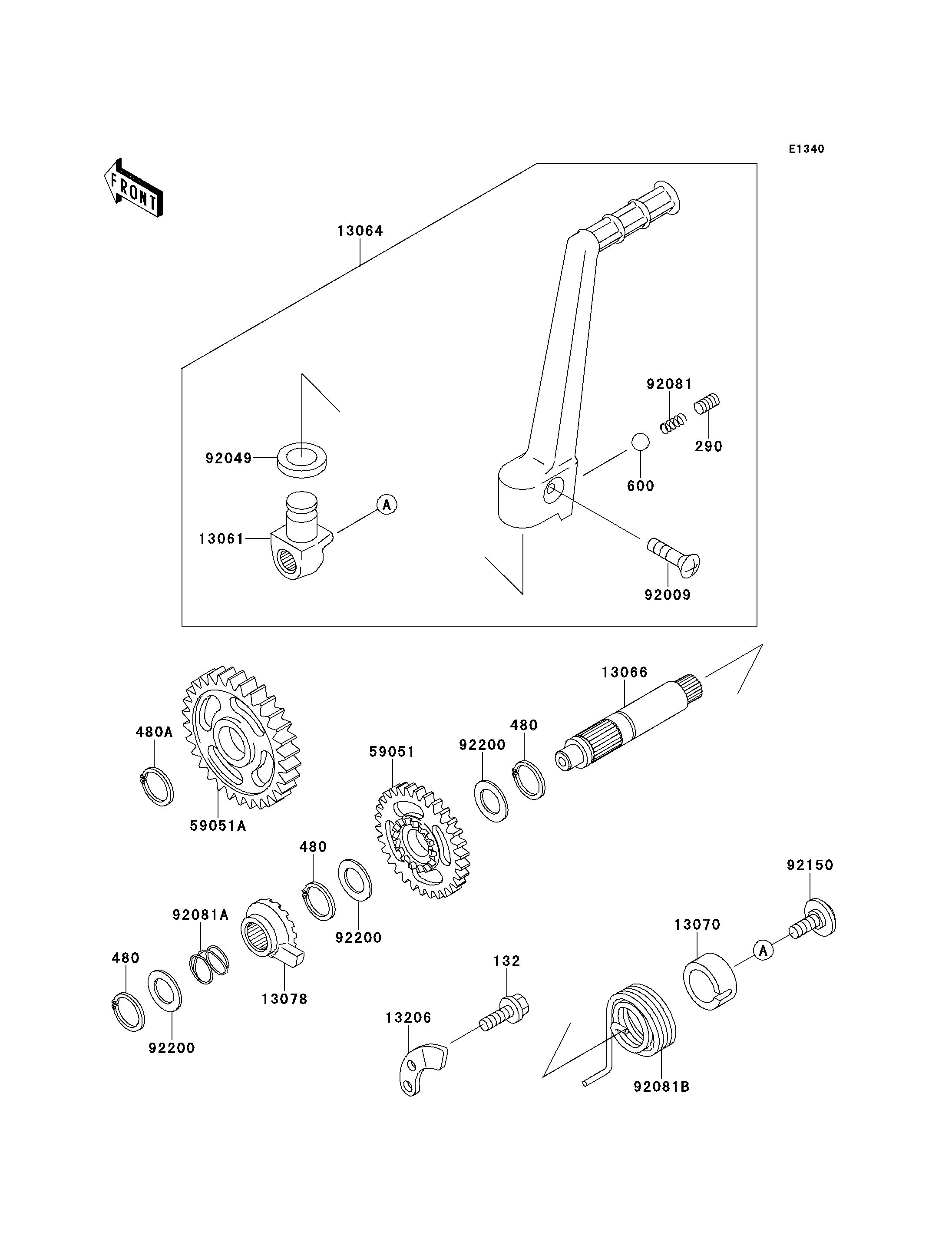

2001 KX125 - Kickstarter Mechanism

DOWNLOAD PDF
SELECT A NEW PART
132
290
480
480
480
480A
600
13061
13064
13066
13070
13078
13206
59051
59051A
92009
92049
92081
92081A
92081B
92150
92200
92200
92200
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED-SMALL 132 132G0616 1
SCREW-SET-SOCKET 290 290P0808 1
CIRCLIP-TYPE-C,16MM 480 480J1600 3
CIRCLIP-TYPE-C,17MM 480A 480J1700 1
BALL-STEEL,1/4" 600 600A0800 1
BOSS,KICK 13061 13061-1713 1
LEVER-ASSY-KICK,PEDAL 13064 13064-1189 1
SHAFT-KICK 13066 13066-1101 1
GUIDE,KICK SPRING 13070 13070-1007 1
RATCHET 13078 13078-1052 1
GUIDE-KICK 13206 13206-1061 1
GEAR-SPUR,KICK,30T 59051 59051-1364 1
GEAR-SPUR,IDLER,31T 59051A 59051-1365 1
SCREW,6X27 92009 92009-1607 1
SEAL-OIL,KICK PEDAL 92049 92049-1387 1
SPRING,KICK PEDAL 92081 92081-020 1
SPRING,RATCHET 92081A 92081-122 1
SPRING,KICKSTARTER 92081B 92081-1768 1
BOLT,SOCKET,6X16 92150 92150-1673 1
WASHER,KICKSHAFT 92200 92200-1209 3
