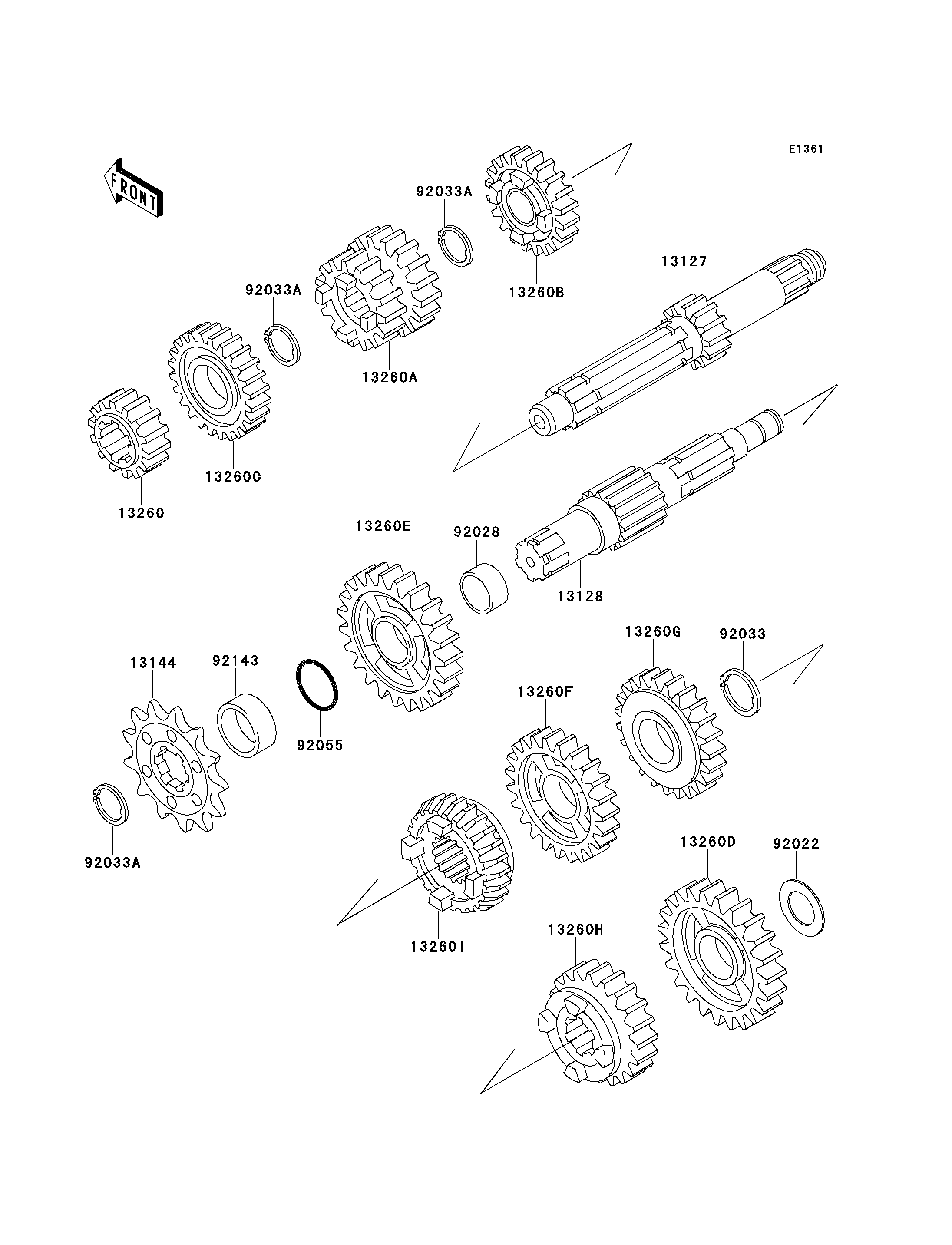

Parts Diagrams |
13127
13128
13144
13260
13260A
13260B
13260C
13260D
13260E
13260F
13260G
13260H
13260I
92022
92028
92033
92033A
92033A
92033A
92055
92143
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| SHAFT-TRANSMISSION INPUT,13T | 13127 | 13127-1229 | 1 | ||
| SHAFT-TRANSMISSION OUTPUT | 13128 | 13128-1231 | 1 | ||
| SPROCKET-OUTPUT,12T | 13144 | 13144-1293 | 1 | ||
| GEAR,INPUT 2ND,14T | 13260 | 13260-1748 | 1 | ||
| GEAR,INPUT 3RD&4TH,17T&17T | 13260A | 13260-1749 | 1 | ||
| GEAR,INPUT 5TH,24T | 13260B | 13260-1750 | 1 | ||
| GEAR,INPUT TOP,25T | 13260C | 13260-1751 | 1 | ||
| GEAR,OUTPUT LOW,31T | 13260D | 13260-1752 | 1 | ||
| GEAR,OUTPUT 2ND,26T | 13260E | 13260-1753 | 1 | ||
| GEAR,OUTPUT 3RD,26T | 13260F | 13260-1754 | 1 | ||
| GEAR,OUTPUT 4TH,22T | 13260G | 13260-1755 | 1 | ||
| GEAR,OUTPUT 5TH,27T | 13260H | 13260-1756 | 1 | ||
| GEAR,OUTPUT TOP,25T | 13260I | 13260-1757 | 1 | ||
| WASHER,17.3X28X1 | 92022 | 92022-255 | 1 | ||
| BUSHING,OUTPUT,2ND | 92028 | 92028-1732 | 1 | ||
| RING-SNAP,25MM | 92033 | 92033-1089 | 1 | ||
| RING-SNAP,20MM | 92033A | 92033-1231 | 3 | ||
| RING-O | 92055 | 92055-035 | 1 | ||
| COLLAR | 92143 | 92143-1705 | 1 |
| SHAFT-TRANSMISSION INPUT,13T | |
| REF # | 13127 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SHAFT-TRANSMISSION OUTPUT | |
| REF # | 13128 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPROCKET-OUTPUT,12T | |
| REF # | 13144 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GEAR,INPUT 2ND,14T | |
| REF # | 13260 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GEAR,INPUT 3RD&4TH,17T&17T | |
| REF # | 13260A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GEAR,INPUT 5TH,24T | |
| REF # | 13260B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GEAR,INPUT TOP,25T | |
| REF # | 13260C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GEAR,OUTPUT LOW,31T | |
| REF # | 13260D |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GEAR,OUTPUT 2ND,26T | |
| REF # | 13260E |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GEAR,OUTPUT 3RD,26T | |
| REF # | 13260F |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GEAR,OUTPUT 4TH,22T | |
| REF # | 13260G |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GEAR,OUTPUT 5TH,27T | |
| REF # | 13260H |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GEAR,OUTPUT TOP,25T | |
| REF # | 13260I |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER,17.3X28X1 | |
| REF # | 92022 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BUSHING,OUTPUT,2ND | |
| REF # | 92028 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RING-SNAP,25MM | |
| REF # | 92033 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RING-SNAP,20MM | |
| REF # | 92033A |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| RING-O | |
| REF # | 92055 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COLLAR | |
| REF # | 92143 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
