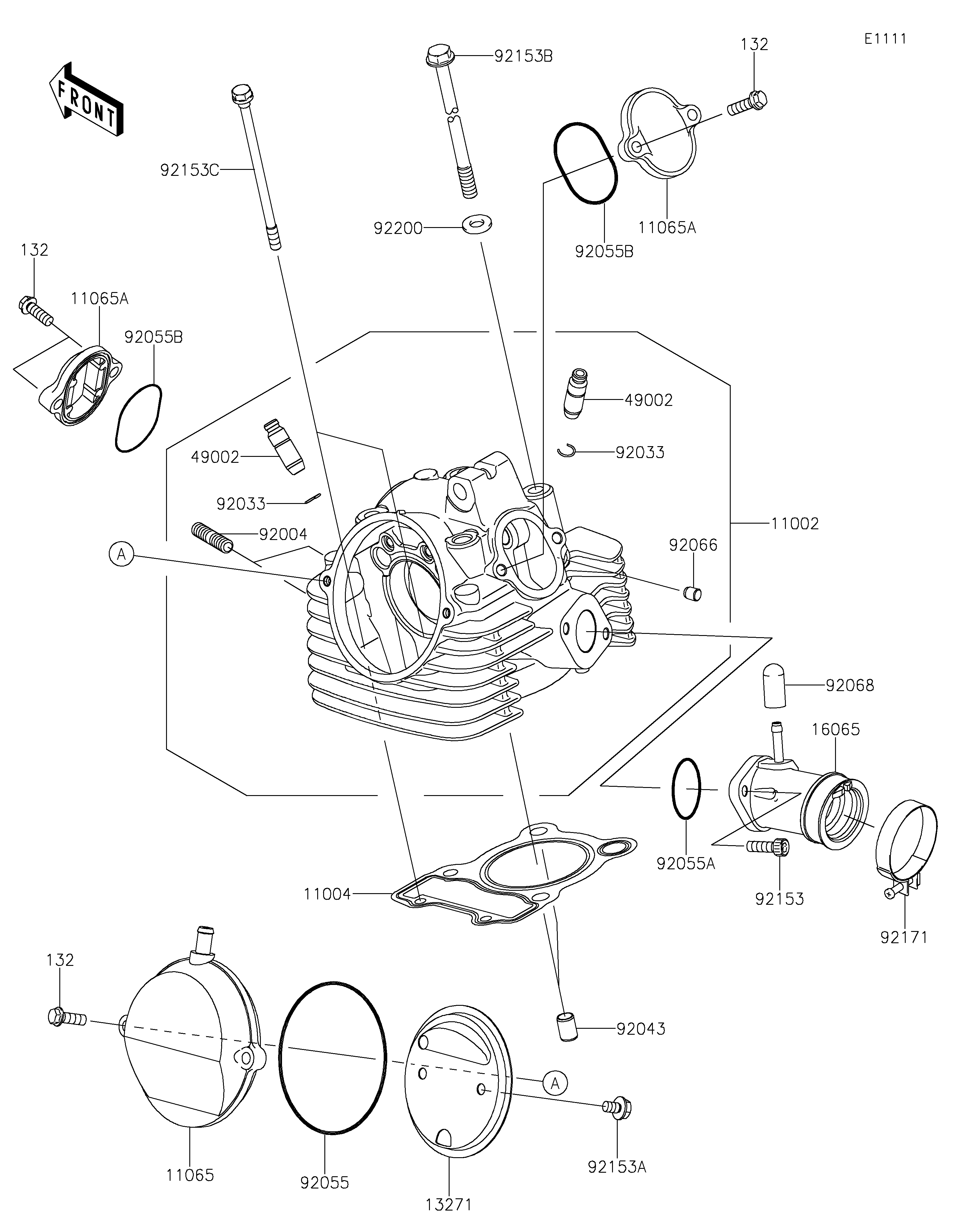

Parts Diagrams |
11002
11004
11065
11065A
11065A
132
132
132
13271
16065
49002
49002
92004
92033
92033
92043
92055
92055A
92055B
92055B
92066
92068
92153
92153A
92153B
92153C
92171
92200
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
HEAD-ASSY-CYLINDER | 11002 | 11002-0061 | 1 | ||
GASKET-HEAD | 11004 | 11004-0065 | 1 | ||
CAP | 11065 | 11065-0212 | 1 | ||
CAP,VALVE ADJUSTING | 11065A | 11065-0252 | 2 | ||
BOLT-FLANGED-SMALL,6X20 | 132 | 132BA0620 | 6 | ||
PLATE,BREATHER | 13271 | 13271-1844 | 1 | ||
HOLDER-CARBURETOR | 16065 | 16065-0054 | 1 | ||
GUIDE-VALVE | 49002 | 49002-0019 | 2 | ||
STUD,8X22 | 92004 | 92004-1217 | 2 | ||
RING-SNAP | 92033 | 92033-1247 | 2 | ||
PIN,8.2X10X14 | 92043 | 92043-1264 | 2 | ||
RING-O,86X1.9 | 92055 | 92055-0202 | 1 | ||
RING-O,32MM | 92055A | 92055-1256 | 1 | ||
RING-O,ADJUST CAP | 92055B | 92055-1655 | 2 | ||
PLUG,OIL LINE,7.2X8 | 92066 | 92066-1012 | 1 | ||
PLUG,12X25 | 92068 | 92068-006 | 1 | ||
BOLT,6X20 | 92153 | 92153-0481 | 2 | ||
BOLT,6X10 | 92153A | 92153-1140 | 2 | ||
BOLT,8X201 | 92153B | 92153-1141 | 4 | ||
BOLT,FLANGED,6X110 | 92153C | 92153-1970 | 2 | ||
CLAMP | 92171 | 92171-0691 | 1 | ||
WASHER,8.2X17X2.3 | 92200 | 92200-1631 | 4 |
HEAD-ASSY-CYLINDER | |
REF # | 11002 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
GASKET-HEAD | |
REF # | 11004 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CAP | |
REF # | 11065 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CAP,VALVE ADJUSTING | |
REF # | 11065A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BOLT-FLANGED-SMALL,6X20 | |
REF # | 132 |
---|---|
PART NUMBER | |
QUANTITY | 6 |
DESTINATION | |
REMARKS |
PLATE,BREATHER | |
REF # | 13271 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
HOLDER-CARBURETOR | |
REF # | 16065 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
GUIDE-VALVE | |
REF # | 49002 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
STUD,8X22 | |
REF # | 92004 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
RING-SNAP | |
REF # | 92033 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
PIN,8.2X10X14 | |
REF # | 92043 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
RING-O,86X1.9 | |
REF # | 92055 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
RING-O,32MM | |
REF # | 92055A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
RING-O,ADJUST CAP | |
REF # | 92055B |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
PLUG,OIL LINE,7.2X8 | |
REF # | 92066 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PLUG,12X25 | |
REF # | 92068 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT,6X20 | |
REF # | 92153 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BOLT,6X10 | |
REF # | 92153A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BOLT,8X201 | |
REF # | 92153B |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
BOLT,FLANGED,6X110 | |
REF # | 92153C |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
CLAMP | |
REF # | 92171 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
WASHER,8.2X17X2.3 | |
REF # | 92200 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
