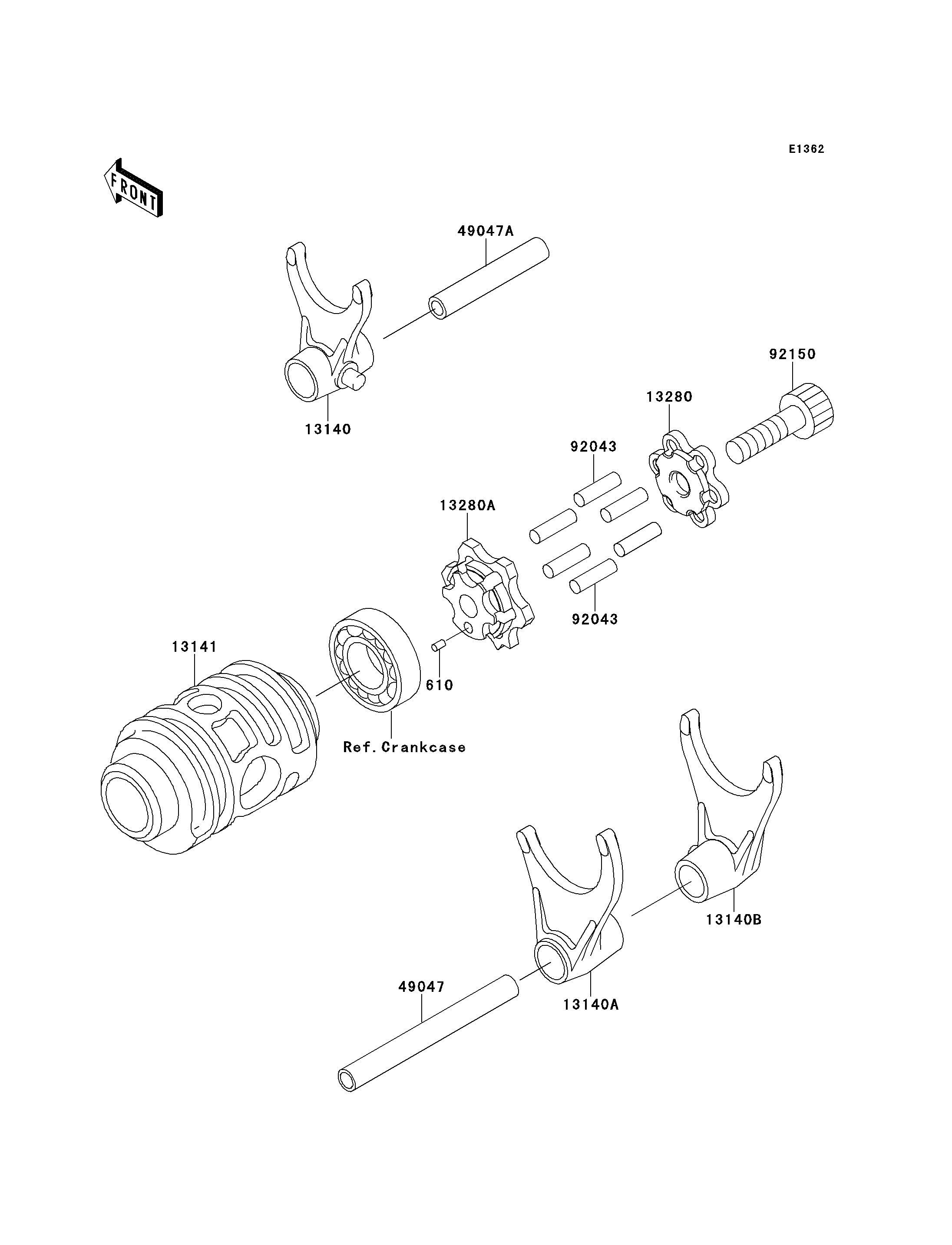

610
13140
13140A
13140B
13141
13280
13280A
49047
49047A
92043
92043
92150
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
ROLLER,4X8 610 610A0408 1
FORK-SHIFT,2ND&3RD 13140 13140-1251 1
FORK-SHIFT,LOW&4TH 13140A 13140-1252 1
FORK-SHIFT,5TH&TOP 13140B 13140-1253 1
DRUM-CHANGE 13141 13141-1188 1
HOLDER 13280 13280-1182 1
HOLDER 13280A 13280-1223 1
ROD-SHIFT,L=94 49047 49047-1086 1
ROD-SHIFT,L=77.5 49047A 49047-1087 1
PIN,17.9X5.0 92043 92043-1444 6
BOLT,SOCKET,8X30 92150 92150-1604 1
