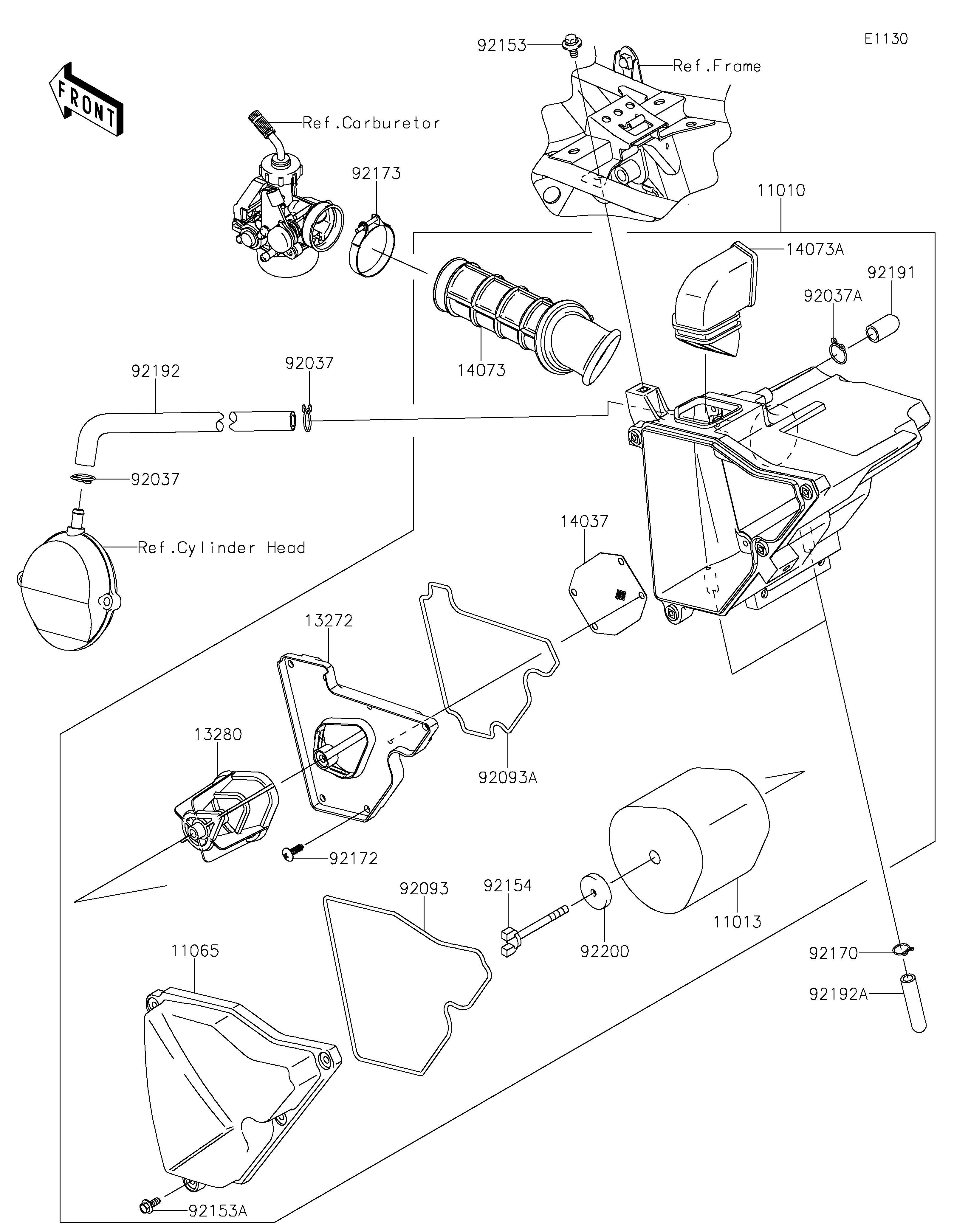

2021 KLX®140R L - Air Cleaner

DOWNLOAD PDF
SELECT A NEW PART
11010
11013
11065
13272
13280
14037
14073
14073A
92037
92037
92037A
92093
92093A
92153
92153A
92154
92170
92172
92173
92191
92192
92192A
92200
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
FILTER-ASSY-AIR,F.BLACK 11010 11010-0939-6Z 1
ELEMENT-AIR FILTER 11013 11013-0796 1
CAP,F.BLACK 11065 11065-0210-6Z 1
PLATE 13272 13272-1883 1
HOLDER 13280 13280-0831 1
SCREEN 14037 14037-0074 1
DUCT,CARB. 14073 14073-0171 1
DUCT,INTAKE 14073A 14073-0791 1
CLAMP,12.5MM 92037 92037-1271 2
CLAMP,14.5MM 92037A 92037-1900 1
SEAL,L=620 92093 92093-0094 1
SEAL,L=520 92093A 92093-0103 1
BOLT,FLANGED,6X14 92153 92153-0936 1
BOLT,WP,5X14 92153A 92153-1882 4
BOLT,6X60 92154 92154-2790 1
CLAMP,11.6MM 92170 92170-1796 2
SCREW,5X16 92172 92172-1211 5
CLAMP 92173 92173-0991 1
TUBE,DRAIN 92191 92191-1685 1
TUBE,BREATHER 92192 92192-0473 1
TUBE,A/C-DRAIN 92192A 92192-0921 2
WASHER,6.5X26X2 92200 92200-0394 1
