12046
12048
12053
12053A
14014
411
49118
670
670A
92057
92122
92153
92153A
92154
92154A
92172

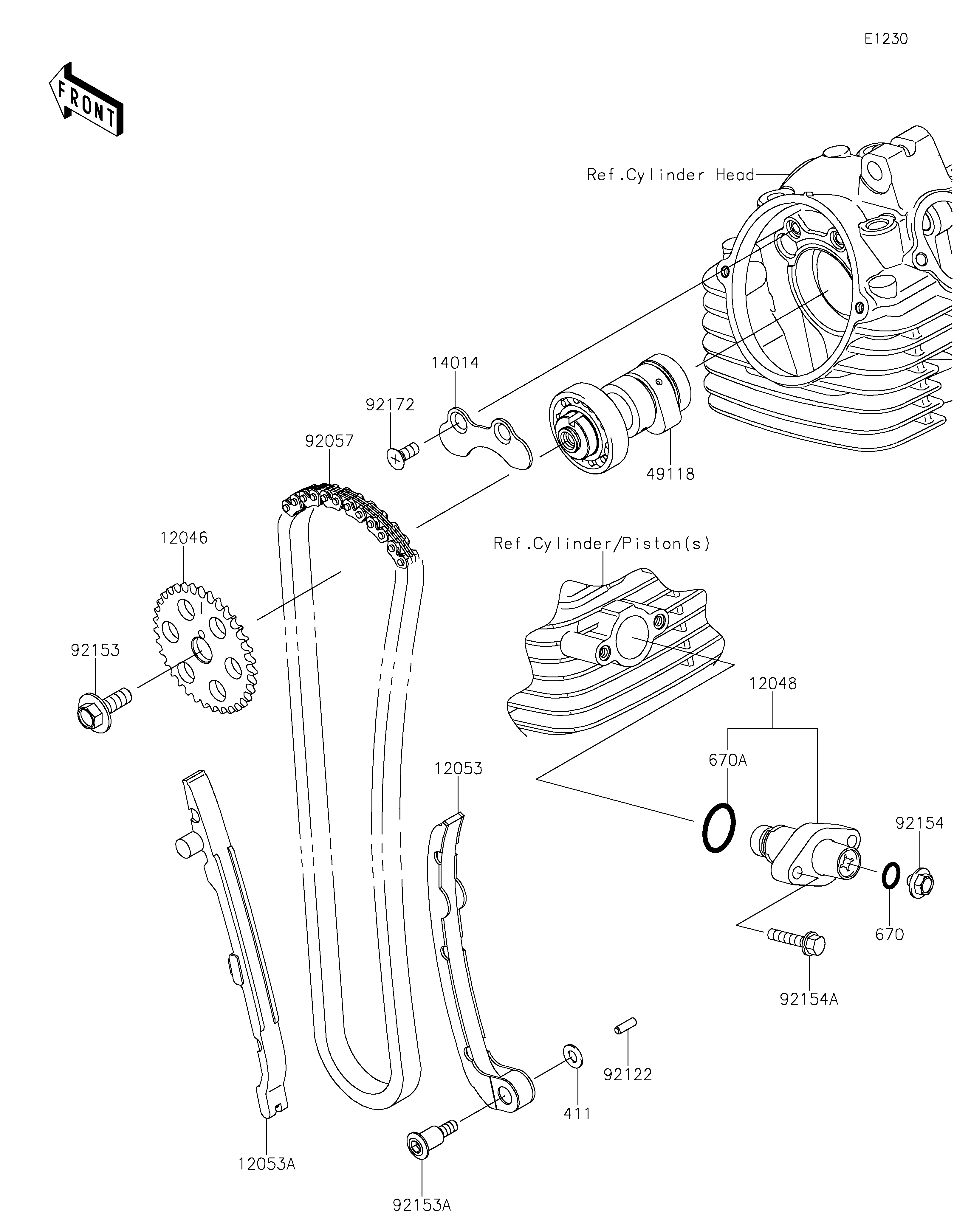

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SPROCKET,36T 12046 12046-0084 1
TENSIONER-ASSY 12048 12048-0052 1
GUIDE-CHAIN,RR 12053 12053-0126 1
GUIDE-CHAIN,FR 12053A 12053-0127 1
PLATE-POSITION 14014 14014-1154 1
WASHER-PLAIN,6MM 411 411AA0600 1
CAMSHAFT-COMP 49118 49118-0893 1
O RING,10MM 670 670D2010 1
O RING,21MM 670A 670D2021 1
CHAIN,CAM 92057 92057-0691 1
ROLLER 92122 92122-0011 1
BOLT,8X23 92153 92153-1156 1
BOLT,6X26.5 92153A 92153-1157 1
BOLT 92154 92154-0281 1
BOLT,FLANGED,6X25 92154A 92154-1196 2
SCREW,6X14 92172 92172-1055 2
