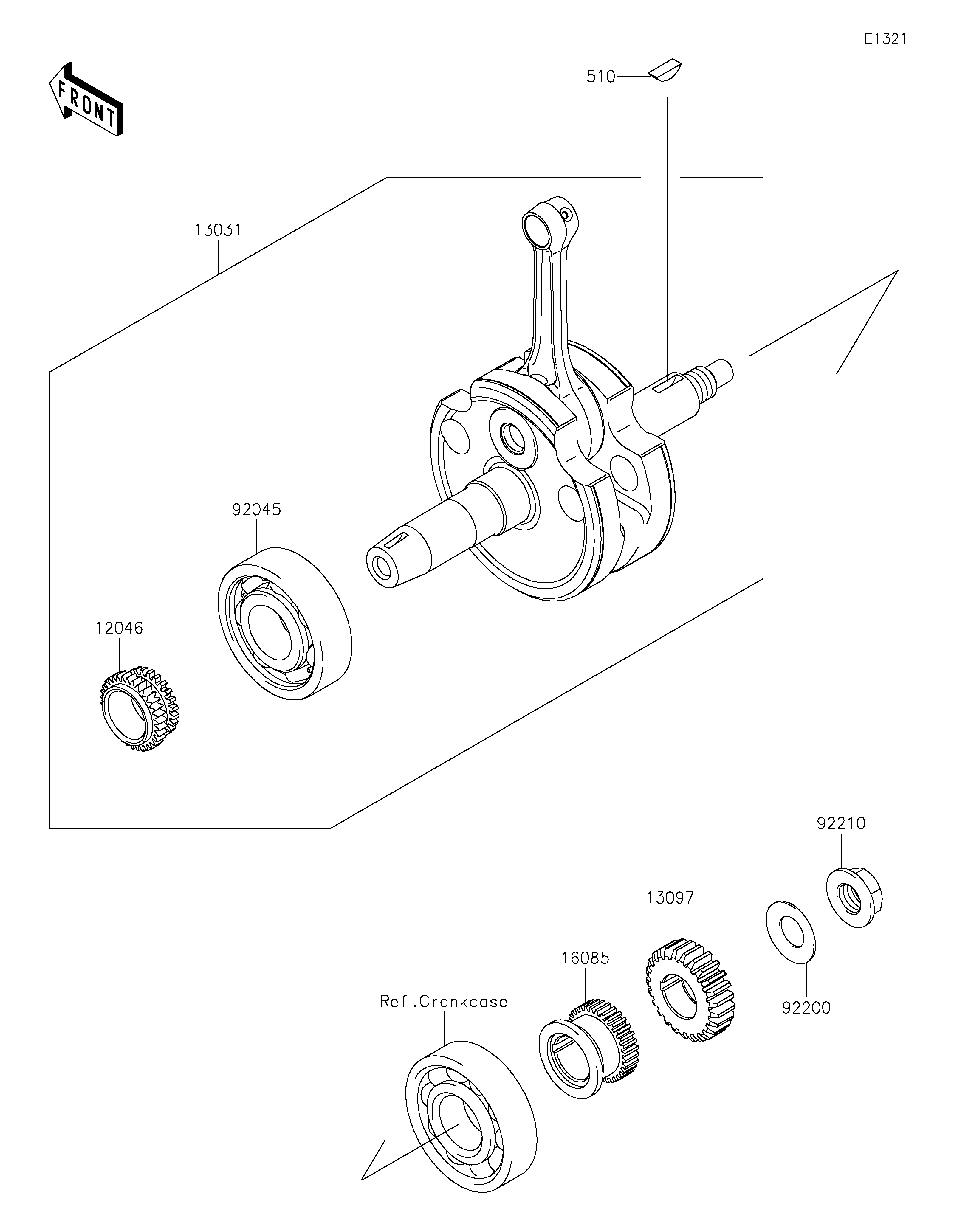

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SPROCKET,18T 12046 12046-0061 1
CRANKSHAFT-COMP 13031 13031-0865 1
GEAR-PRIMARY SPUR,25T 13097 13097-0559 1
GEAR,21T 16085 16085-0118 1
KEY-WOODRUFF 510 510A4200 1
BEARING-BALL,6305JR2C3 92045 92045-1120 1
WASHER,14.2X28X1.5 92200 92200-0217 1
NUT,14MM,LEFT HANDED 92210 92210-0600 1
