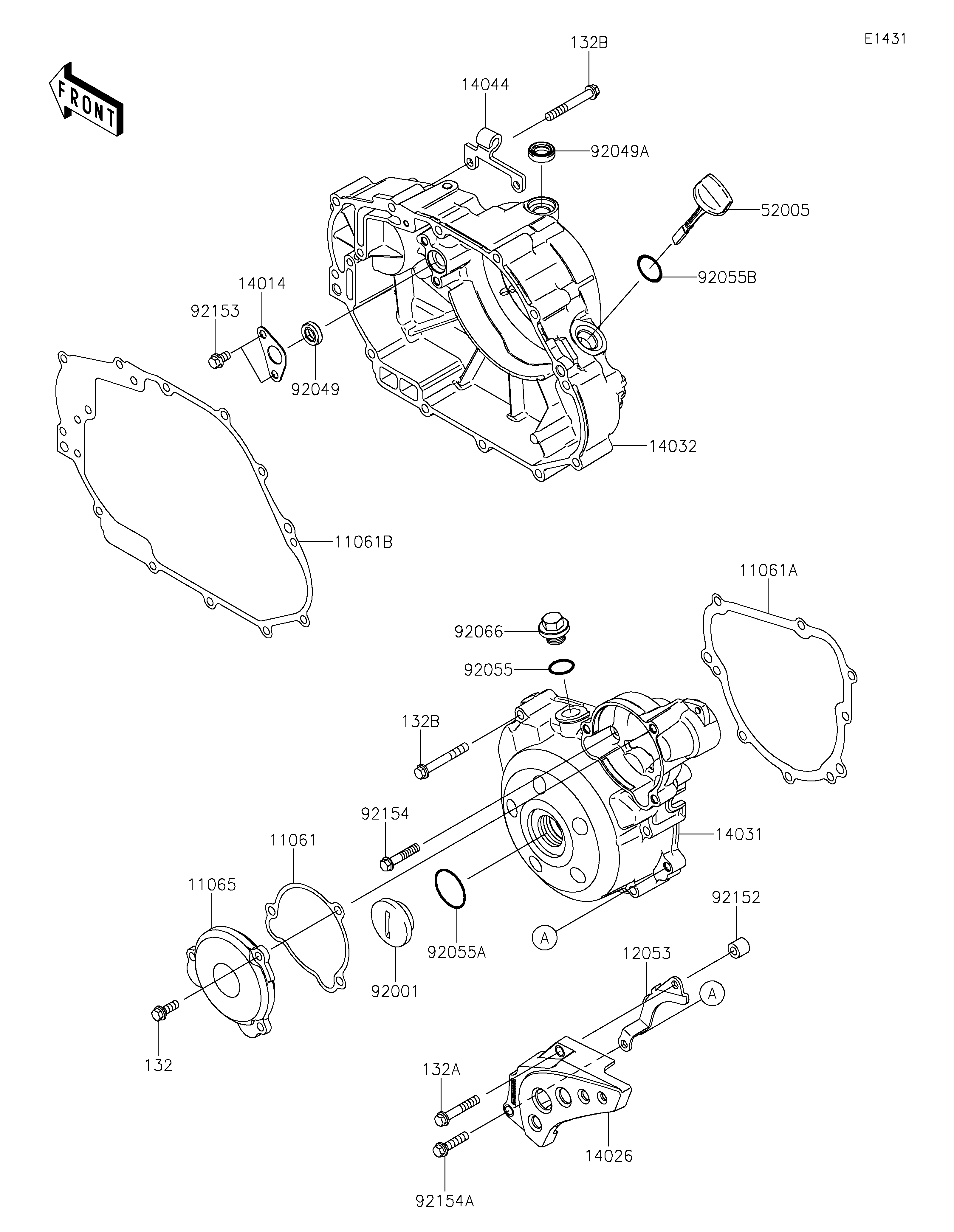

2021 KLX®140R L - Engine Cover(s)

DOWNLOAD PDF
SELECT A NEW PART
11061
11061A
11061B
11065
12053
132
132A
132B
132B
14014
14026
14031
14032
14044
52005
92001
92049
92049A
92055
92055A
92055B
92066
92152
92153
92154
92154A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET 11061 11061-0300 1
GASKET,GENERATOR COVER 11061A 11061-0820 1
GASKET,CLUTCH COVER 11061B 11061-1315 1
CAP 11065 11065-0209 1
GUIDE-CHAIN 12053 12053-0134 1
BOLT-FLANGED-SMALL,6X16 132 132BA0616 3
BOLT-FLANGED-SMALL,6X35 132A 132BA0635 1
BOLT-FLANGED-SMALL,6X45 132B 132BA0645 18
PLATE-POSITION 14014 14014-1153 1
COVER-CHAIN 14026 14026-0084 1
COVER-GENERATOR 14031 14031-0116 1
COVER-CLUTCH 14032 14032-0116 1
HOLDER-CABLE 14044 14044-0044 1
GAUGE,OIL LEVEL 52005 52005-0724 1
BOLT,GENERATOR COVER CAP 92001 92001-1827 1
SEAL-OIL,10X18X5 92049 92049-0104 1
SEAL-OIL,12X20X5.5 92049A 92049-0142 1
RING-O,14.8X2.4 92055 92055-0153 1
RING-O,25.7X2.4 92055A 92055-0154 1
RING-O,20X2 92055B 92055-0155 1
PLUG,14X10 92066 92066-1571 1
COLLAR,6.5X12X11 92152 92152-0692 1
BOLT,6X10 92153 92153-1140 2
BOLT,FLANGED,6X30 92154 92154-1080 2
BOLT,FLANGED,6X25 92154A 92154-2154 1
