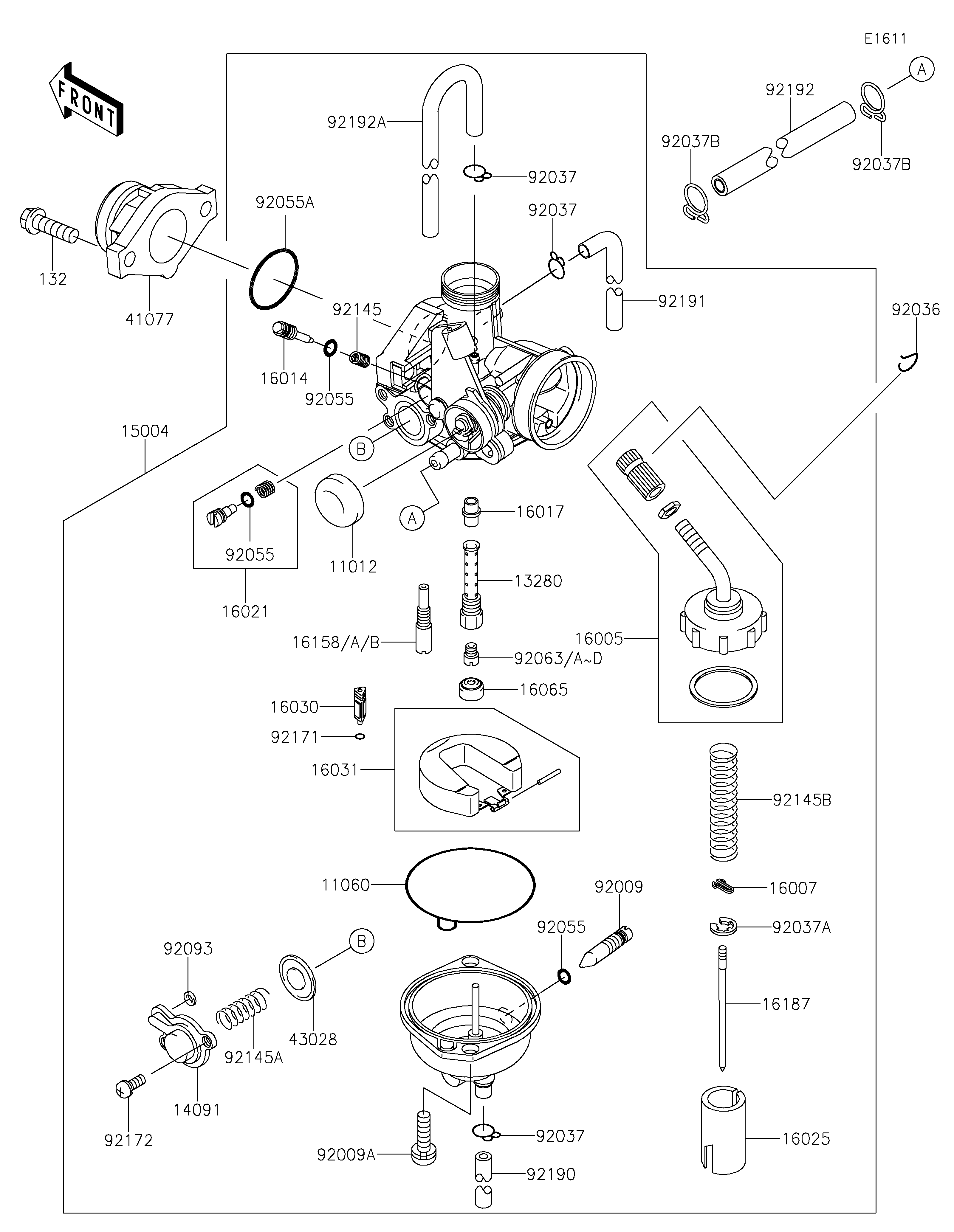

2021 KLX®140R L - Carburetor

DOWNLOAD PDF
SELECT A NEW PART
11012
11012
11060
11060
13280
13280
14091
14091
15004
15004
16005
16005
16007
16007
16014
16014
16017
16017
16021
16021
16025
16025
16030
16030
16031
16031
16065
16065
16158
16158
16158A
16158A
16158B
16158B
16187
16187
41077
41077
43028
43028
92009
92009
92009A
92009A
92036
92036
92037
92037
92037
92037
92037
92037
92037A
92037A
92037B
92037B
92037B
92037B
92055
92055
92055
92055
92055
92055
92055A
92055A
92063
92063
92063A
92063A
92063B
92063B
92063C
92063C
92063D
92063D
92093
92093
132
132
92145
92145
92145A
92145A
92145B
92145B
92171
92171
92172
92172
92190
92190
92191
92191
92192
92192
92192A
92192A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAP,CHOKE 11012 11012-1940 1
GASKET,FLOAT CHAMBER 11060 11060-1700 1
HOLDER,NEEDLE JET 13280 13280-0286 1
COVER 14091 14091-0285 1
CARBURETOR-ASSY,PB20 15004 15004-0024 1
TOP-CHAMBER 16005 16005-1091 1
SEAT-SPRING 16007 16007-1103 1
SCREW-PILOT AIR 16014 16014-0011 1
JET-NEEDLE 16017 16017-0014 1
SCREW-THROTTLE STOP 16021 16021-1203 1
VALVE-THROTTLE 16025 16025-0015 1
VALVE-FLOAT 16030 16030-0003 1
FLOAT 16031 16031-0004 1
HOLDER-CARBURETOR,JET 16065 16065-1106 1
JET-SLOW,#35 16158 16158-0004 AR (OPTION)
JET-SLOW,#40 16158A 16158-0005 AR (OPTION)
JET-SLOW,#38 16158B 16158-1063 1
NEEDLE-JET,NNAA 16187 16187-0283 1
ADAPTER 41077 41077-0038 1
DIAPHRAGM 43028 43028-0003 1
SCREW,DRAIN 92009 92009-1057 1
SCREW 92009A 92009-1750 2
RING-SNAP 92036 92036-018 1
CLAMP,TUBE 92037 92037-1142 3
CLAMP,JET NEEDLE 92037A 92037-1401 1
CLAMP 92037B 92037-1712 2
RING-O 92055 92055-1053 3
RING-O 92055A 92055-1541 1
JET-MAIN,#90 92063 92063-0013 AR (OPTION)
JET-MAIN,#92 92063A 92063-0014 AR (OPTION)
JET-MAIN,#95 92063B 92063-0015 1
JET-MAIN,#98 92063C 92063-0016 AR (OPTION)
JET-MAIN,#100 92063D 92063-0017 AR (OPTION)
SEAL,U-RING 92093 92093-1046 1
BOLT-FLANGED-SMALL,6X20 132 132BC0620 2
SPRING 92145 92145-0004 1
SPRING 92145A 92145-0217 1
SPRING 92145B 92145-0610 1
CLAMP 92171 92171-1837 1
SCREW 92172 92172-0165 2
TUBE,3.5X6.5X240 92190 92190-1218 1
TUBE,3.5X6.5X298 92191 92191-1142 1
TUBE,5X10X150 92192 92192-0477 1
TUBE,3.5X6.5X18/320 92192A 92192-0690 1
