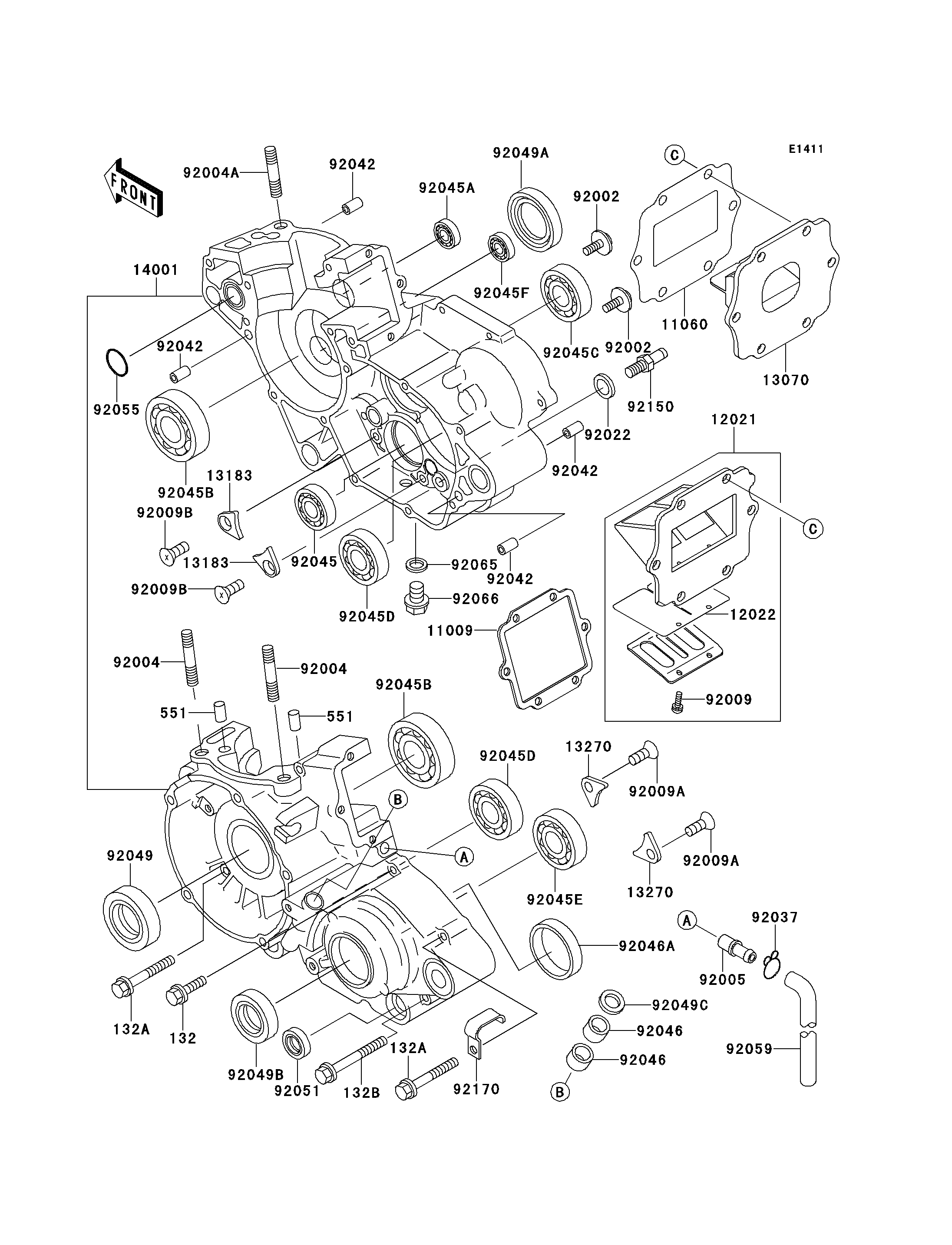

2001 KX125 - Crankcase

DOWNLOAD PDF
SELECT A NEW PART
132
132
132A
132A
132A
132A
11009
11009
11060
11060
12021
12021
12022
12022
13070
13070
13183
13183
13183
13183
13270
13270
13270
13270
14001
14001
92002
92002
92002
92002
92004
92004
92004
92004
92004A
92004A
92005
92005
92009
92009
92009A
92009A
92009A
92009A
92009B
92009B
92009B
92009B
92022
92022
92037
92037
92042
92042
92042
92042
92042
92042
92042
92042
92045
92045
92045A
92045A
92045B
92045B
92045B
92045B
92045C
92045C
92045D
92045D
92045D
92045D
92045E
92045E
92045F
92045F
92046
92046
92046
92046
92046A
92046A
92049
92049
92049A
92049A
92049B
92049B
92049C
92049C
92051
92051
92055
92055
92059
92059
92065
92065
92066
92066
92150
92150
92170
92170
132B
132B
551
551
551
551
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED-SMALL 132 132G0620 1
BOLT-FLANGED-SMALL 132A 132G0640 12
GASKET,REED VALVE 11009 11009-1941 1
GASKET,REED VALVE 11060 11060-1997 1
VALVE-ASSY-REED 12021 12021-1116 1
VALVE-REED 12022 12022-1080 2
GUIDE,REED VALVE 13070 13070-1359 1
PLATE 13183 13183-1182 2
PLATE 13270 13270-1638 2
SET-CRANKCASE 14001 14001-1278 1
BOLT,6X16 92002 92002-1659 2
STUD,8X35 92004 92004-1251 3
STUD,8X28.5 92004A 92004-1252 1
FITTING,BREATHER 92005 92005-1127 1
SCREW,3X6 92009 92009-1371 4
SCREW,6X8 92009A 92009-1708 2
SCREW,6X14 92009B 92009-1958 2
WASHER,10.2X18X1.0,SK5 92022 92022-1415 1
CLAMP 92037 92037-1610 1
PIN,DOWEL,6.3X8X14 92042 92042-007 4
BEARING-BALL,6905Z 92045 92045-1058 1
BEARING-BALL,#628 92045A 92045-1123 1
BEARING-BALL 92045B 92045-1209 2
BEARING-BALL,6204X15C 92045C 92045-1298 1
BEARING-BALL,SC03A53C3 92045D 92045-1334 2
BEARING-BALL,SX04A81C3 92045E 92045-1335 1
BEARING-BALL 92045F 92045-1345 1
BEARING-NEEDLE,HK1010 92046 92046-1160 2
BEARING-NEEDLE,7E-HKS33X38X8 92046A 92046-1221 1
SEAL-OIL 92049 92049-1300 1
SEAL-OIL 92049A 92049-1301 1
SEAL-OIL 92049B 92049-1413 1
SEAL-OIL,BG1408F0 92049C 92049-1414 1
SEAL-OIL,TB13225.5 92051 92051-005 1
RING-O 92055 92055-086 1
TUBE,6X9X420 92059 92059-1946 1
GASKET,10.5X16X1 92065 92065-058 1
PLUG,DRAIN 92066 92066-1437 1
BOLT,RETURN SPRING 92150 92150-1803 1
CLAMP 92170 92170-1555 1
BOLT-FLANGED-SMALL 132B 132G0675 1
PIN-DOWEL,6X12 551 551A0612 2
