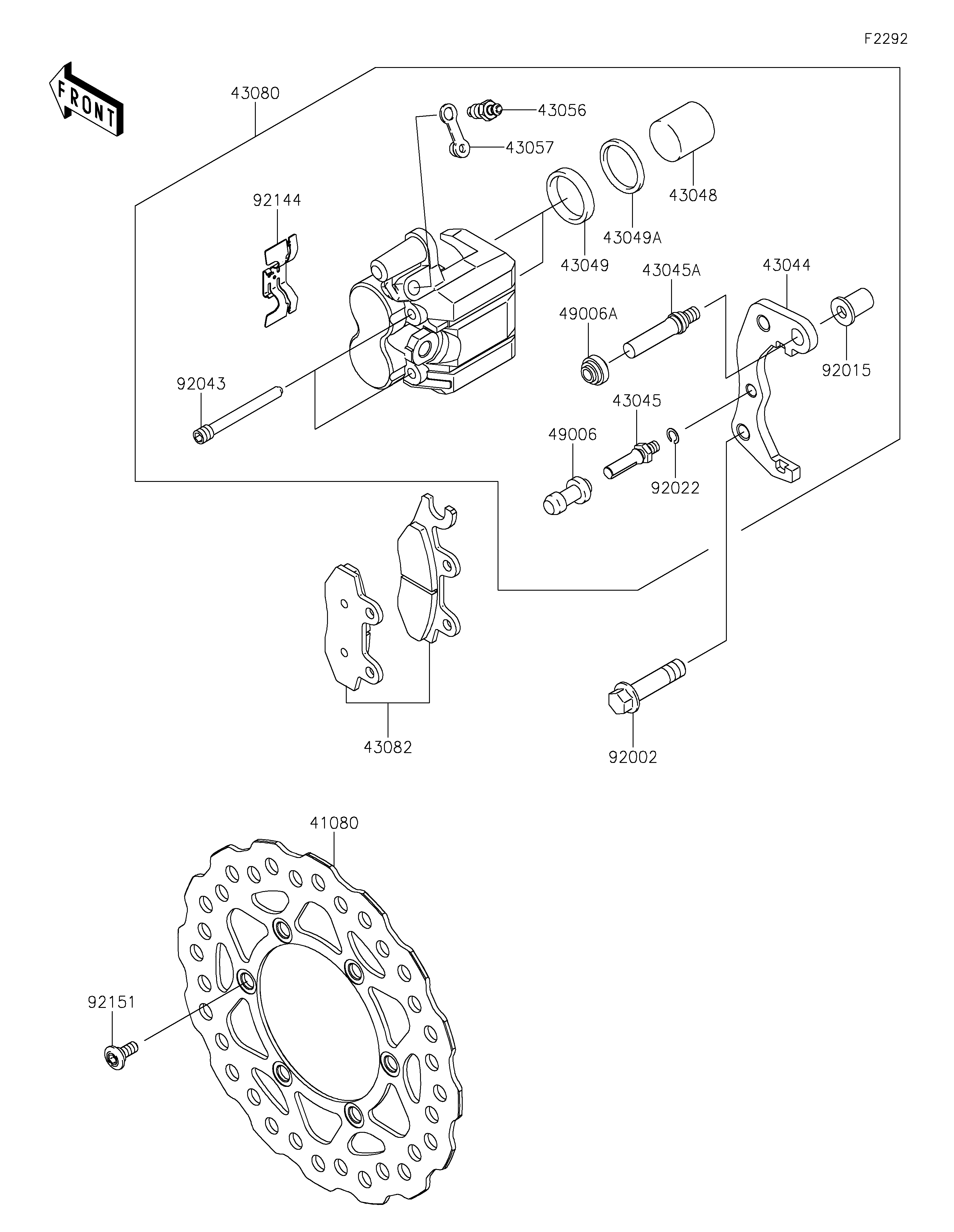

Parts Diagrams |
41080
43044
43045
43045A
43048
43049
43049A
43056
43057
43080
43082
49006
49006A
92002
92015
92022
92043
92144
92151
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
DISC,FR | 41080 | 41080-0118 | 1 | ||
HOLDER-COMP-CALIPER,FR,LH | 43044 | 43044-0006 | 1 | ||
SHAFT-CALIPER | 43045 | 43045-1010 | 1 | ||
SHAFT-CALIPER | 43045A | 43045-1052 | 1 | ||
PISTON-CALIPER | 43048 | 43048-0010 | 2 | ||
PACKING,PISTON SEAL | 43049 | 43049-1060 | 2 | ||
PACKING,PISTON SEAL | 43049A | 43049-1061 | 2 | ||
BREATHER-BRAKE | 43056 | 43056-0004 | 1 | ||
CAP-BREATHER | 43057 | 43057-1001 | 1 | ||
CALIPER-SUB-ASSY,FR | 43080 | 43080-0052 | 1 | ||
PAD-ASSY-BRAKE | 43082 | 43082-0075 | 1 | ||
BOOT,CALIPER | 49006 | 49006-1088 | 1 | ||
BOOT,CALIPER | 49006A | 49006-1242 | 1 | ||
BOLT,FLANGED,10X41 | 92002 | 92002-1468 | 2 | ||
NUT | 92015 | 92015-1740 | 1 | ||
WASHER,WAVE | 92022 | 92022-1373 | 1 | ||
PIN,HANGER | 92043 | 92043-1416 | 2 | ||
SPRING,PAD | 92144 | 92144-1847 | 1 | ||
BOLT,DISC PLATE,6MM | 92151 | 92151-1799 | 6 |
DISC,FR | |
REF # | 41080 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
HOLDER-COMP-CALIPER,FR,LH | |
REF # | 43044 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SHAFT-CALIPER | |
REF # | 43045 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SHAFT-CALIPER | |
REF # | 43045A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PISTON-CALIPER | |
REF # | 43048 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
PACKING,PISTON SEAL | |
REF # | 43049 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
PACKING,PISTON SEAL | |
REF # | 43049A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BREATHER-BRAKE | |
REF # | 43056 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CAP-BREATHER | |
REF # | 43057 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CALIPER-SUB-ASSY,FR | |
REF # | 43080 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PAD-ASSY-BRAKE | |
REF # | 43082 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOOT,CALIPER | |
REF # | 49006 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOOT,CALIPER | |
REF # | 49006A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT,FLANGED,10X41 | |
REF # | 92002 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
NUT | |
REF # | 92015 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
WASHER,WAVE | |
REF # | 92022 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PIN,HANGER | |
REF # | 92043 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
SPRING,PAD | |
REF # | 92144 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT,DISC PLATE,6MM | |
REF # | 92151 |
---|---|
PART NUMBER | |
QUANTITY | 6 |
DESTINATION | |
REMARKS |
