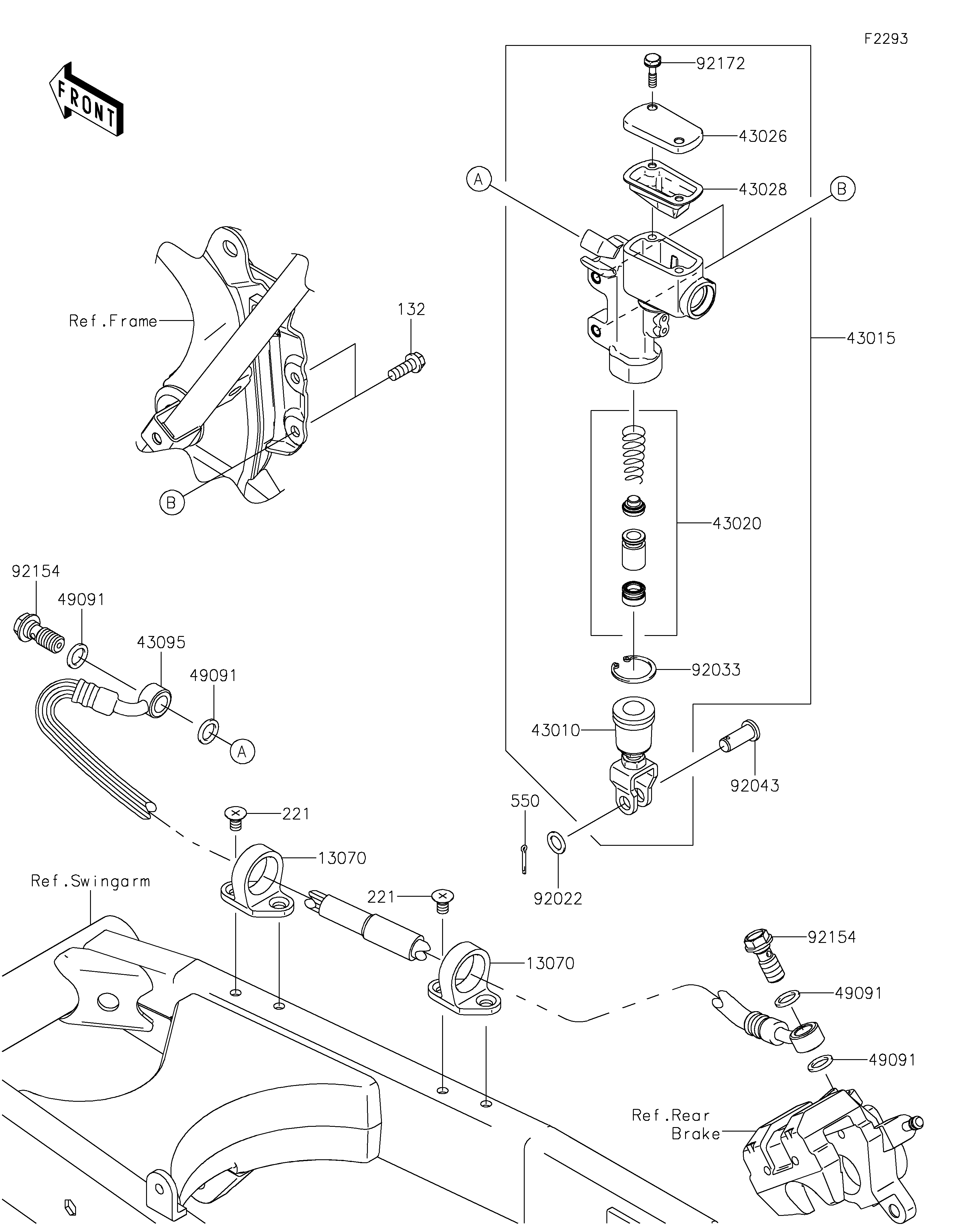

2021 KLX®140R L - Rear Master Cylinder
13070
13070
132
221
221
43010
43015
43020
43026
43028
43095
49091
49091
49091
49091
550
92022
92033
92043
92154
92154
92172
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
GUIDE,HOSE | 13070 | 13070-1144 | 2 | ||
BOLT-FLANGED-SMALL,6X16 | 132 | 132BA0616 | 2 | ||
SCREW-CSK-CROS,6X10 | 221 | 221AA0610 | 4 | ||
ROD-ASSY-BRAKE | 43010 | 43010-0006 | 1 | ||
CYLINDER-ASSY-MASTER,RR | 43015 | 43015-0099 | 1 | ||
PISTON-COMP-BRAKE | 43020 | 43020-1094 | 1 | ||
CAP-BRAKE | 43026 | 43026-0008 | 1 | ||
DIAPHRAGM | 43028 | 43028-1092 | 1 | ||
HOSE-BRAKE,RR | 43095 | 43095-0336 | 1 | ||
WASHER-SEAL,10.1X14.5X1.5 | 49091 | 49091-0001 | 4 | ||
PIN-COTTER,2.0X15 | 550 | 550AA2015 | 1 | ||
WASHER,8.5X13X1 | 92022 | 92022-1028 | 1 | ||
RING-SNAP,20.9X24.6X1.2 | 92033 | 92033-0079 | 1 | ||
PIN | 92043 | 92043-0004 | 1 | ||
BOLT,OIL,L=23 | 92154 | 92154-0226 | 2 | ||
SCREW | 92172 | 92172-0286 | 2 |
GUIDE,HOSE | |
REF # | 13070 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BOLT-FLANGED-SMALL,6X16 | |
REF # | 132 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
SCREW-CSK-CROS,6X10 | |
REF # | 221 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
ROD-ASSY-BRAKE | |
REF # | 43010 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CYLINDER-ASSY-MASTER,RR | |
REF # | 43015 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PISTON-COMP-BRAKE | |
REF # | 43020 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CAP-BRAKE | |
REF # | 43026 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
DIAPHRAGM | |
REF # | 43028 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
HOSE-BRAKE,RR | |
REF # | 43095 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
WASHER-SEAL,10.1X14.5X1.5 | |
REF # | 49091 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
PIN-COTTER,2.0X15 | |
REF # | 550 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
WASHER,8.5X13X1 | |
REF # | 92022 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
RING-SNAP,20.9X24.6X1.2 | |
REF # | 92033 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PIN | |
REF # | 92043 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT,OIL,L=23 | |
REF # | 92154 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
SCREW | |
REF # | 92172 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
