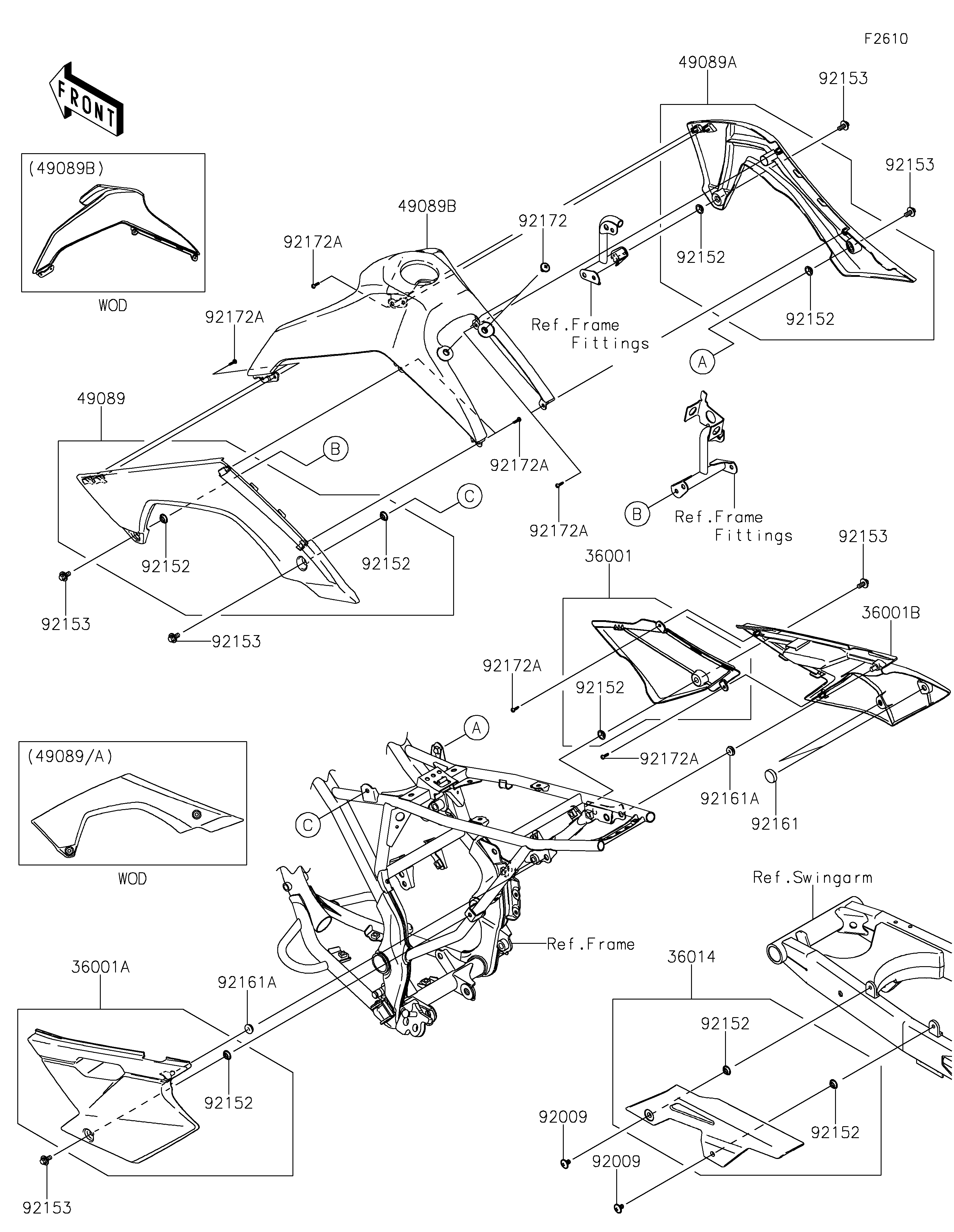

2021 KLX®140R L - Side Covers/Chain Cover
36001
36001A
36001B
36014
49089
49089A
49089B
92009
92009
92152
92152
92152
92152
92152
92152
92152
92152
92153
92153
92153
92153
92153
92153
92161
92161A
92161A
92172
92172A
92172A
92172A
92172A
92172A
92172A
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| COVER-SIDE,FR,RH,EBONY | 36001 | 36001-0125-6C | 1 | ||
| COVER-SIDE,RR,LH,B.WHITE | 36001A | 36001-0154-266 | 1 | ||
| COVER-SIDE,RR,RH,B.WHITE | 36001B | 36001-0156-266 | 1 | ||
| CASE-CHAIN | 36014 | 36014-0044 | 1 | ||
| SHROUD-ENGINE,LH,L.GREEN | 49089 | 49089-0053-290 | 1 | ||
| SHROUD-ENGINE,RH,L.GREEN | 49089A | 49089-0054-290 | 1 | ||
| SHROUD-ENGINE,UPP,L.GREEN | 49089B | 49089-0954-290 | 1 | ||
| SCREW,6X10 | 92009 | 92009-1729 | 2 | ||
| COLLAR,8.8X11.2X4 | 92152 | 92152-0909 | 8 | ||
| BOLT,FLANGED,6X14 | 92153 | 92153-0936 | 6 | ||
| DAMPER | 92161 | 92161-0336 | 2 | ||
| DAMPER | 92161A | 92161-0631 | 2 | ||
| SCREW,6X10 | 92172 | 92172-0098 | 2 | ||
| SCREW,TAPPING,4X12 | 92172A | 92172-0233 | 10 |
| COVER-SIDE,FR,RH,EBONY | |
| REF # | 36001 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER-SIDE,RR,LH,B.WHITE | |
| REF # | 36001A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER-SIDE,RR,RH,B.WHITE | |
| REF # | 36001B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CASE-CHAIN | |
| REF # | 36014 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SHROUD-ENGINE,LH,L.GREEN | |
| REF # | 49089 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SHROUD-ENGINE,RH,L.GREEN | |
| REF # | 49089A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SHROUD-ENGINE,UPP,L.GREEN | |
| REF # | 49089B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SCREW,6X10 | |
| REF # | 92009 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| COLLAR,8.8X11.2X4 | |
| REF # | 92152 |
|---|---|
| PART NUMBER | |
| QUANTITY | 8 |
| DESTINATION | |
| REMARKS | |
| BOLT,FLANGED,6X14 | |
| REF # | 92153 |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | |
| REMARKS | |
| DAMPER | |
| REF # | 92161 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| DAMPER | |
| REF # | 92161A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SCREW,6X10 | |
| REF # | 92172 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SCREW,TAPPING,4X12 | |
| REF # | 92172A |
|---|---|
| PART NUMBER | |
| QUANTITY | 10 |
| DESTINATION | |
| REMARKS | |
