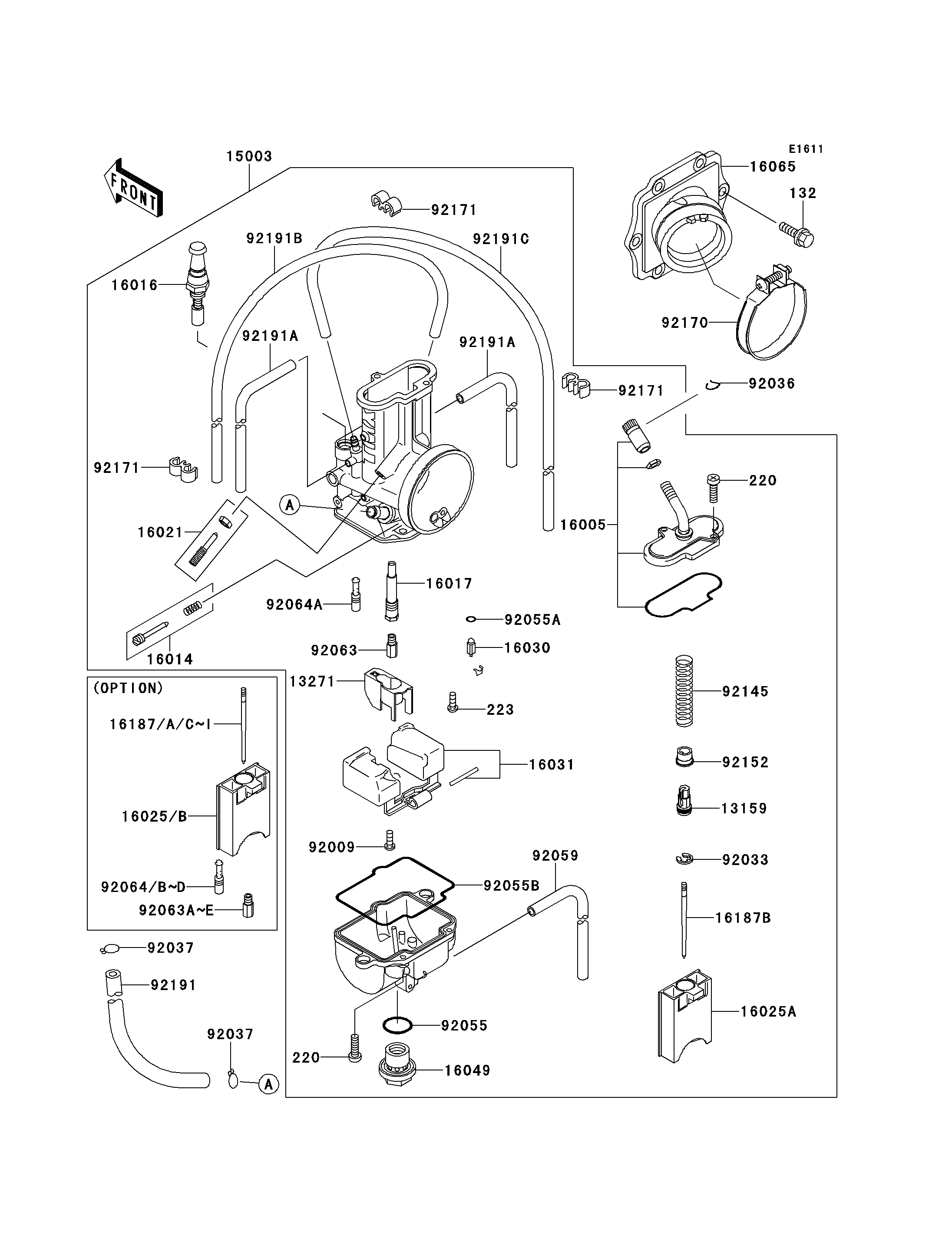

2001 KX125 - Carburetor

DOWNLOAD PDF
SELECT A NEW PART
13159
13159
13271
13271
15003
15003
16005
16005
16014
16014
16016
16016
16017
16017
16021
16021
16025
16025
16025A
16025A
16025B
16025B
16030
16030
16031
16031
16049
16049
16065
16065
16187
16187
16187A
16187A
16187B
16187B
16187C
16187C
16187D
16187D
16187E
16187E
16187F
16187F
16187G
16187G
16187H
16187H
16187I
16187I
92009
92009
92033
92033
92036
92036
92037
92037
92037
92037
92055
92055
132
132
220
220
220
220
223
223
92055A
92055A
92055B
92055B
92059
92059
92063
92063
92063A
92063A
92063B
92063B
92063C
92063C
92063D
92063D
92063E
92063E
92064
92064
92064A
92064A
92064B
92064B
92064C
92064C
92064D
92064D
92145
92145
92152
92152
92170
92170
92171
92171
92171
92171
92171
92171
92191
92191
92191A
92191A
92191A
92191A
92191B
92191B
92191C
92191C
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CONNECTOR,THROTTLE CABLE 13159 13159-1067 1
PLATE,FLOAT 13271 13271-1646 1
CARBURETOR-ASSY 15003 15003-1598 1
TOP-CHAMBER 16005 16005-1088 1
SCREW-PILOT AIR 16014 16014-1115 1
PLUNGER 16016 16016-1116 1
JET-NEEDLE,S-4 16017 16017-1427 1
SCREW-THROTTLE STOP 16021 16021-1237 1
VALVE-THROTTLE,CA5.0 16025 16025-1221 1 (OPTION)
VALVE-THROTTLE,CA5.5 16025A 16025-1222 1
VALVE-THROTTLE,CA6.0 16025B 16025-1223 1 (OPTION)
VALVE-FLOAT 16030 16030-1096 1
FLOAT 16031 16031-1106 1
COVER-MAIN JET 16049 16049-1052 1
HOLDER-CARBURETOR 16065 16065-1373 1
NEEDLE-JET,6BEF16-67 16187 16187-1164 1 (OPTION)
NEEDLE-JET,6BEF17-68 16187A 16187-1165 1 (OPTION)
NEEDLE-JET,6BEF16-69 16187B 16187-1166 1
NEEDLE-JET,6BEF16-70 16187C 16187-1167 1 (OPTION)
NEEDLE-JET,6BEF16-71 16187D 16187-1168 1 (OPTION)
NEEDLE-JET,6BEF17-67 16187E 16187-1169 1 (OPTION)
NEEDLE-JET,6BEF16-68 16187F 16187-1170 1 (OPTION)
NEEDLE-JET,6BEF17-69 16187G 16187-1171 1 (OPTION)
NEEDLE-JET,6BEF17-70 16187H 16187-1172 1 (OPTION)
NEEDLE-JET,6BEF17-71 16187I 16187-1173 1 (OPTION)
SCREW,FLOAT VALVE 92009 92009-1853 1
RING-SNAP 92033 92033-1299 1
RING-SNAP 92036 92036-018 1
CLAMP,TUBE 92037 92037-147 2
RING-O,MAIN JET COVER 92055 92055-1061 1
BOLT-FLANGED-SMALL 132 132G0625 6
SCREW-PAN-CROSS 220 220D0412 3
SCREW-PAN-WS-CROS 223 223B0408 1
RING-O 92055A 92055-1105 1
RING-O,FLOAT CHAMBER 92055B 92055-1659 1
TUBE,3X5X400 92059 92059-1490 1
JET-MAIN,#360 92063 92063-032 1
JET-MAIN,#370 92063A 92063-033 1 (OPTION)
JET-MAIN,#380 92063B 92063-034 1 (OPTION)
JET-MAIN,#340 92063C 92063-049 1 (OPTION)
JET-MAIN,#350 92063D 92063-050 1 (OPTION)
JET-MAIN,#410 92063E 92063-1472 1 (OPTION)
JET-PILOT,#45 92064 92064-1218 1 (OPTION)
JET-PILOT,#50 92064A 92064-1220 1
JET-PILOT,#55 92064B 92064-1222 1 (OPTION)
JET-PILOT,#47.5 92064C 92064-1227 1 (OPTION)
JET-PILOT,#52.5 92064D 92064-1228 1 (OPTION)
SPRING,THROTTLE VALVE 92145 92145-1401 1
COLLAR,THROTTLE VALVE 92152 92152-1305 1
CLAMP 92170 92170-1686 1
CLAMP 92171 92171-1355 3
TUBE,5.8X10.8X165 92191 92191-1532 1
TUBE,3.5X6.5X450 92191A 92191-1604 2
TUBE,3.5X6.5X650 92191B 92191-1606 1
TUBE,3.5X6.5X630 92191C 92191-1607 1
