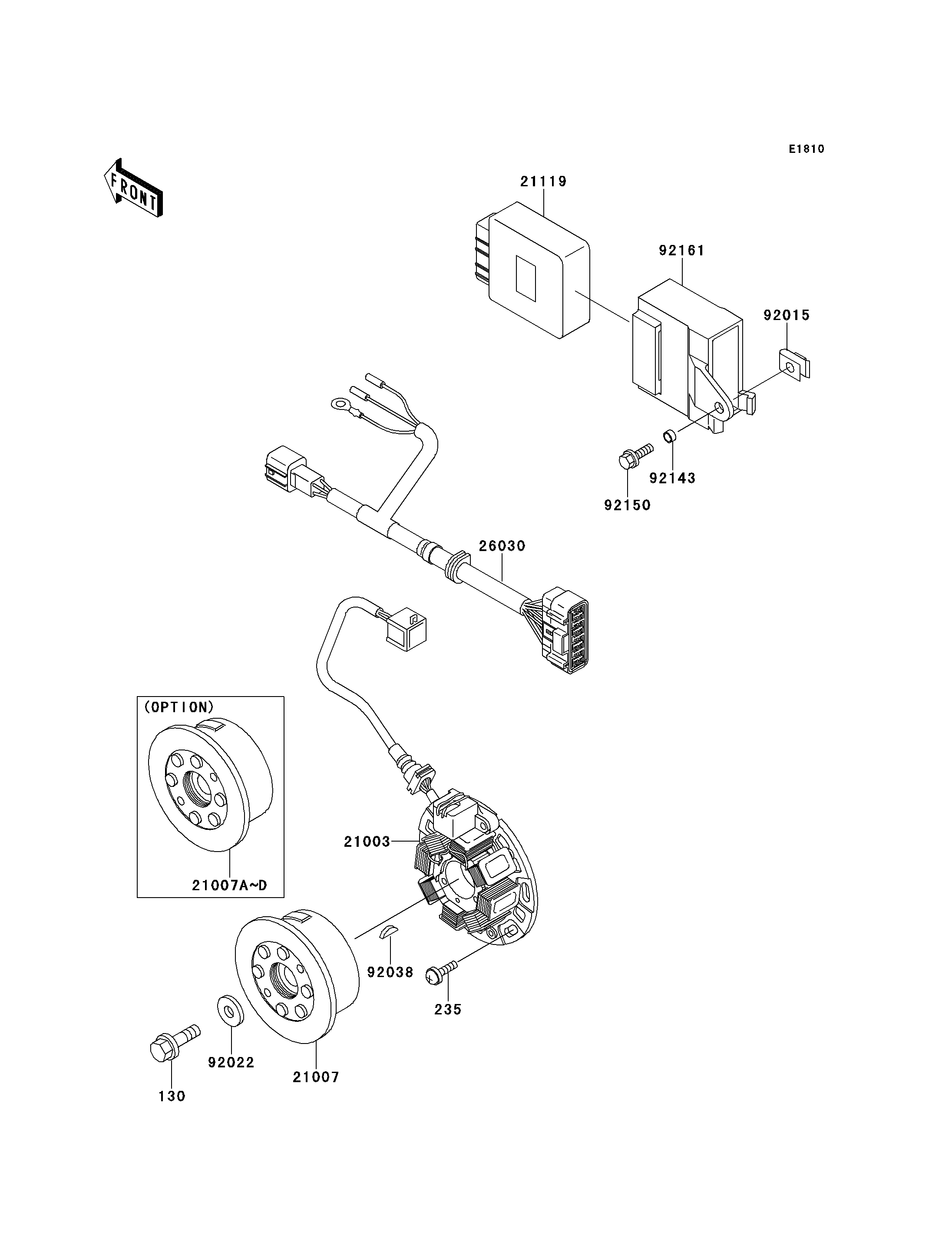

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED 130 130P0825 1
SCREW-PAN-WP-CROS 235 235B0616 3
STATOR 21003 21003-1365 1
ROTOR,I=4.0KGCM2 21007 21007-1386 1
ROTOR,I=4.5KGCM2 21007A 21007-1387 1 (OPTION)
ROTOR,I=4.9KGCM2 21007B 21007-1388 1 (OPTION)
ROTOR,I=5.5KGCM2 21007C 21007-1389 1 (OPTION)
ROTOR,I=5.9KGCM2 21007D 21007-1390 1 (OPTION)
IGNITER 21119 21119-1574 1
HARNESS 26030 26030-1790 1
NUT,6MM 92015 92015-1602 1
WASHER,8.5X22X3.2 92022 92022-276 1
KEY,WOODRUFF 92038 92038-001 1
COLLAR 92143 92143-1561 1
BOLT,FLANGED,6X16 92150 92150-1506 1
DAMPER 92161 92161-1156 1
