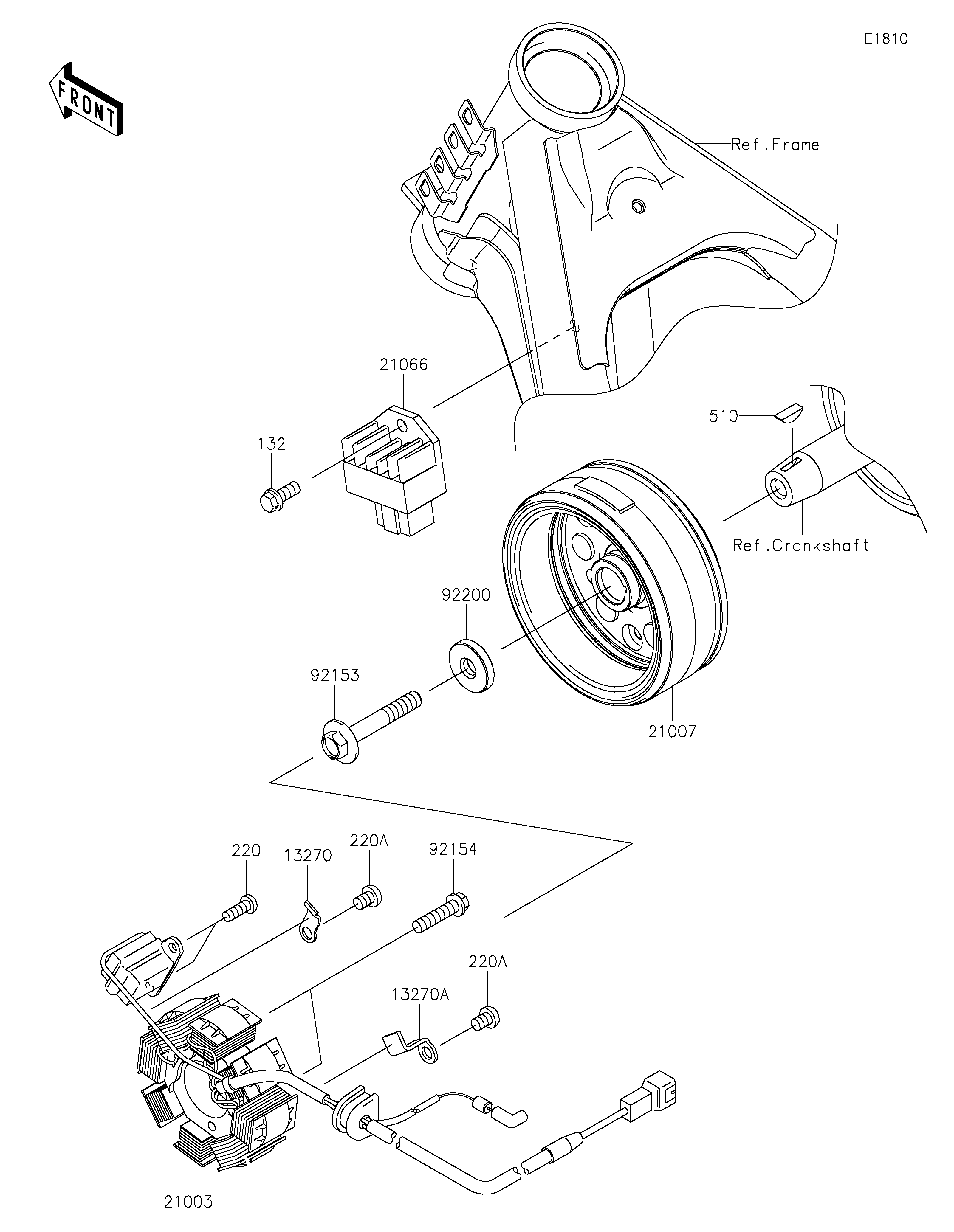

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED-SMALL,6X14 132 132BA0614 1
PLATE 13270 13270-1754 1
PLATE 13270A 13270-1961 1
STATOR 21003 21003-0116 1
ROTOR 21007 21007-0105 1
REGULATOR-VOLTAGE 21066 21066-0778 1
SCREW-PAN-CROS,5X14 220 220AA0514 2
SCREW-PAN-CROS,6X8 220A 220AA0608 2
KEY-WOODRUFF 510 510A3200 1
BOLT,8X50 92153 92153-1135 1
BOLT,FLANGED,6X25 92154 92154-2154 2
WASHER,8.2X26X5 92200 92200-1626 1
