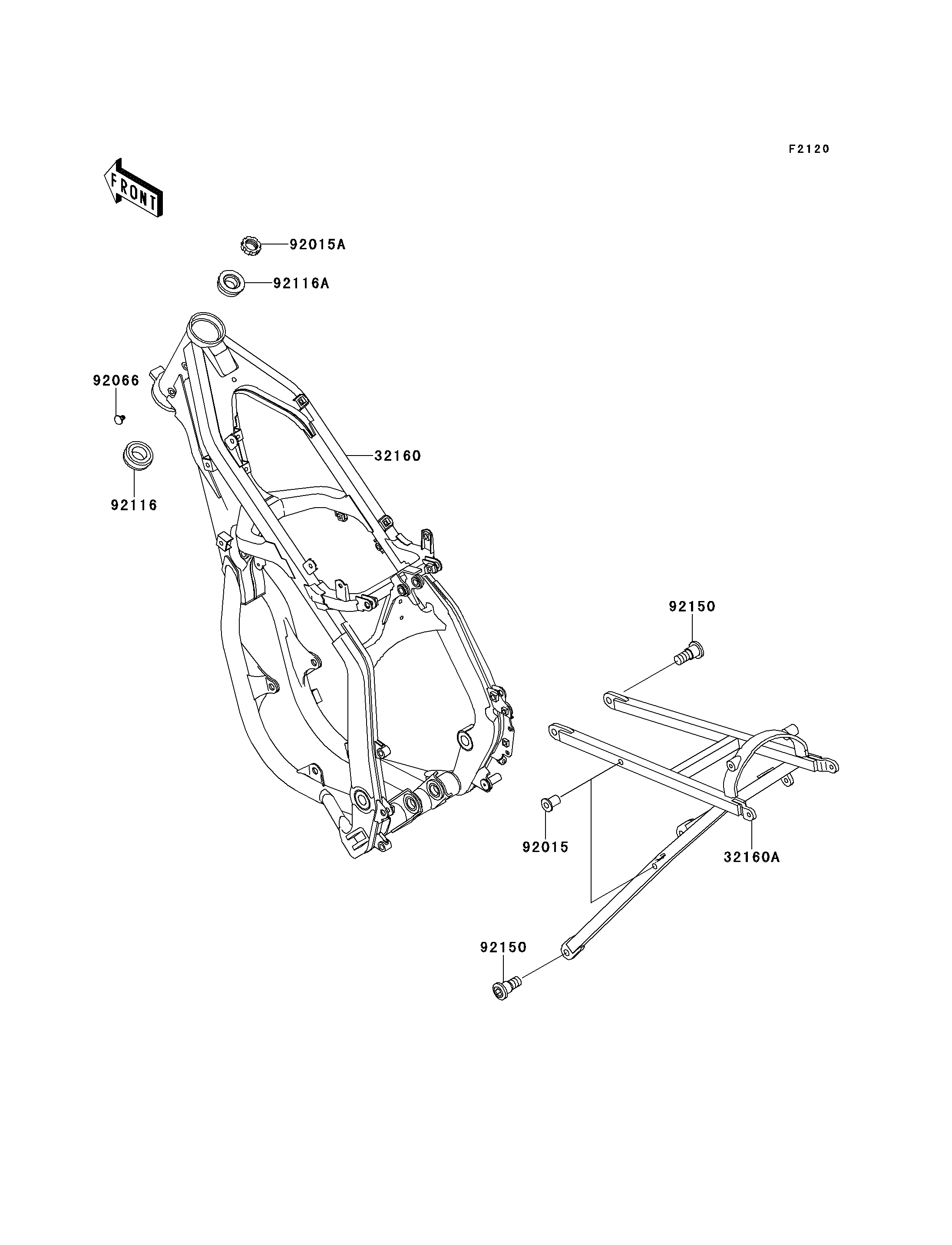

32160
32160A
92015
92015A
92066
92116
92116A
92150
92150
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
FRAME-COMP,FR,L.GREEN 32160 32160-1632-CC 1
FRAME-COMP,RR,L.GREEN 32160A 32160-1647-CC 1
NUT,POP,6MM,L=16.5 92015 92015-1792 4
NUT,STEERING STEM,28MM 92015A 92015-1861 1
PLUG 92066 92066-1551 1
BEARING-ROLLER,HI-CAP32006JRRS 92116 92116-1069 1
BEARING-ROLLER,HI-CAP320/28JRR 92116A 92116-1076 1
BOLT,SOCKET,8X20 92150 92150-1839 4
