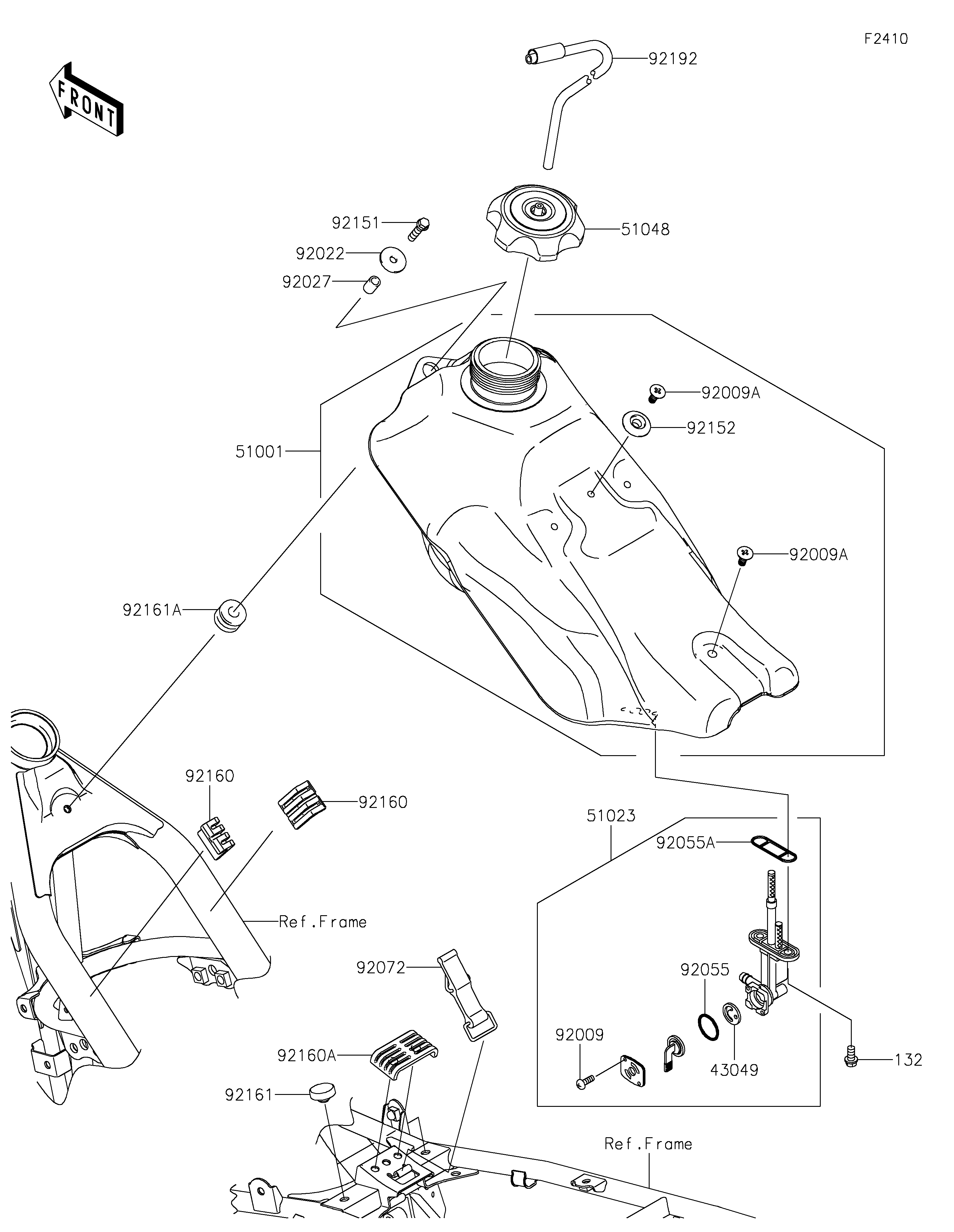

2021 KLX®140R F - Fuel Tank

DOWNLOAD PDF
SELECT A NEW PART
132
43049
51001
51023
51048
92009
92009A
92009A
92022
92027
92055
92055A
92072
92151
92152
92160
92160
92160A
92161
92161A
92192
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED-SMALL,6X12 132 132BA0612 2
PACKING,VALVE 43049 43049-1102 1
TANK-COMP-FUEL 51001 51001-0847 1
TAP-ASSY,FUEL 51023 51023-0720 1
CAP-ASSY-TANK,FUEL 51048 51048-0009 1
SCREW,3X5 92009 92009-1123 2
SCREW,6MM 92009A 92009-1971 2
WASHER,6.5X24X2 92022 92022-1690 1
COLLAR,6.8X10X14 92027 92027-1966 1
RING-O,FUEL TAP LEVER 92055 92055-0960 1
RING-O,FUEL TAP PACKING 92055A 92055-1112 1
BAND,FUEL TANK 92072 92072-0109 1
BOLT,FLANGED-SMALL,6X25 92151 92151-1930 1
COLLAR 92152 92152-0569 1
DAMPER,FUEL TANK 92160 92160-1328 2
DAMPER,FUEL TANK,RR 92160A 92160-1397 1
DAMPER 92161 92161-0336 2
DAMPER 92161A 92161-1523 1
TUBE 92192 92192-0161 1
