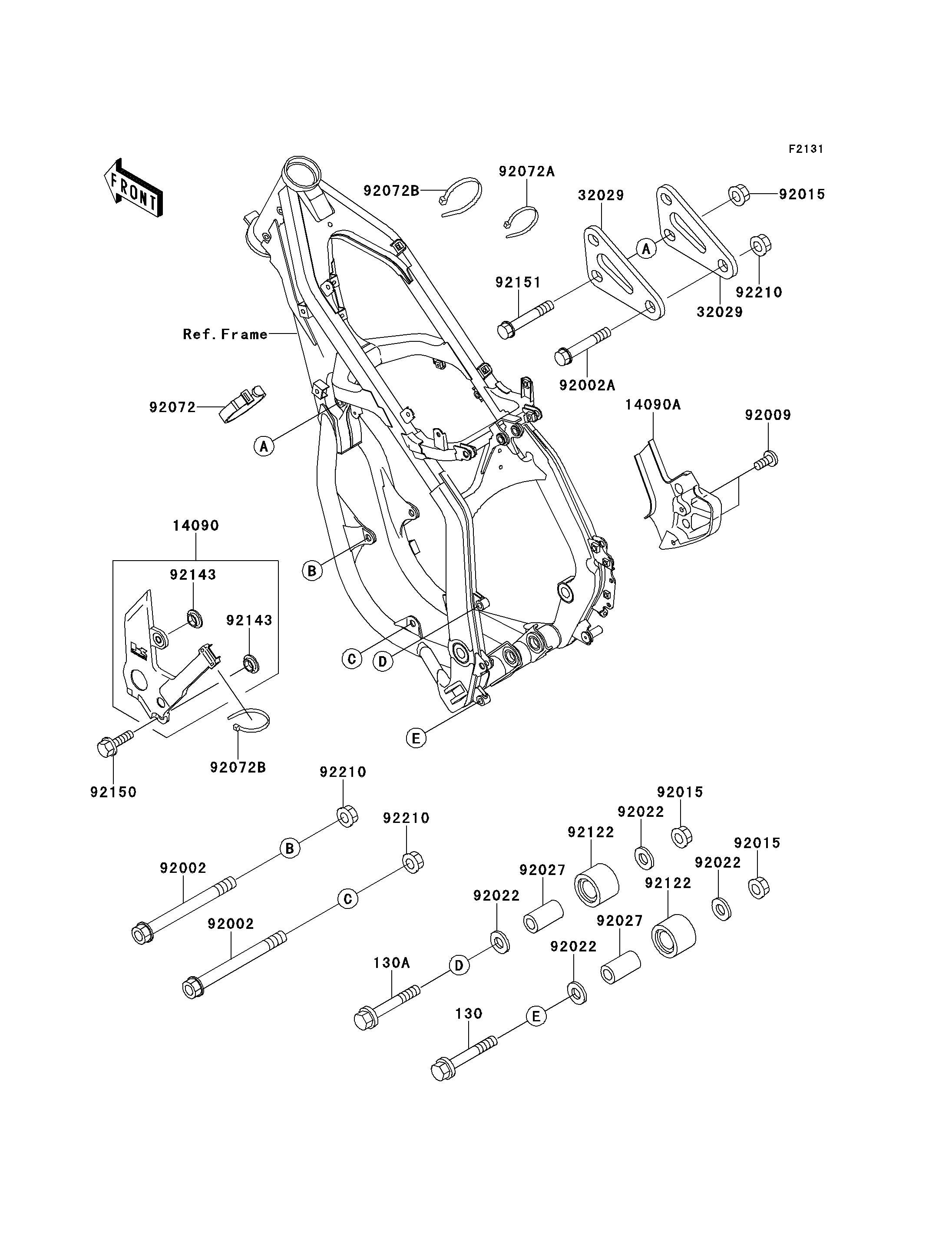

Parts Diagrams |
130
130A
14090
14090A
32029
32029
92002
92002
92002A
92009
92015
92015
92015
92022
92022
92022
92022
92027
92027
92072
92072A
92072B
92072B
92122
92122
92143
92143
92150
92151
92210
92210
92210
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
BOLT-FLANGED,8X55 | 130 | 130G0855 | 1 | ||
BOLT-FLANGED,8X60 | 130A | 130G0860 | 1 | ||
COVER,FRAME PIVOT,LH,F.BLACK | 14090 | 14090-1970-6Z | 1 | ||
COVER,FRAME PIVOT,RH,F.BLACK | 14090A | 14090-1971-6Z | 1 | ||
BRACKET-ENGINE | 32029 | 32029-1896 | 2 | ||
BOLT,FLANGED,10X105 | 92002 | 92002-1491 | 2 | ||
BOLT,FLANGED,10X53 | 92002A | 92002-1936 | 1 | ||
SCREW,6X18,WHITE | 92009 | 92009-1111 | 2 | ||
NUT,8MM | 92015 | 92015-1432 | 4 | ||
WASHER,8.5X22X1.5 | 92022 | 92022-1629 | 4 | ||
COLLAR,CHAIN ROLLER | 92027 | 92027-1670 | 2 | ||
BAND,L=149 | 92072 | 92072-031 | 1 | ||
BAND,L=186 | 92072A | 92072-056 | 1 | ||
BAND,L=202 | 92072B | 92072-1195 | 4 | ||
ROLLER,CHAIN GUIDE | 92122 | 92122-1153 | 2 | ||
COLLAR | 92143 | 92143-1196 | 2 | ||
BOLT,6X12 | 92150 | 92150-1435 | 1 | ||
BOLT,FLANGED,8X52 | 92151 | 92151-1377 | 2 | ||
NUT,LOCK,FLANGED,10MM | 92210 | 92210-1080 | 3 |
BOLT-FLANGED,8X55 | |
REF # | 130 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT-FLANGED,8X60 | |
REF # | 130A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
COVER,FRAME PIVOT,LH,F.BLACK | |
REF # | 14090 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
COVER,FRAME PIVOT,RH,F.BLACK | |
REF # | 14090A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BRACKET-ENGINE | |
REF # | 32029 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BOLT,FLANGED,10X105 | |
REF # | 92002 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BOLT,FLANGED,10X53 | |
REF # | 92002A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SCREW,6X18,WHITE | |
REF # | 92009 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
NUT,8MM | |
REF # | 92015 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
WASHER,8.5X22X1.5 | |
REF # | 92022 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
COLLAR,CHAIN ROLLER | |
REF # | 92027 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BAND,L=149 | |
REF # | 92072 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BAND,L=186 | |
REF # | 92072A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BAND,L=202 | |
REF # | 92072B |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
ROLLER,CHAIN GUIDE | |
REF # | 92122 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
COLLAR | |
REF # | 92143 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BOLT,6X12 | |
REF # | 92150 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT,FLANGED,8X52 | |
REF # | 92151 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
NUT,LOCK,FLANGED,10MM | |
REF # | 92210 |
---|---|
PART NUMBER | |
QUANTITY | 3 |
DESTINATION | |
REMARKS |
