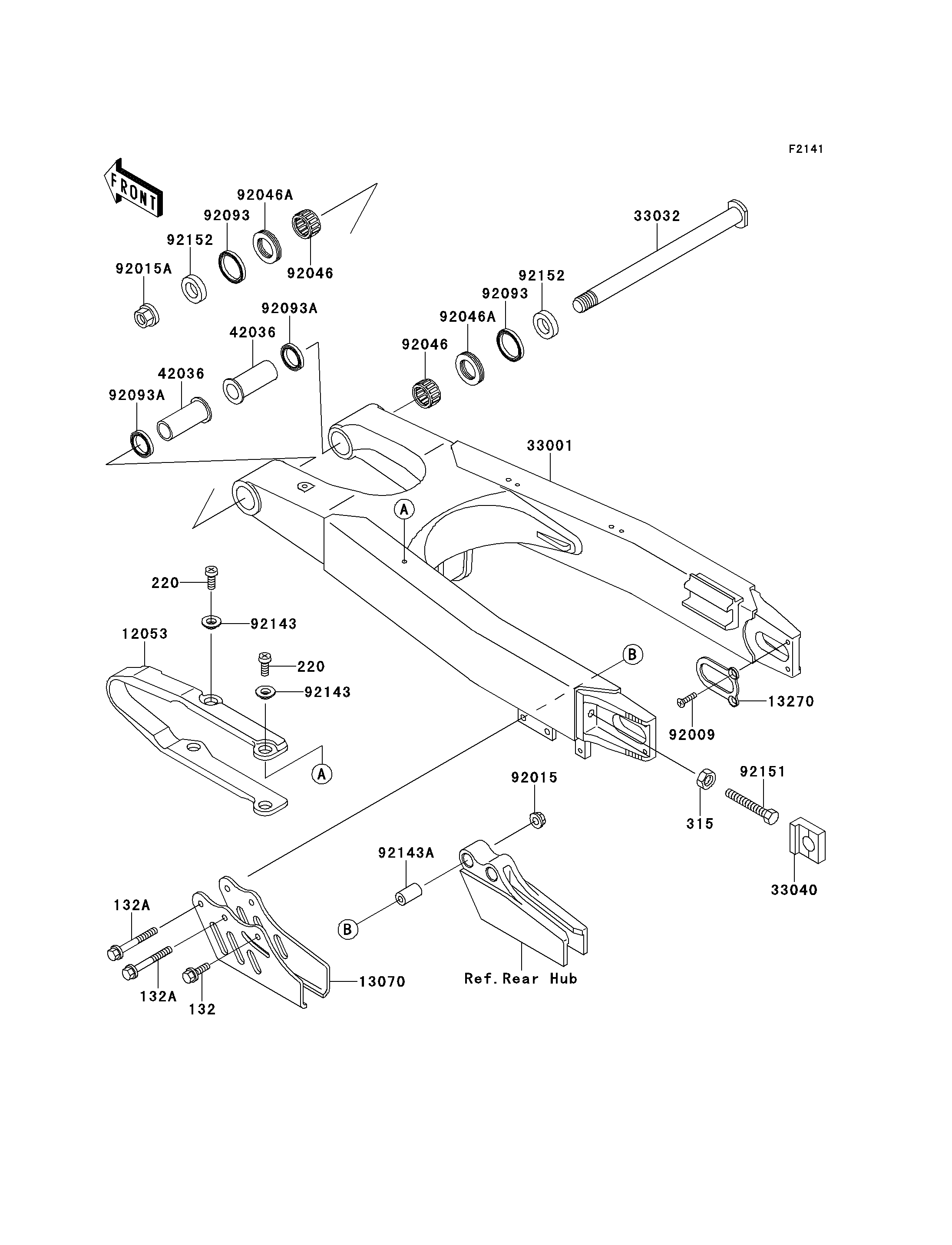

2001 KX125 - Swingarm

DOWNLOAD PDF
SELECT A NEW PART
132
132A
132A
220
220
315
12053
13070
13270
33001
33032
33040
42036
42036
92009
92015
92015A
92046
92046
92046A
92046A
92093
92093
92093A
92093A
92143
92143
92143A
92151
92152
92152
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED-SMALL 132 132G0612 1
BOLT-FLANGED-SMALL 132A 132G0650 2
SCREW-PAN-CROS,5X8 220 220B0508 4
NUT-HEX-FINE,10MM 315 315G1000 2
GUIDE-CHAIN,DRIVE,FR 12053 12053-1422 1
GUIDE,DRIVE CHAIN GUIDE,RR 13070 13070-1333 1
PLATE 13270 13270-1636 2
ARM-COMP-SWING,SILVER 33001 33001-1575-TX 1
SHAFT-SWING ARM 33032 33032-1189 1
ADJUSTER-CHAIN 33040 33040-1156 2
SLEEVE,SWING ARM,L=54 42036 42036-1326 2
SCREW,5X10 92009 92009-1828 4
NUT,FLANGED,6MM 92015 92015-1078 2
NUT,FLANGED,16MM 92015A 92015-1316 1
BEARING-NEEDLE,TA2230Z 92046 92046-1174 2
BEARING-NEEDLE,NTBR22356E01 92046A 92046-1240 2
SEAL,SDO29X35X4.5 92093 92093-1434 2
SEAL,SDO22X29X5 92093A 92093-1435 2
COLLAR 92143 92143-1676 4
COLLAR,6.5X14X24 92143A 92143-1867 2
BOLT,10X55 92151 92151-1397 2
COLLAR,17.1X29X7.5 92152 92152-1137 2
