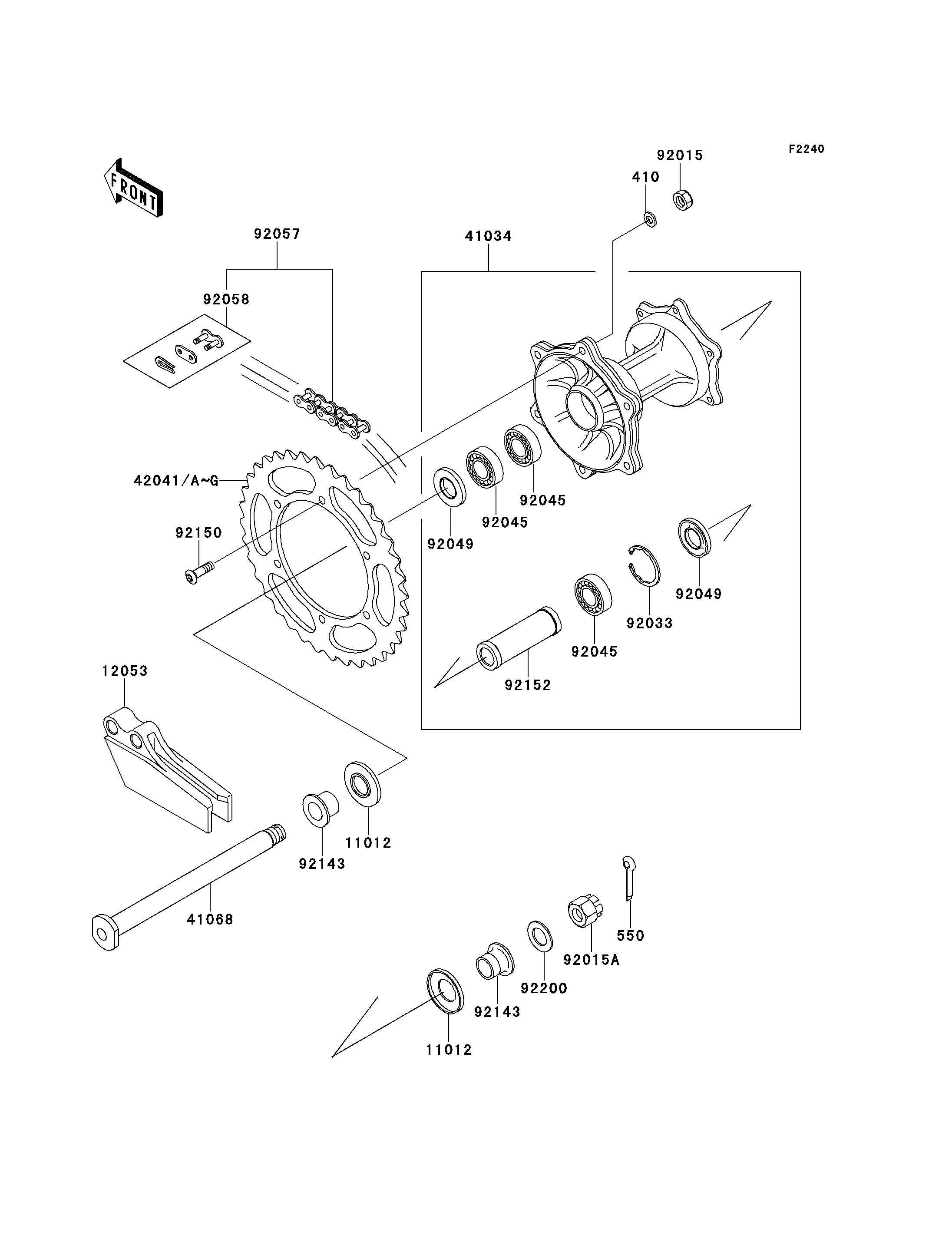

2001 KX125 - Rear Hub

DOWNLOAD PDF
SELECT A NEW PART
410
550
11012
11012
12053
41034
41068
42041
42041A
42041B
42041C
42041D
42041E
42041F
42041G
92015
92015A
92033
92045
92045
92045
92049
92049
92057
92058
92143
92143
92150
92152
92200
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
WASHER-PLAIN-SMALL,8MM 410 410B0800 6
PIN-COTTER,3.0X25 550 550D3025 1
CAP,AXLE 11012 11012-1581 2
GUIDE-CHAIN,DRIVE,RR 12053 12053-1376 1
DRUM-ASSY,REAR BRAKE 41034 41034-1301 1
AXLE,RR 41068 41068-1343 1
SPROCKET-HUB,48T 42041 42041-1383 1 (OPTION)
SPROCKET-HUB,49T 42041A 42041-1384 1 (OPTION)
SPROCKET-HUB,50T 42041B 42041-1408 1 (OPTION)
SPROCKET-HUB,47T,AL 42041C 42041-1447 1 (OPTION)
SPROCKET-HUB,48T,AL 42041D 42041-1448 1 (OPTION)
SPROCKET-HUB,49T,AL 42041E 42041-1449 1
SPROCKET-HUB,50T,AL 42041F 42041-1450 1 (OPTION)
SPROCKET-HUB,51T,AL 42041G 42041-1451 1 (OPTION)
NUT,8MM 92015 92015-1432 6
NUT,CASTLE,18MM 92015A 92015-1885 1
RING-SNAP,42MM 92033 92033-1041 1
BEARING-BALL,6004X8JRLLX2/3A 92045 92045-1239 3
SEAL-OIL,MHSA25 42 6 92049 92049-1314 2
CHAIN,DRIVE,DID520DMAX110L 92057 92057-1458 1
JOINT-CHAIN,DRIVE 92058 92058-1074 1
COLLAR,RR AXLE,L=20 92143 92143-1905 2
BOLT,SOCKET,8X28 92150 92150-1978 6
COLLAR,RR BRAKE DRUM,L=93 92152 92152-1144 1
WASHER,18.5X32X2.3 92200 92200-1149 1
