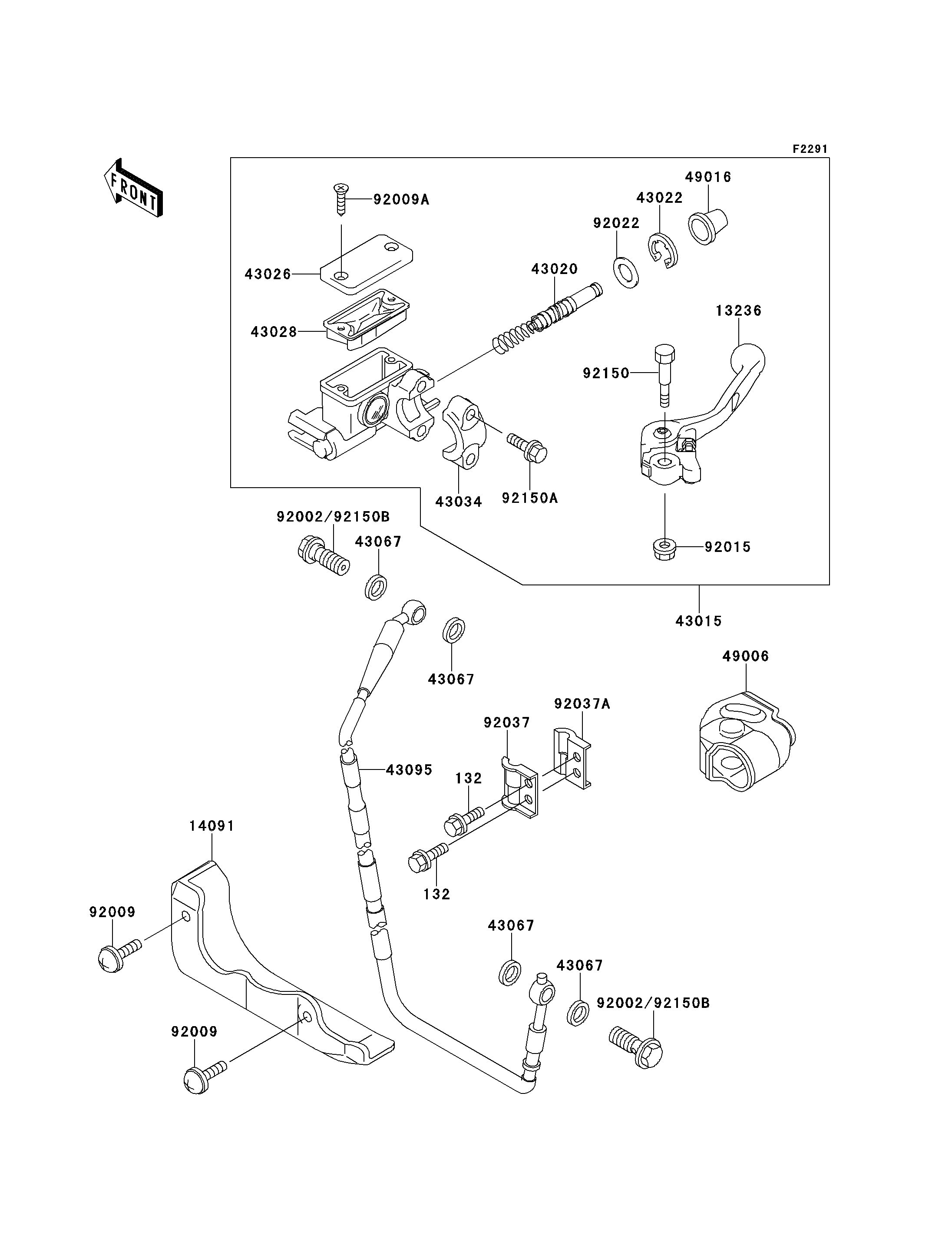

2001 KX125 - Front Master Cylinder

DOWNLOAD PDF
SELECT A NEW PART
132
132
13236
14091
43015
43020
43022
43026
43028
43034
43067
43067
43067
43067
43095
49006
49016
92002
92002
92009
92009
92009A
92015
92022
92037
92037A
92150
92150A
92150B
92150B
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED-SMALL 132 132G0616 2
LEVER-COMP,FRONT BRAKE 13236 13236-1346 1
COVER,FRONT AXLE,WHITE 14091 14091-1321-RZ 1
CYLINDER-ASSY-MASTER,FR 43015 43015-1674 1
PISTON-COMP-BRAKE 43020 43020-1123 1
STOPPER-BRAKE,PISTON 43022 43022-1010 1
CAP-BRAKE 43026 43026-1075 1
DIAPHRAGM 43028 43028-1067 1
HOLDER-BRAKE 43034 43034-1110 1
WASHER,10.5X15X1.5 43067 43067-001 4
HOSE-BRAKE,FR 43095 43095-1212 1
BOOT,FRONT BRAKE LEVER 49006 49006-1344 1
COVER-SEAL,MASTER CYLINDER 49016 49016-1044 1
BOLT,OIL,L=23 92002 92002-1888 2
SCREW,6X14,WHITE 92009 92009-1287 2
SCREW,4MM 92009A 92009-1458 2
NUT,FLANGED,6MM 92015 92015-1528 1
WASHER 92022 92022-1814 1
CLAMP,BRAKE HOSE,OUTSIDE 92037 92037-1362 1
CLAMP,BRAKE HOSE,INSIDE 92037A 92037-1363 1
BOLT,LEVER SET 92150 92150-1451 1
BOLT 92150A 92150-1452 2
BOLT,OIL,L=23,FOR SAFETY WIRE 92150B 92150-1886 2 (OPTION)
