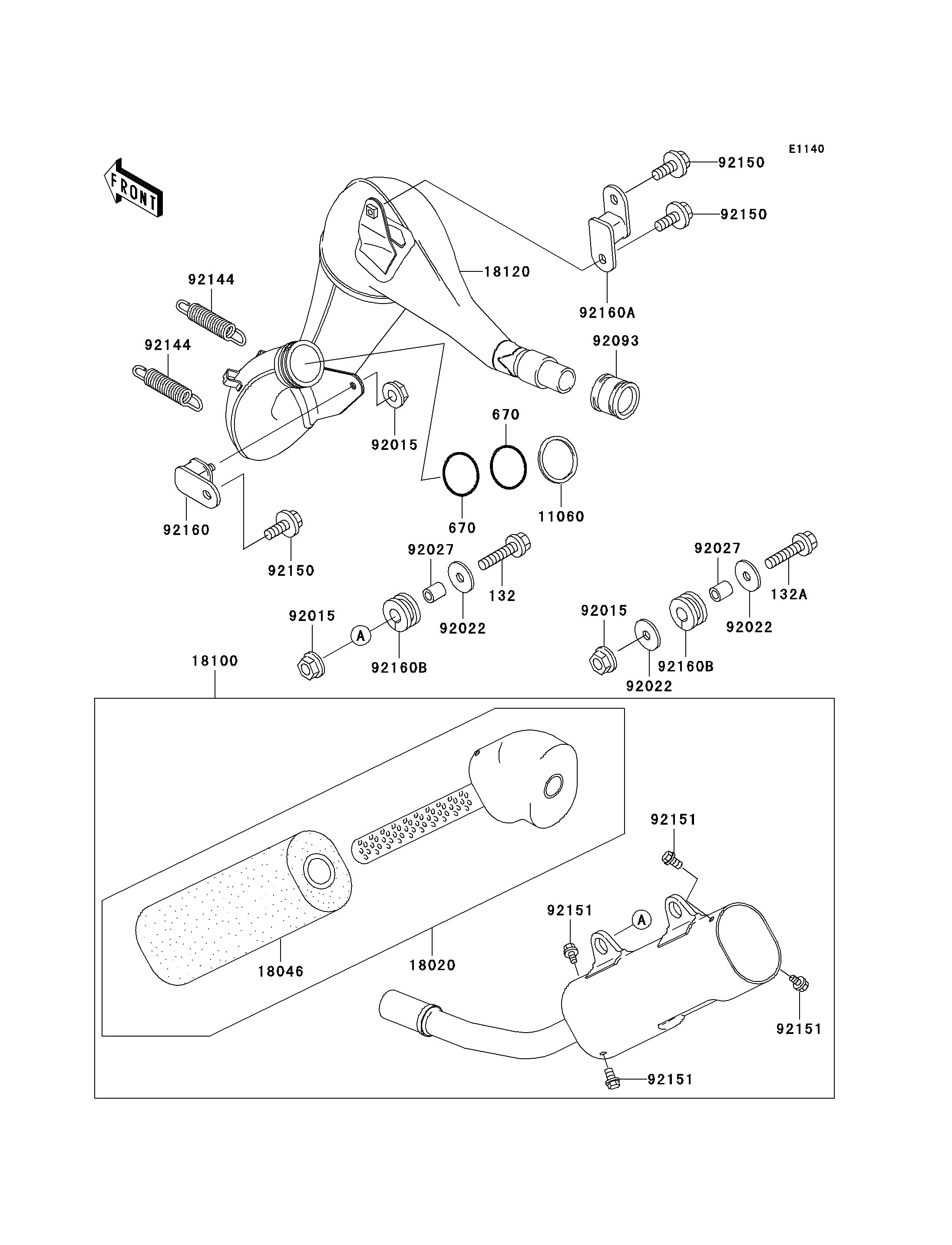

2002 KX125 - Muffler(s)

DOWNLOAD PDF
SELECT A NEW PART
132
132A
670
670
11060
18020
18046
18100
18120
92015
92015
92015
92022
92022
92022
92027
92027
92093
92144
92144
92150
92150
92150
92151
92151
92151
92151
92160
92160A
92160B
92160B
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED-SMALL 132 132G0635 1
BOLT-FLANGED-SMALL 132A 132G0640 1
O RING 670 670E3042 2
GASKET,EXHAUST PIPE 11060 11060-1370 1
BAFFLE 18020 18020-1271 1
WOOL 18046 18046-1555 1
BODY-ASSY-MUFFLER 18100 18100-1086 1
CHAMBER-EXHAUST 18120 18120-1112 1
NUT,FLANGED,6MM 92015 92015-1078 3
WASHER,6.5X22X1.6 92022 92022-237 3
COLLAR,6.8X10X10.5 92027 92027-120 2
SEAL,MUFFLER CONNECTING 92093 92093-1363 1
SPRING 92144 92144-1470 2
BOLT,6X12 92150 92150-1435 3
BOLT,6X10 92151 92151-1822 4
DAMPER,MUFFLER,FR 92160 92160-1176 1
DAMPER,MUFFLER,RR 92160A 92160-1201 1
DAMPER,MUFFLER FITTING 92160B 92160-1913 2
