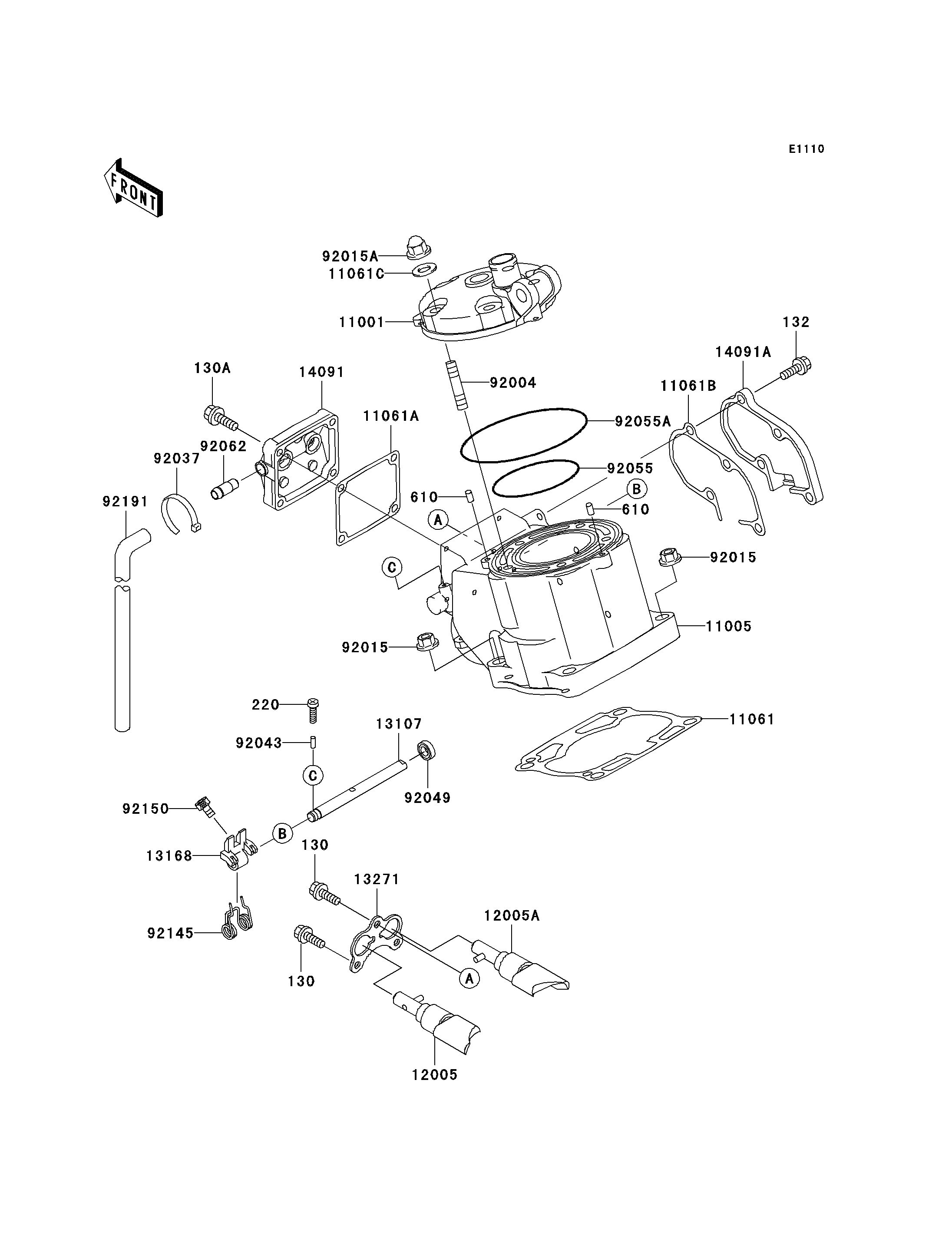

2003 KX125 - Cylinder Head/Cylinder

DOWNLOAD PDF
SELECT A NEW PART
130
130
130A
132
220
610
610
11001
11005
11061
11061A
11061B
11061C
12005
12005A
13107
13168
13271
14091
14091A
92004
92015
92015
92015A
92037
92043
92049
92055
92055A
92062
92145
92150
92191
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED 130 130G0512 3
BOLT-FLANGED,CENTER COVER 130A 130G0522 4
BOLT-FLANGED-SMALL 132 132G0616 4
SCREW-PAN-CROS,4X6 220 220B0406 1
ROLLER,4X8 610 610A0408 2
HEAD-CYLINDER 11001 11001-1573 1
CYLINDER-ENGINE,BASE 11005 11005-1978 1
GASKET,T 0.37 11061 11061-1130 1
GASKET,CENTER COVER 11061A 11061-1131 1
GASKET,RIGHT COVER 11061B 11061-1132 1
GASKET,HEAD 11061C 11061-1133 5
VALVE-EXHAUST,LH 12005 12005-1340 1
VALVE-EXHAUST,RH 12005A 12005-1341 1
SHAFT 13107 13107-1500 1
LEVER 13168 13168-1747 1
PLATE 13271 13271-1823 1
COVER,CNT 14091 14091-1481 1
COVER,RIGHT 14091A 14091-1482 1
STUD,8X28 92004 92004-1110 5
NUT,8MM 92015 92015-1143 4
NUT,CAP,8MM 92015A 92015-1151 5
CLAMP 92037 92037-1173 1
PIN 92043 92043-1586 1
SEAL-OIL,SD088144 92049 92049-1238 1
RING-O,IN 92055 92055-1678 1
RING-O,OUT 92055A 92055-1679 1
NOZZLE 92062 92062-3711 1
SPRING 92145 92145-1491 1
BOLT,SOCKET,4X8 92150 92150-1888 1
TUBE,5.8X10.8X225 92191 92191-1692 1
