11011
11013
13091
13091A
13183
14073
92015
92150
92150
92150A
92160
92171

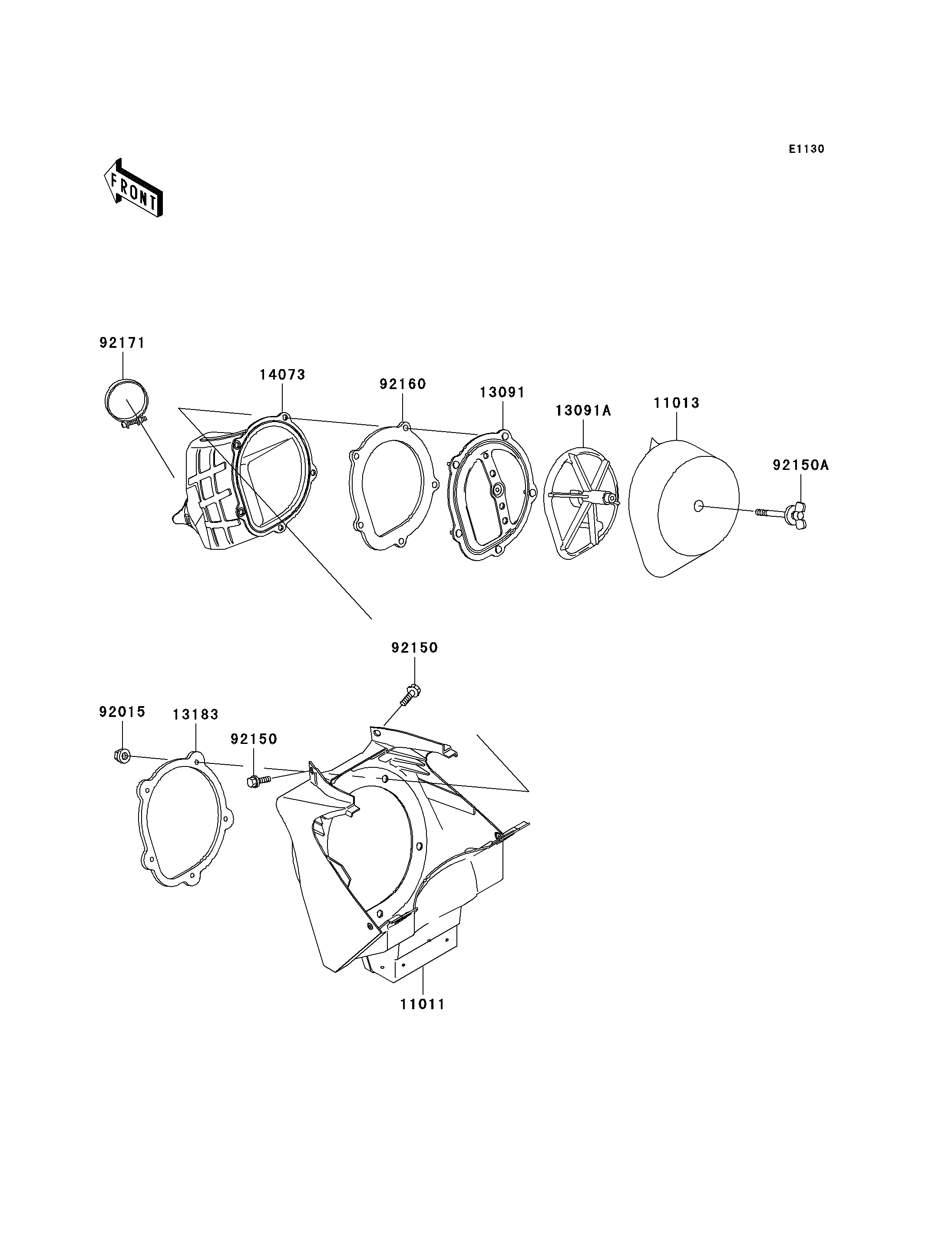

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CASE-AIR FILTER 11011 11011-1656 1
ELEMENT-AIR FILTER 11013 11013-1264 1
HOLDER 13091 13091-1664 1
HOLDER,ELEMENT 13091A 13091-1708 1
PLATE,DUCT FITTING 13183 13183-1530 1
DUCT,AIR FILTER 14073 14073-0003 1
NUT,FLANGED,5MM 92015 92015-1259 5
BOLT,FLANGED,6X16 92150 92150-1506 2
BOLT,WING 92150A 92150-1565 1
DAMPER,DUCT SEAL 92160 92160-1196 1
CLAMP,AIR FILTER 92171 92171-1066 1
