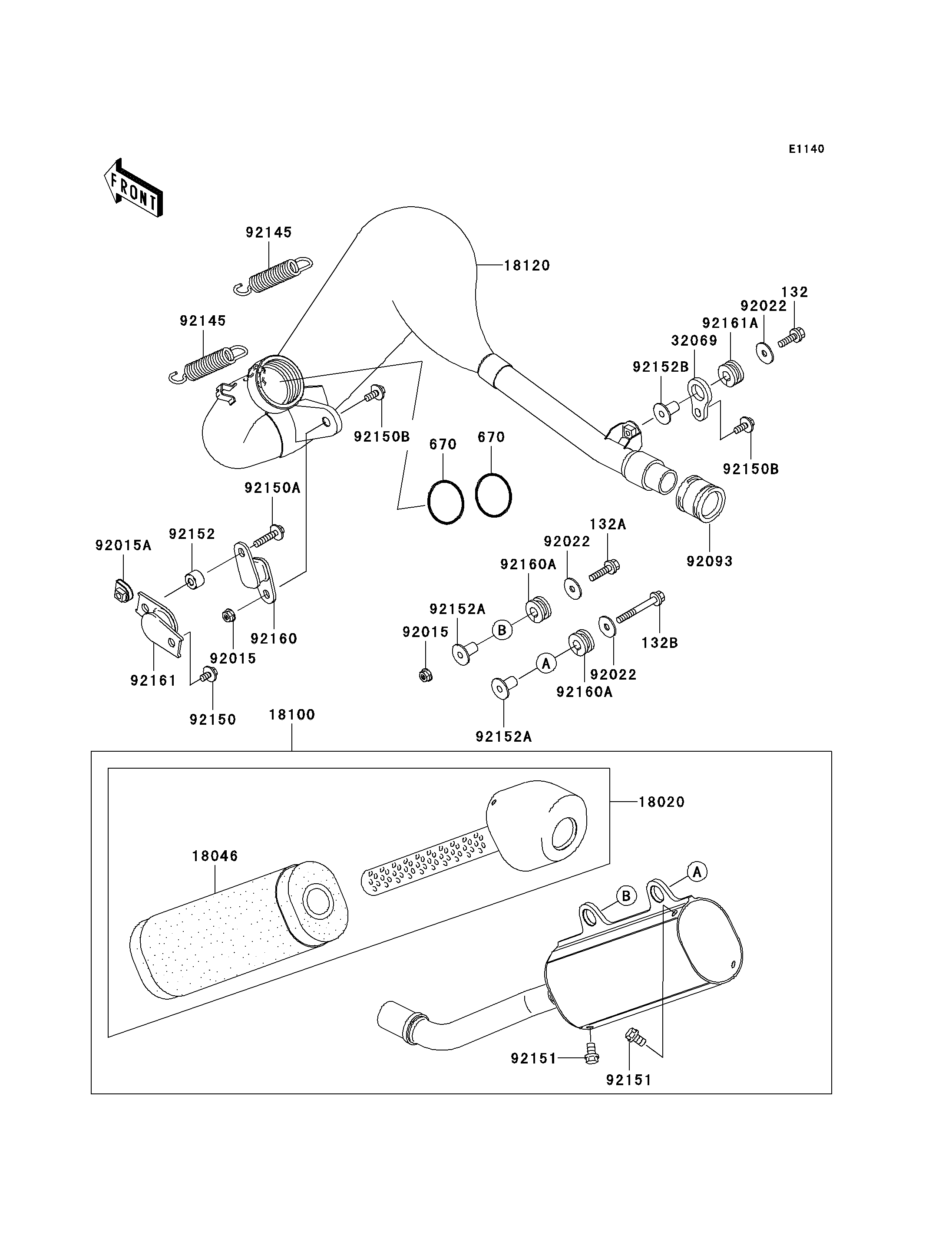

2003 KX125 - Muffler(s)

DOWNLOAD PDF
SELECT A NEW PART
132
132A
132B
670
670
18020
18046
18100
18120
32069
92015
92015
92015A
92022
92022
92022
92093
92145
92145
92150
92150A
92150B
92150B
92151
92151
92152
92152A
92152A
92152B
92160
92160A
92160A
92161
92161A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED-SMALL 132 132G0625 1
BOLT-FLANGED-SMALL 132A 132G0630 1
BOLT-FLANGED-SMALL 132B 132G0650 1
O RING,45MM 670 670E3045 2
BAFFLE 18020 18020-1293 1
WOOL 18046 18046-1597 1
BODY-ASSY-MUFFLER,SILENCER 18100 18100-1093 1
CHAMBER-EXHAUST 18120 18120-0001 1
BRACKET-MUFFLER 32069 32069-1676 1
NUT,FLANGED,6MM 92015 92015-1078 2
NUT,CLIP,6MM 92015A 92015-1904 1
WASHER,6.5X22X1.6 92022 92022-237 3
SEAL,MUFFLER CONNECTING 92093 92093-1363 1
SPRING,EXHAUST CONNECTING 92145 92145-1340 2
BOLT,6X12 92150 92150-1435 1
BOLT,FLANGED,6X30 92150A 92150-1486 1
BOLT,FLANGED,6X16 92150B 92150-1506 2
BOLT,6X10 92151 92151-1822 4
COLLAR 92152 92152-0016 1
COLLAR 92152A 92152-1407 2
COLLAR 92152B 92152-1468 1
DAMPER,MUFFLER,RR 92160 92160-1201 1
DAMPER,MUFFLER FITTING 92160A 92160-1913 2
DAMPER 92161 92161-1290 1
DAMPER 92161A 92161-1331 1
