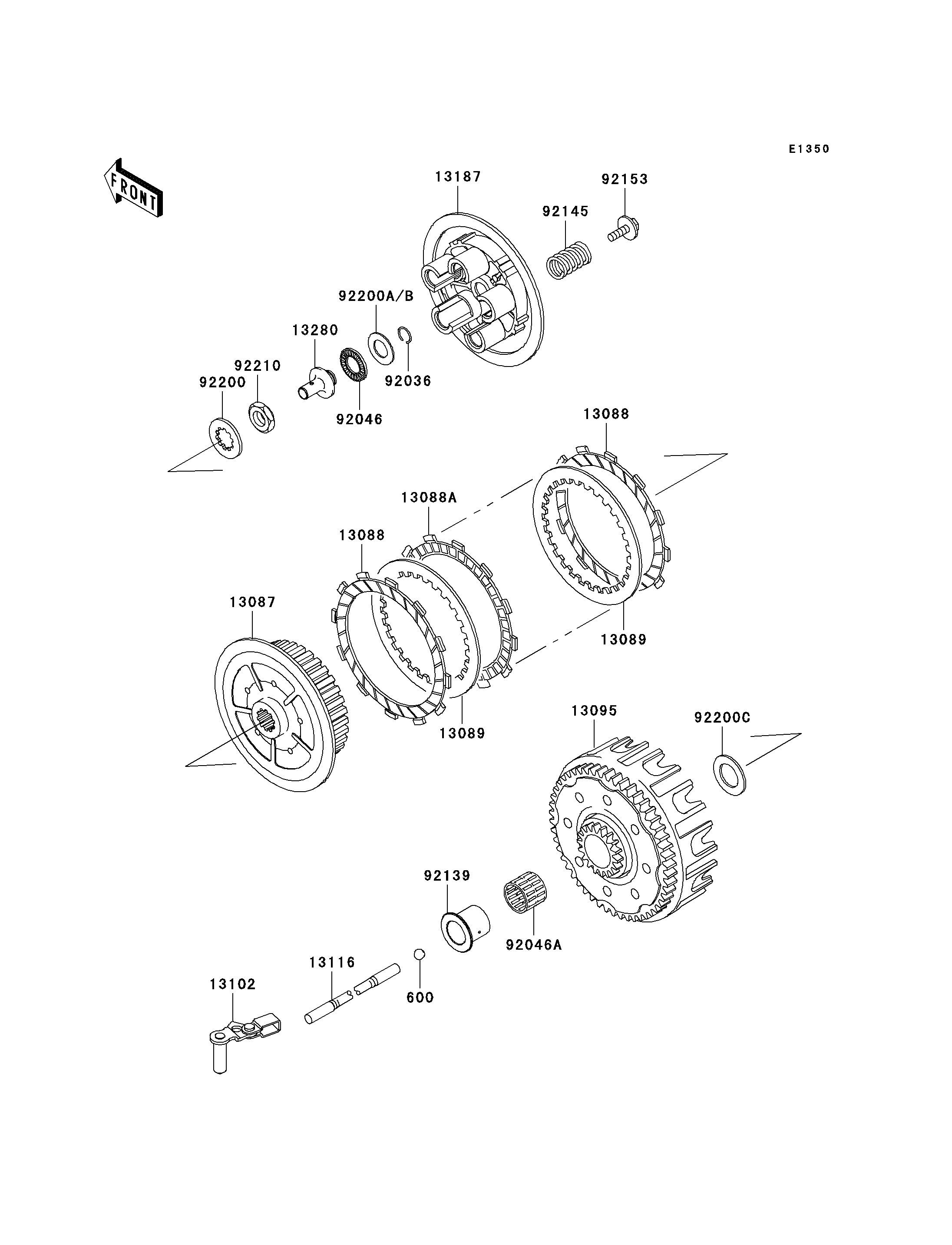

2003 KX125 - Clutch

DOWNLOAD PDF
SELECT A NEW PART
600
13087
13088
13088
13088A
13089
13089
13095
13102
13116
13187
13280
92036
92046
92046A
92139
92145
92153
92200
92200A
92200B
92200C
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BALL-STEEL,5/16" 600 600A1000 1
HUB-CLUTCH 13087 13087-1184 1
PLATE-FRICTION 13088 13088-1057 2
PLATE-FRICTION 13088A 13088-1102 5
PLATE-CLUTCH,T=1.6 13089 13089-013 6
HOUSING-COMP-CLUTCH 13095 13095-1412 1
RELEASE-COMP-CLUTCH 13102 13102-1160 1
ROD-PUSH 13116 13116-1171 1
PLATE-CLUTCH OPERATING 13187 13187-1089 1
HOLDER 13280 13280-1266 1
RING-SNAP,PISTON PIN 92036 92036-007 1
BEARING-NEEDLE,FNTA-1326 92046 92046-1190 1
BEARING-NEEDLE 92046A 92046-1299 1
BUSHING 92139 92139-1077 1
SPRING 92145 92145-1487 5
BOLT,6.25 92153 92153-1123 5
WASHER 92200 92200-1178 1
WASHER,T=1.0 92200A 92200-1547 AR
WASHER,T=1.5 92200B 92200-1548 1
WASHER 92200C 92200-1621 1
NUT,16MM 92210 92210-1207 1
