Parts Diagrams

customer service agent speaking with a customer

Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.

Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.

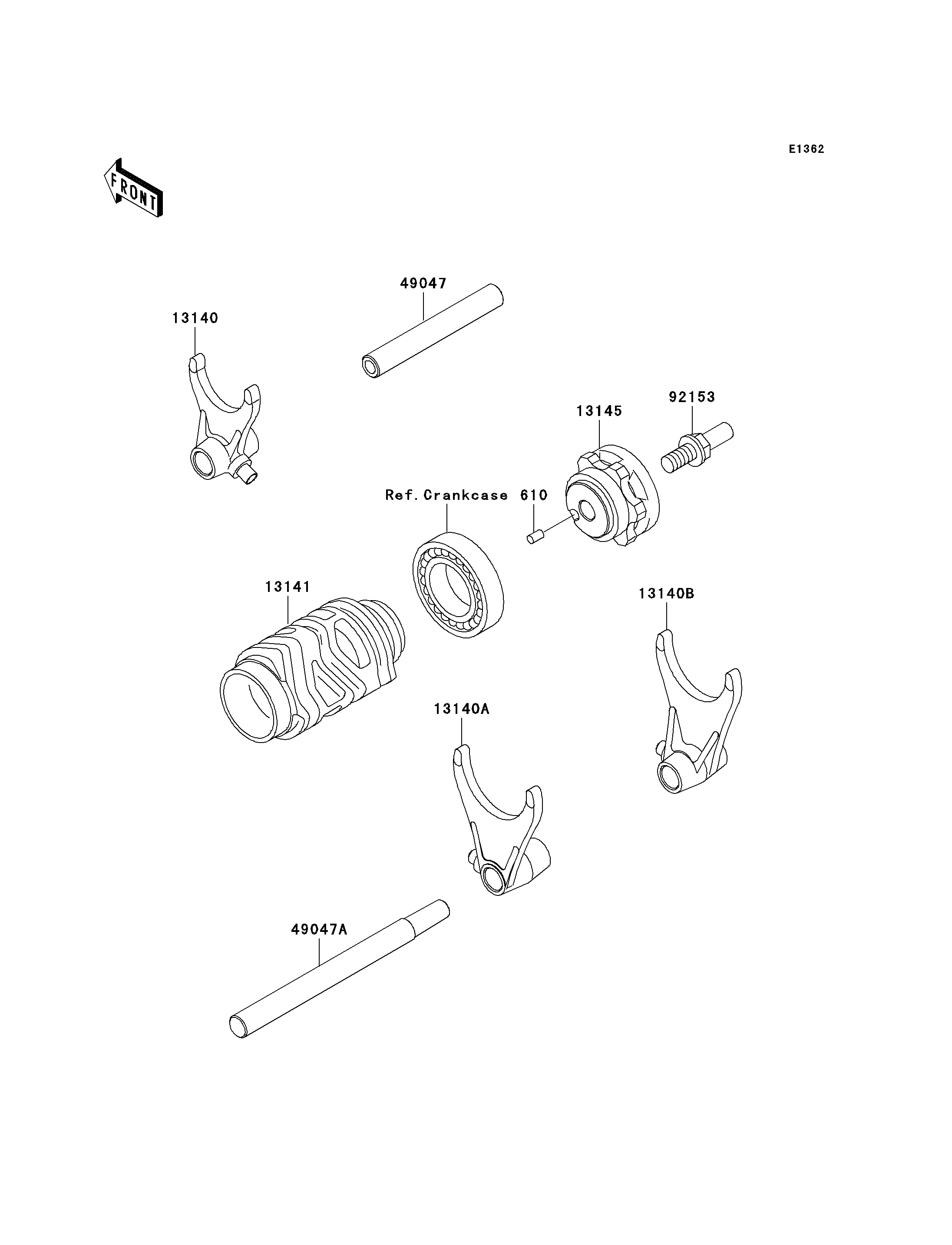

610
13140
13140A
13140B
13141
13145
49047
49047A
92153
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
ROLLER,4X8 610 610A0408 1
FORK-SHIFT,MAIN 13140 13140-1309 1
FORK-SHIFT,OUT L 13140A 13140-1310 1
FORK-SHIFT,OUT R 13140B 13140-1311 1
DRUM-CHANGE 13141 13141-1227 1
CAM-CHANGE DRUM 13145 13145-1094 1
ROD-SHIFT,IN SHORT 49047 49047-1110 1
ROD-SHIFT,OUT LONG 49047A 49047-1111 1
BOLT 92153 92153-1122 1
