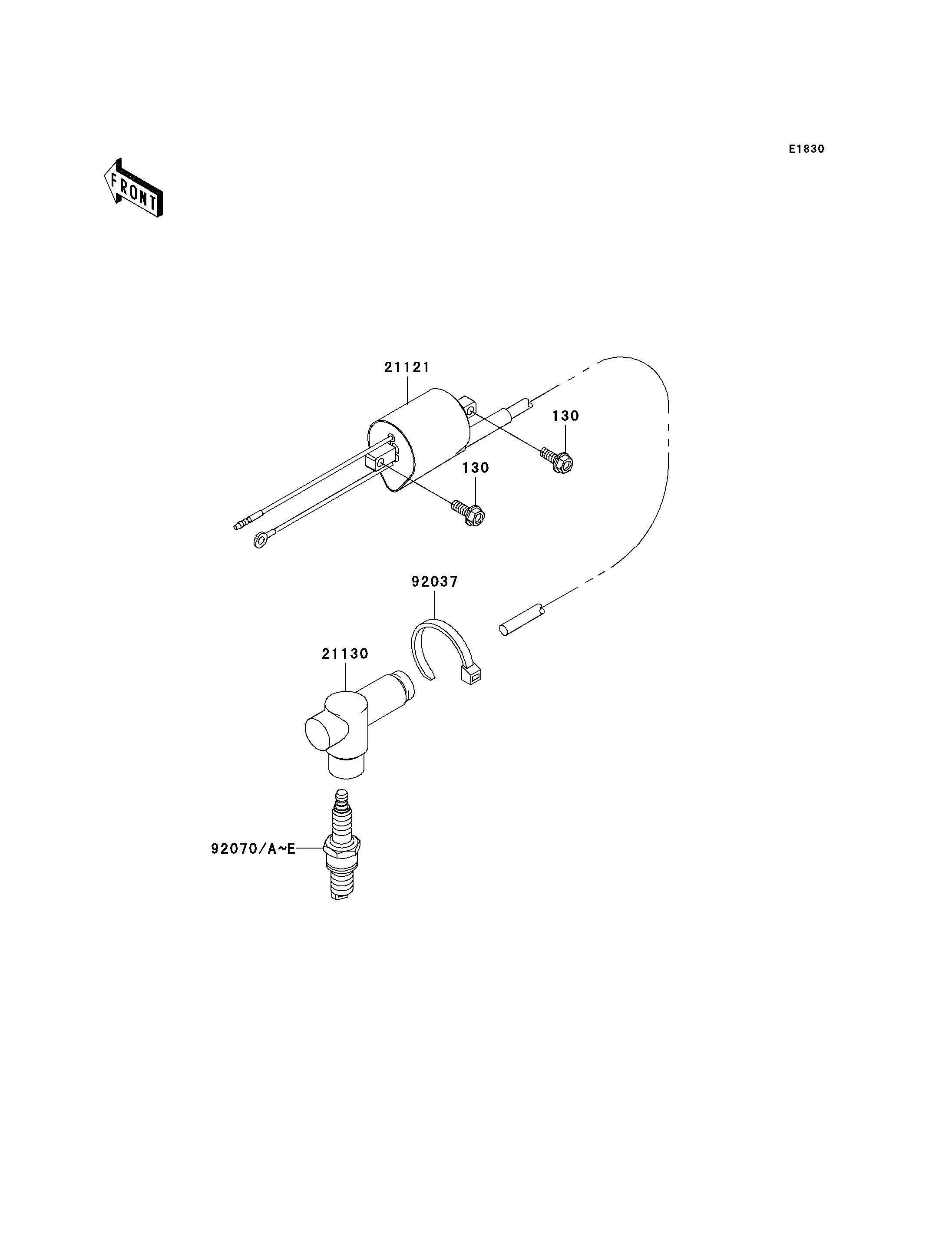

130
130
21121
21130
92037
92070
92070A
92070B
92070C
92070D
92070E
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED 130 130G0518 2
COIL-IGNITION 21121 21121-1312 1
CAP-SPARK PLUG 21130 21130-1077 1
CLAMP 92037 92037-1173 1
PLUG-SPARK,BR8EIX(NGK) 92070 92070-1270 1 (OPTION)
PLUG-SPARK,BR9EIX(NGK) 92070A 92070-1271 1
PLUG-SPARK,BR10EIX(NGK) 92070B 92070-1272 1 (OPTION)
PLUG-SPARK,R7376-8(NGK) 92070C 92070-1275 1 (OPTION)
PLUG-SPARK,R7376-9(NGK) 92070D 92070-1276 1 (OPTION)
PLUG-SPARK,R7376-10(NGK) 92070E 92070-1277 1 (OPTION)
