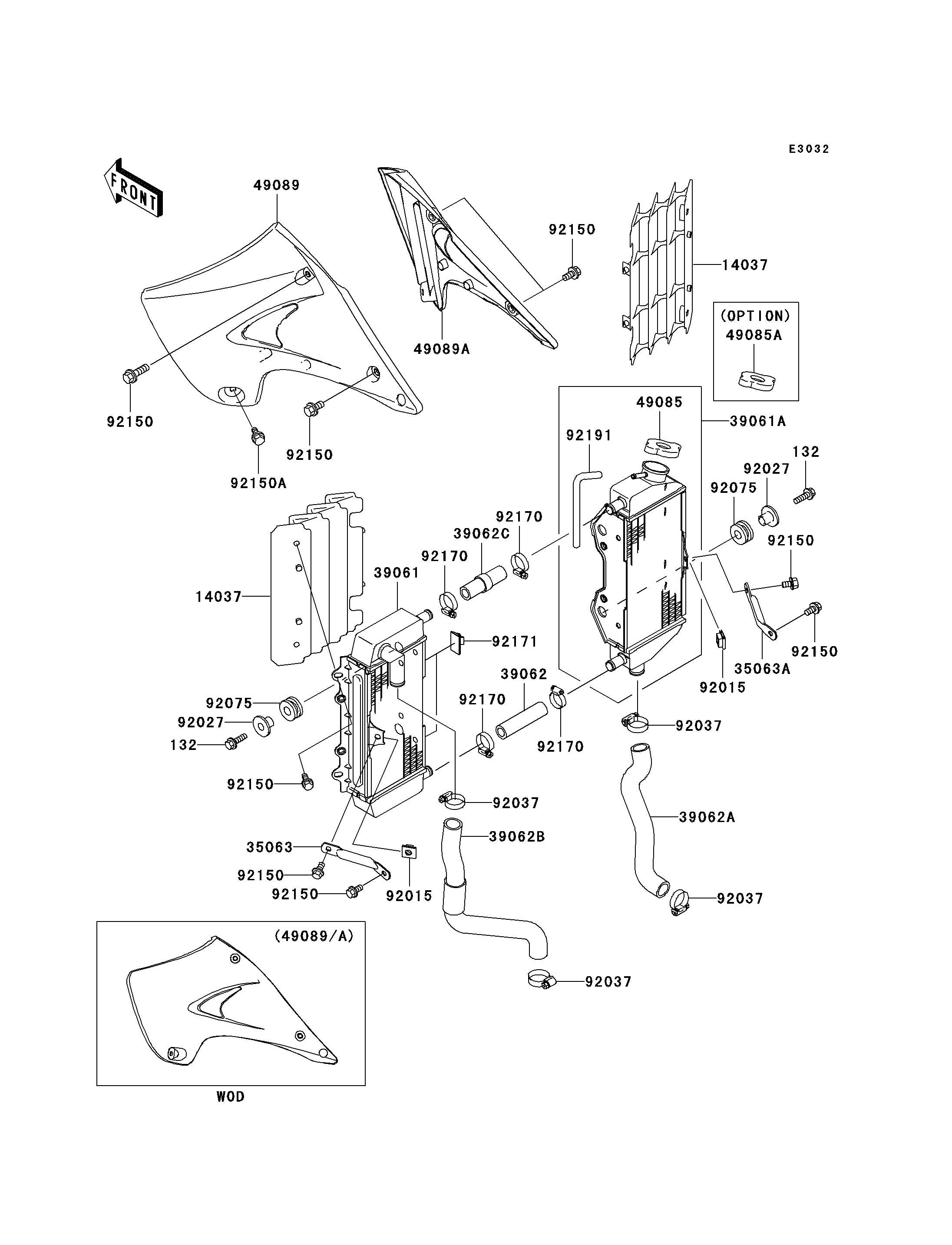

2003 KX125 - Radiator

DOWNLOAD PDF
SELECT A NEW PART
132
132
14037
14037
35063
35063A
39061
39061A
39062
39062A
39062B
39062C
49085
49085A
49089
49089A
92015
92015
92027
92027
92037
92037
92037
92037
92075
92075
92150
92150
92150
92150
92150
92150
92150
92150
92150A
92170
92170
92170
92170
92171
92191
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED-SMALL 132 132G0620 4
SCREEN 14037 14037-1310-RZ 2
STAY,LH 35063 35063-1226 1
STAY,RH 35063A 35063-1227 1
RADIATOR-ASSY,LH 39061 39061-1309 1
RADIATOR-ASSY,RH 39061A 39061-1311 1
HOSE-COOLING,RADIATOR L-R LOW 39062 39062-1898 1
HOSE-COOLING,RADIATOR R PUMP 39062A 39062-1899 1
HOSE-COOLING,HEAD RADIATOR L 39062B 39062-1900 1
HOSE-COOLING,RADIAOR R 39062C 39062-1925 1
CAP-ASSY-PRESSURE,P1.1 49085 49085-1070 1
CAP-ASSY-PRESSURE,P1.6 49085A 49085-1073 1 (OPTION)
SHROUD-ENGINE,LH,L.GREEN 49089 49089-1150-6W 1
SHROUD-ENGINE,RH,L.GREEN 49089A 49089-1151-6W 1
NUT 92015 92015-1487 2
COLLAR,L=11.1 92027 92027-194 4
CLAMP,COOLING HOSE 92037 92037-1589 4
DAMPER 92075 92075-209 4
BOLT,6X12 92150 92150-1435 10
BOLT,6X20 92150A 92150-1801 2
CLAMP 92170 92170-1283 4
CLAMP,10 92171 92171-0012 2
TUBE,6X9X700 92191 92191-1211 1
